CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

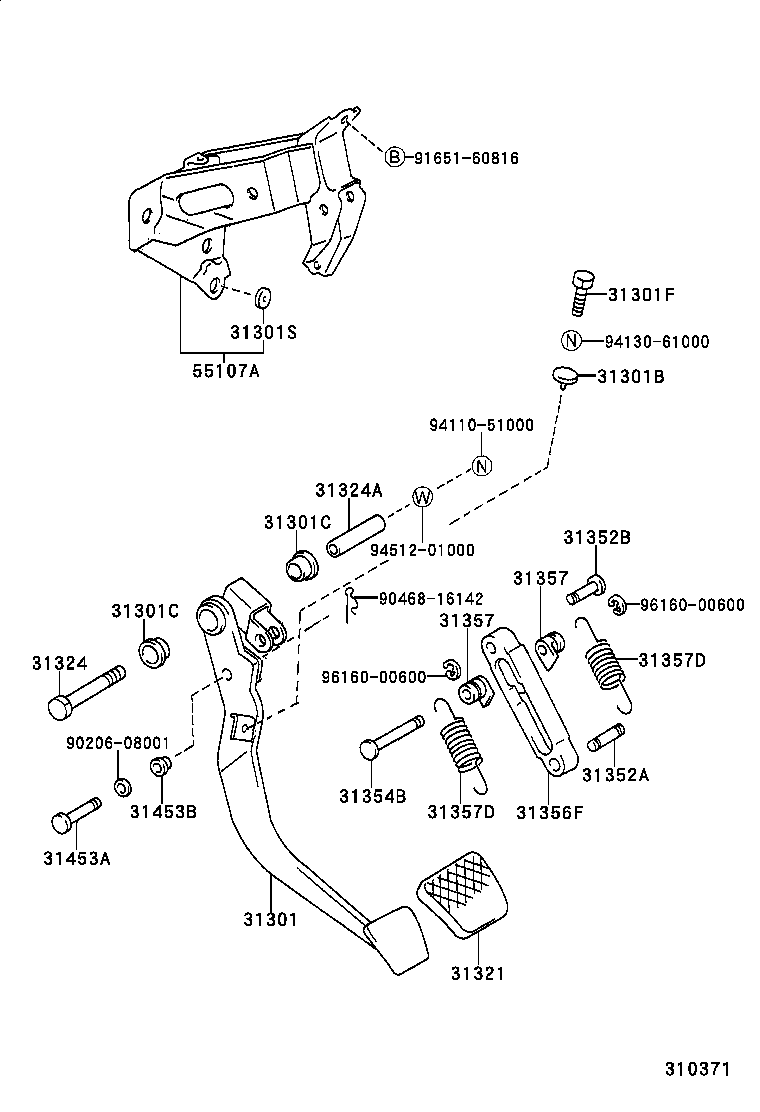

ILLUST NO. 1 OF 2(9710-0007)CDT220,CT220..LHD ; (0007- )AZT220,CDT220..LHD..MTM

Click highlighted areas on diagram

diagram 31301 31301B 31301C 31301C 31301F 31301S 31321 31324 31324A 31352A 31352B 31354B 31356F 31357 31357 31357D 31357D 31453A 31453B 55107A 9020608001 9046816142 9165160816 9411051000 9413061000 9451201000 9616000600 9616000600
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05041

AZT220,CDT220,CT220..LHD..MTM

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31301S - CUSHION, NO.2(FOR CLUTCH PEDAL)
90541-06036

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31324 - SHAFT, CLUTCH PEDAL
90101-10164

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31324A - COLLAR, CLUTCH PEDAL SHAFT
90387-10105

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
31352A - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.1
31352-17010

AZT220,CDT220,CT220..LHD..MTM

 1
31352B - PIN, CLUTCH PEDAL OVER CENTER PLATE, NO.2
31352-20020

AZT220,CDT220,CT220..LHD..MTM

 1
31354B - PIN, W/HOLE(FOR CLUTCH PEDAL SPRING SEAT UPPER)
90249-08214

AZT220,CDT220,CT220..LHD..MTM

 1
31356F - PLATE, CLUTCH PEDAL OVER CENTER, NO.1
31356-17010

AZT220,CDT220,CT220..LHD..MTM

 1
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-20020

AZT220,CDT220,CT220..LHD..MTM

 2
31357 - PLATE, CLUTCH PEDAL OVER CENTER, NO.2
31357-20020

AZT220,CDT220,CT220..LHD..MTM

 2
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90506-20067

AZT220,CDT220,CT220..LHD..MTM

 2
31357D - SPRING, COMPRESSION(FOR OVER CENTER ADJUSTING ROD)
90506-20067

AZT220,CDT220,CT220..LHD..MTM

 2
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90240-08006

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

L=23.5

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..LHD..MTM

 1
Common parts
90206-08001
90468-16142
91651-60816
94110-51000
94130-61000
94512-01000
96160-00600

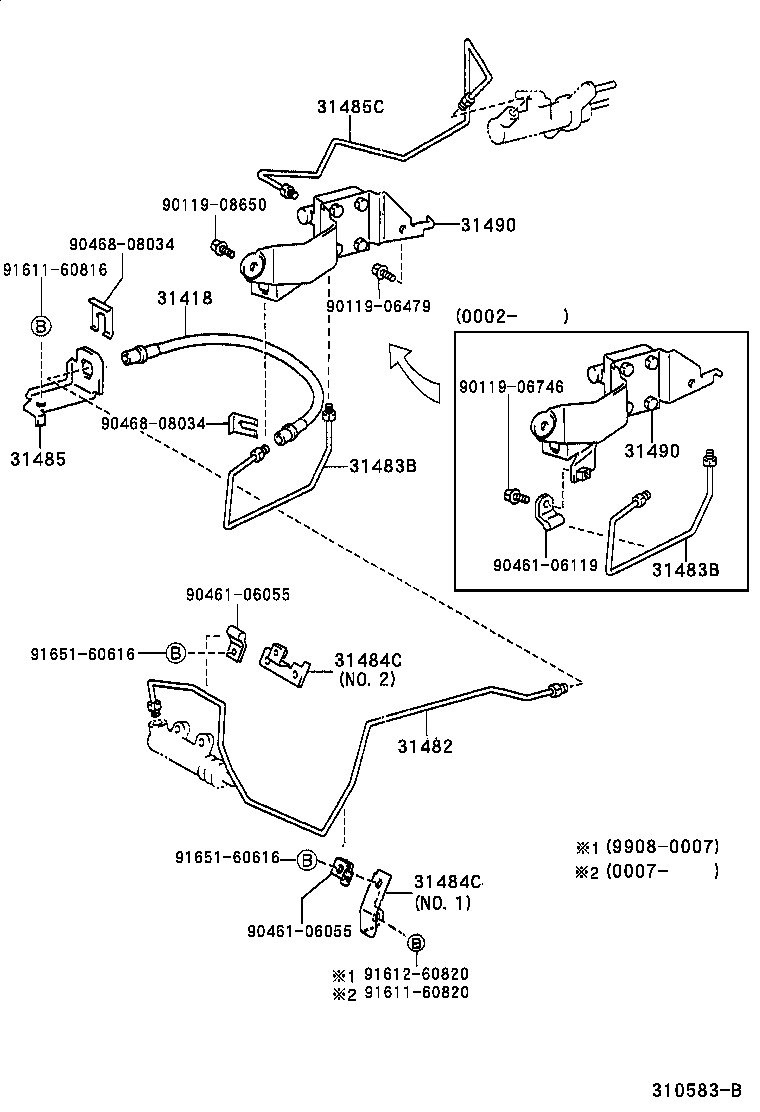

ILLUST NO. 2 OF 2(9908- )CDT220..LHD

Click highlighted areas on diagram

diagram 31418 31482 31483B 31483B 31484C 31484C 31485 31485C 31490 31490 9011906479 9011906746 9011908650 9046106055 9046106055 9046106119 9046808034 9046808034 9161160816 9161160820 9161260820 9165160616 9165160616
Part # Description Qty Price
31418 - HOSE, CLUTCH
90080-93008

AT22#,CDT220,CT220,ST220..MTM

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05070

CDT220

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-05010

CDT220..LHD

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-05010

CDT220..LHD

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460

CDT220

 1
31484-20460

AZT220,CDT220..MTM

NO.2

 1
31484-20320

CDT220

NO.1

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20460

CDT220

 1
31484-20460

AZT220,CDT220..MTM

NO.2

 1
31484-20320

CDT220

NO.1

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31484-20511

CDT220,CT220,ST220..MTM

 1
31485C - TUBE, CLUTCH MASTER CYLINDER TO ACCUMULATOR
31485-05010

CDT220..LHD

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-20010

CDT220..LHD

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-20010

CDT220..LHD

 1
Common parts
90119-06479
90119-06746
90119-08650
90461-06055
90461-06119
90468-08034
91611-60816
91611-60820
91612-60820
91651-60616
