CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

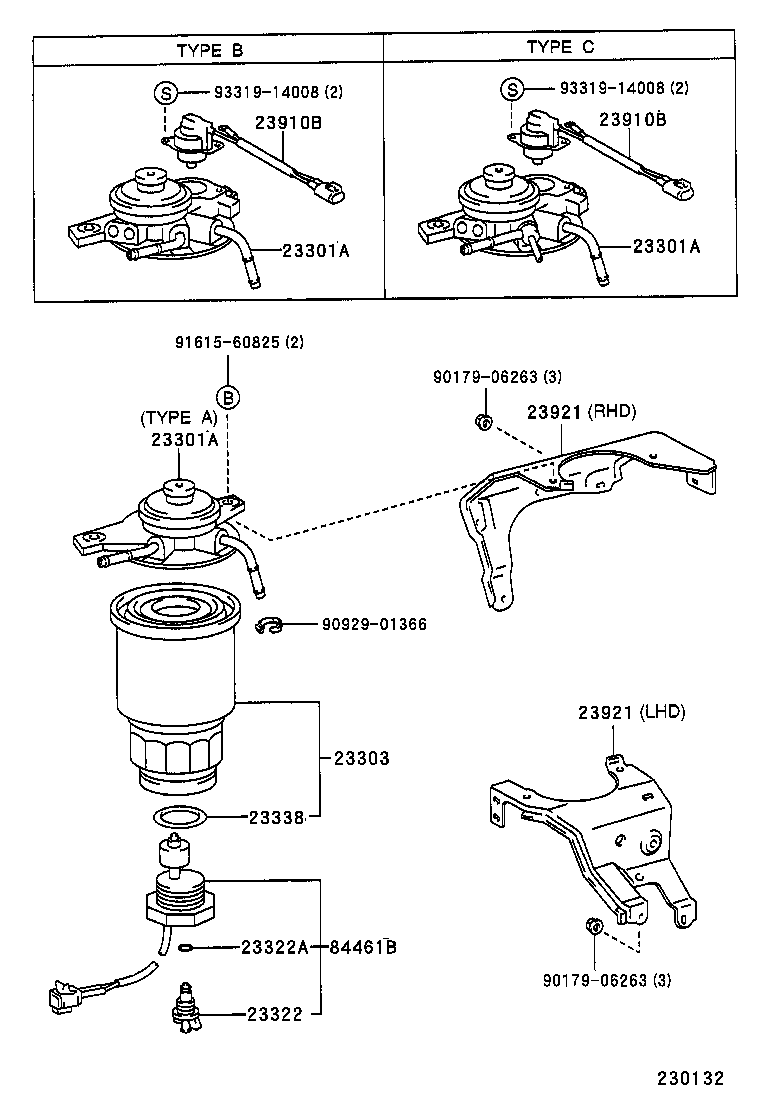

Click highlighted areas on diagram

diagram 23301A 23301A 23301A 23303 23322 23322A 23338 23910B 23910B 23921 23921 84461B 9017906263 9017906263 9092901366 9161560825 9331914008 9331914008
Part # Description Qty Price
23301A - CAP ASSY, FUEL FILTER
23380-27030

1CDFTV..CDT220

TYPE A:REFER TO ILLUSTRATION

 1
23380-27020

1CDFTV..CDT220..LHD

TYPE C:REFER TO ILLUSTRATION

 1
23380-27040

1CDFTV..CDT220

TYPE B:REFER TO ILLUSTRATION

 1
23301A - CAP ASSY, FUEL FILTER
23380-27030

1CDFTV..CDT220

TYPE A:REFER TO ILLUSTRATION

 1
23380-27020

1CDFTV..CDT220..LHD

TYPE C:REFER TO ILLUSTRATION

 1
23380-27040

1CDFTV..CDT220

TYPE B:REFER TO ILLUSTRATION

 1
23301A - CAP ASSY, FUEL FILTER
23380-27030

1CDFTV..CDT220

TYPE A:REFER TO ILLUSTRATION

 1
23380-27020

1CDFTV..CDT220..LHD

TYPE C:REFER TO ILLUSTRATION

 1
23380-27040

1CDFTV..CDT220

TYPE B:REFER TO ILLUSTRATION

 1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23390-64450

1CDFTV,2CT#..CDT220,CT220

 1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23388-64470

1CDFTV..CDT220

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1CDFTV,2CT#..CDT220,CT220

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1CDFTV,2CT#..CDT220,CT220

 1
23910B - HEATER ASSY, FUEL
23910-27010

1CDFTV..CDT220

 1
23910B - HEATER ASSY, FUEL
23910-27010

1CDFTV..CDT220

 1
23921 - SUPPORT, FUEL FILTER
23921-27010

1CDFTV..CDT220..LHD

 1
23921 - SUPPORT, FUEL FILTER
23921-27010

1CDFTV..CDT220..LHD

 1
84461B - SWITCH, LEVEL WARNING
84461-28040

CDT220

 1
Common parts
90179-06263
90929-01366
91615-60825
93319-14008
