CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

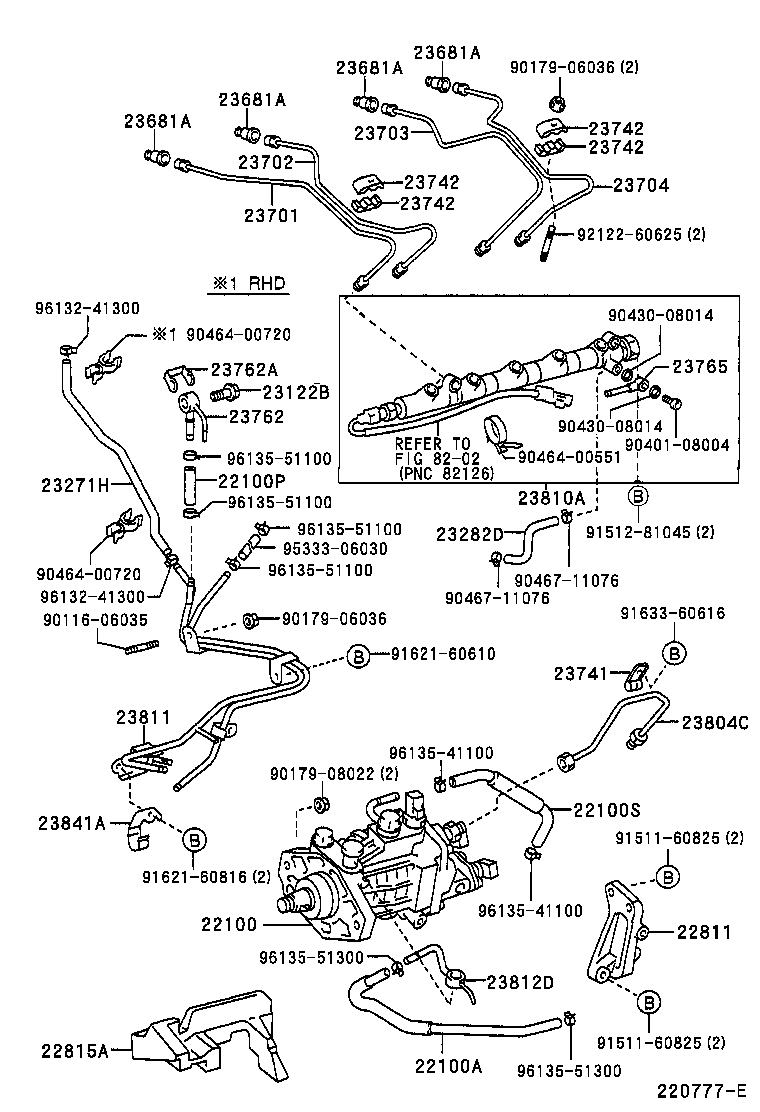

Click highlighted areas on diagram

diagram 22100 22100A 22100P 22100S 22811 22815A 23122B 23271H 23282D 23681A 23681A 23681A 23681A 23701 23702 23703 23704 23741 23742 23742 23742 23742 23762 23762A 23765 23804C 23810A 23811 23812D 23841A 8202 9011606035 9017906036 9017906036 9017908022 9040108004 9043008014 9043008014 9046400551 9046400720 9046400720 9046711076 9046711076 9151160825 9151160825 9151281045 9162160610 9162160816 9163360616 9212260625 9533306030 9613241300 9613241300 9613541100 9613541100 9613551100 9613551100 9613551100 9613551100 9613551300 9613551300
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-27010

1CDFTV..CDT220

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23273-27010

1CDFTV..CDT220

 1
22100P - HOSE, FUEL(FOR FUEL PIPE TO FUEL TUBE)
95333-06020

1CDFTV..CDT220

 1
22100S - HOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)
23274-27010

1CDFTV..CDT220

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-27010

1CDFTV..CDT220

 1
22815A - INSULATOR, INJECTION PUMP
22815-27010

1CDFTV..CDT220

 1
22815-27011

1CDFTV..CDT220

 1
23122B - VALVE, CHECK
23122-27010

1CDFTV..CDT220

 1
23769-30010

1CDFTV..CDT220

 1
23271H - HOSE, FUEL, NO.1
23271-27020

1CDFTV..CDT220

 1
23282D - HOSE, FUEL, NO.4
23282-27010

1CDFTV..CDT220

 1
95333-04020

1CDFTV..CDT220

 1
90445-11152

1CDFTV..CDT220

 1
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT220

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT220

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT220

 4
23681A - SEAL, NOZZLE HOLDER
23681-17010

1CDFTV..CDT220

 4
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-27010

1CDFTV..CDT220

 1
23701-27011

1CDFTV..CDT220

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-27011

1CDFTV..CDT220

 1
23702-27010

1CDFTV..CDT220

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-27010

1CDFTV..CDT220

 1
23703-27011

1CDFTV..CDT220

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-27011

1CDFTV..CDT220

 1
23704-27010

1CDFTV..CDT220

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-27010

1CDFTV..CDT220

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT220

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT220

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT220

 4
23742 - CLAMP, INJECTION PIPE, NO.2
23742-27010

1CDFTV..CDT220

 4
23762 - PIPE, NOZZLE LEAKAGE, NO.2
23762-27010

1CDFTV..CDT220

 1
23762A - GASKET, NOZZLE LEAKAGE PIPE NO.2
90904-30012

1CDFTV..CDT220

 1
23765 - PIPE, NOZZLE LEAKAGE, NO.5
23765-27010

1CDFTV..CDT220

 1
23804C - PIPE SUB-ASSY, FUEL INLET
23804-27011

1CDFTV..CDT220

 1
23804-27010

1CDFTV..CDT220

 1
23810A - RAIL ASSY, COMMON
23810-27011

1CDFTV..CDT220

 1
23810-27021

1CDFTV..CDT220

 1
23810-27010

1CDFTV..CDT220

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-27010

1CDFTV..CDT220

 1
23812D - PIPE, FUEL, NO.2
23812-27010

1CDFTV..CDT220

 1
23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
23841-27010

1CDFTV..CDT220

 1
Common parts
90116-06035
90179-06036
90179-08022
90401-08004
90430-08014
90464-00551
90464-00720
90467-11076
91511-60825
91512-81045
91621-60610
91621-60816
91633-60616
92122-60625
95333-06030
96132-41300
96135-41100
96135-51100
96135-51300
