CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

Click highlighted areas on diagram

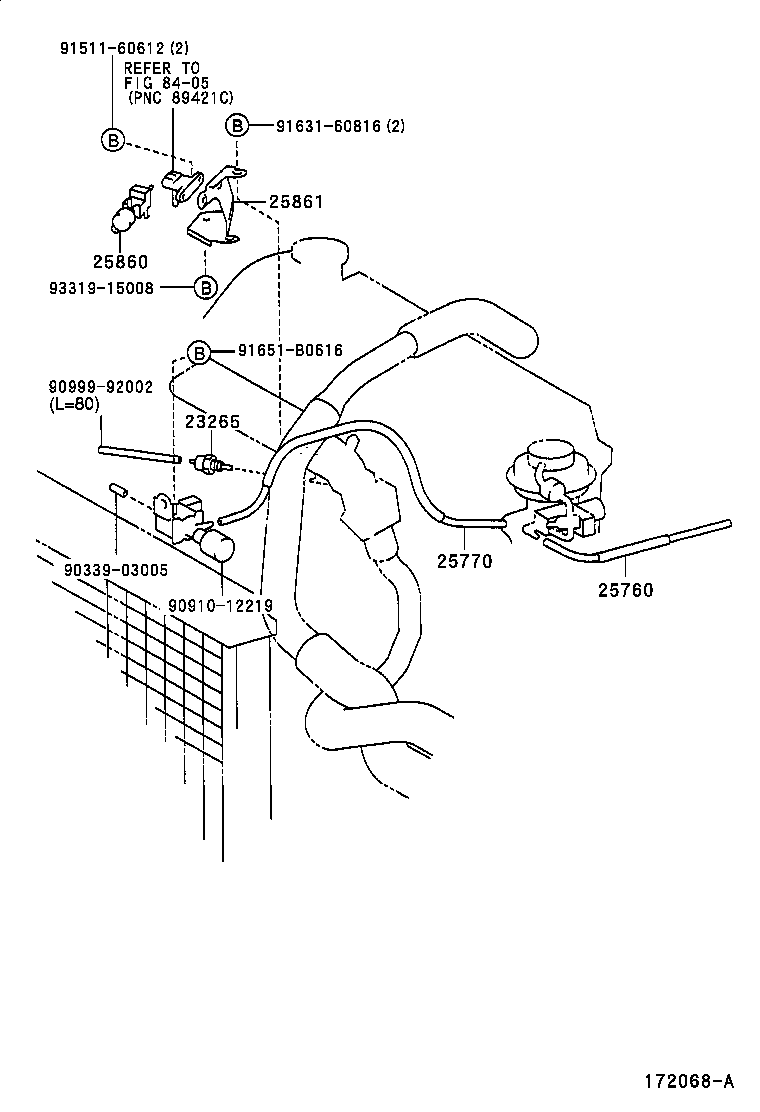

diagram 23265 25760 25770 25860 25861 8405 9033903005 9091012219 9099992002 9151160612 9163160816 91651B0616 9331915008
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11037

1CDFTV..CDT220

 1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-27030

1CDFTV..CDT220

 1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-27010

1CDFTV..CDT220

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-27010

1CDFTV..CDT220

 1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-27010

1CDFTV..CDT220

 1
Common parts
90339-03005
90910-12219
90999-92002
91511-60612
91631-60816
91651-B0616
93319-15008
Linked diagrams
8405
