CDT220L-ALMEYW (1999)
Toyota Avensis
Production
Aug 1999
-
Jan 2003
Engine
1CDFTV
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9908- )1CDFTV

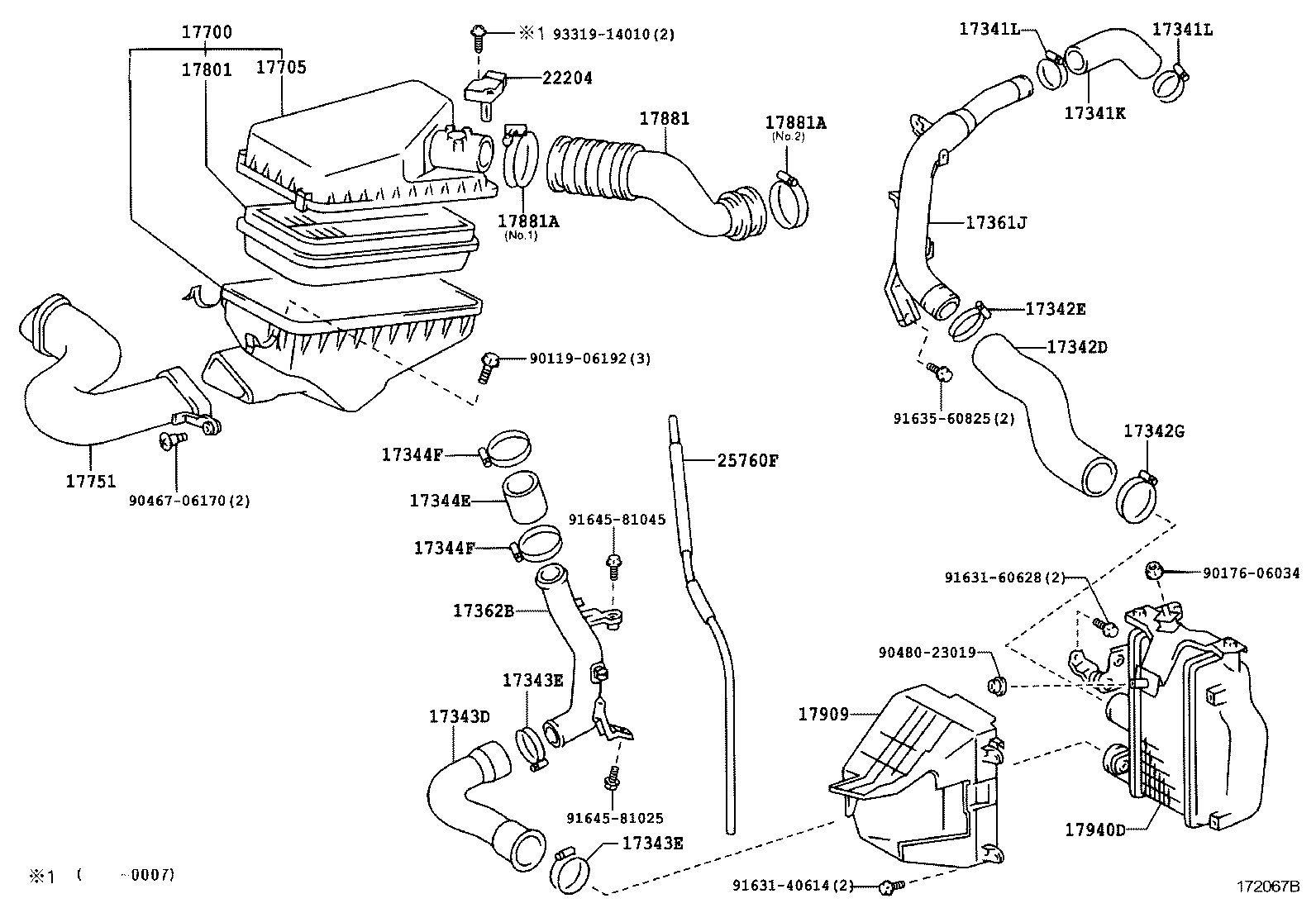

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341K - HOSE, AIR, NO.1(FOR INTERCOOLER) | ||||
| 17341-27010 |
1CDFTV..CDT220 |
1 | ||
| 17341-27060 |
1CDFTV..CDT220 |
1 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50005 |
1CDFTV..CDT220 |
2 | ||
| 17341L - CLAMP, HOSE | ||||
| 90460-50005 |
1CDFTV..CDT220 |
2 | ||
| 17342D - HOSE, AIR, NO.2 | ||||
| 17342-27010 |
1CDFTV..CDT220 |
1 | ||
| 17342E - CLAMP OR CLIP(FOR AIR HOSE, NO.2) | ||||
| 90460-65011 |
1CDFTV..CDT220 |
1 | ||
| 17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER) | ||||
| 90460-73010 |
1CDFTV..CDT220 |
1 | ||
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-27010 |
1CDFTV..CDT220 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73010 |
1CDFTV..CDT220 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90460-73010 |
1CDFTV..CDT220 |
2 | ||
| 17344E - HOSE, AIR, NO.4 | ||||
| 17344-27010 |
1CDFTV..CDT220 |
1 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-73010 |
1CDFTV..CDT220 |
2 | ||
| 17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4) | ||||
| 90460-73010 |
1CDFTV..CDT220 |
2 | ||
| 17361J - TUBE, AIR, NO.1 | ||||
| 17361-27030 |
1CDFTV..CDT220 |
1 | ||
| 17362B - TUBE, AIR, NO.2 | ||||
| 17362-27010 |
1CDFTV..CDT220 |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-27140 |
1CDFTV..CDT220 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-27010 |
1CDFTV..CDT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-0B010 |
1CDFTV..CDT220 |
1 | ||
| 17751-0B011 |
1CDFTV..CDT220 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-27010 |
1CDFTV..CDT220 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17880-27010 |
1CDFTV..CDT220 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1CDFTV..CDT220 NO.1 |
1 | ||
| 90460-57002 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 90460-58003 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10800 |
1CDFTV..CDT220 NO.1 |
1 | ||
| 90460-57002 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 90460-58003 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 17909 - DUCT SUB-ASSY, INTERCOOLER COOLING AIR | ||||
| 17909-0G010 |
1CDFTV..CDT220 |
1 | ||
| 17909-0G020 |
1CDFTV..CDT220 |
1 | ||
| 17940D - INTERCOOLER ASSY | ||||
| 17940-27010 |
1CDFTV..CDT220 |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-27010 |
1CDFTV..CDT220 |
1 | ||
| 25760F - HOSE ASSY, VACUUM TRANSMITTING | ||||
| 25760-27010 |
1CDFTV..CDT220 |
1 | ||
| Common parts | ||||
| 90119-06192 | ||||
| 90176-06034 | ||||
| 90467-06170 | ||||
| 90480-23019 | ||||
| 91631-40614 | ||||
| 91631-60628 | ||||
| 91635-60825 | ||||
| 91645-81025 | ||||
| 91645-81045 | ||||
| 93319-14010 | ||||
