CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

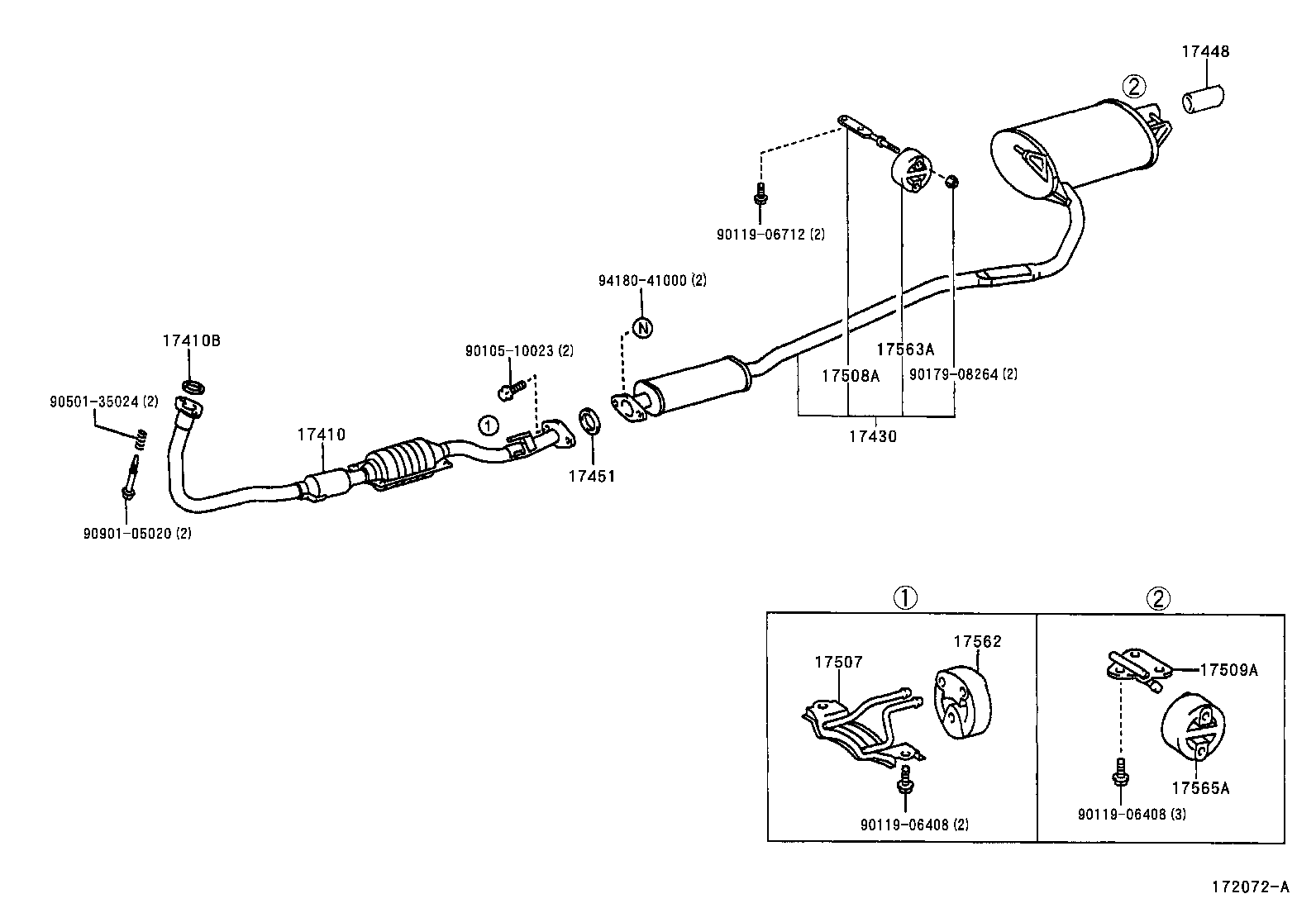

Click highlighted areas on diagram

diagram 17410 17410B 17430 17448 17451 17507 17508A 17509A 17562 17563A 17565A 9010510023 9011906408 9011906408 9011906712 9017908264 9050135024 9090105020 9418041000
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-0B040

1CDFTV..CDT220

*115=TOYOTA/99-03/N

 1
17410B - GASKET, EXHAUST PIPE
17451-0B010

1CDFTV..CDT220

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-0B080

1CDFTV..CDT220

 1
17430-0B080

1CDFTV..CDT220..LB,SED

 1
17448 - BAFFLE, TAIL PIPE
17448-22020

1AZFSE,1CDFTV,3SFE,1ZZFE,3ZZFE..AZT220,CDT220,ST220,ZZT22#..LB,SED

 1
17451 - GASKET, EXHAUST PIPE
90917-06046

1AZFSE,1CDFTV,2CT#,1ZZFE,3ZZFE..AZT220,CDT220,CT220,ZZT22#

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-0B010

1CDFTV,2CT#..CDT220,CT220

 1
17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT
17508-02050

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17508-02050

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
17509A - BRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT
17509-02020

1AZFSE,4AFE,7AFE,1CDFTV,2CT#,3SFE,1ZZFE,3ZZFE..AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
17562 - SUPPORT, EXHAUST PIPE, NO.2
17565-64180

1CDFTV,2CT#..CDT220,CT220

 1
17565-16270

1CDFTV..CDT220

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-16270

1AZFSE,1CDFTV,1ZZFE,3ZZFE..AZT220,CDT220,ZZT22#

 1
17565-16270

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-64180

1CDFTV..CDT220

 1
17565-16270

4AFE,7AFE,1CDFTV,2CT#,3SFE..AT22#,CDT220,CT220,ST220

 1
Common parts
90105-10023
90119-06408
90119-06712
90179-08264
90501-35024
90901-05020
94180-41000
