CDT220L-ALMEYW (1999)
Toyota Avensis

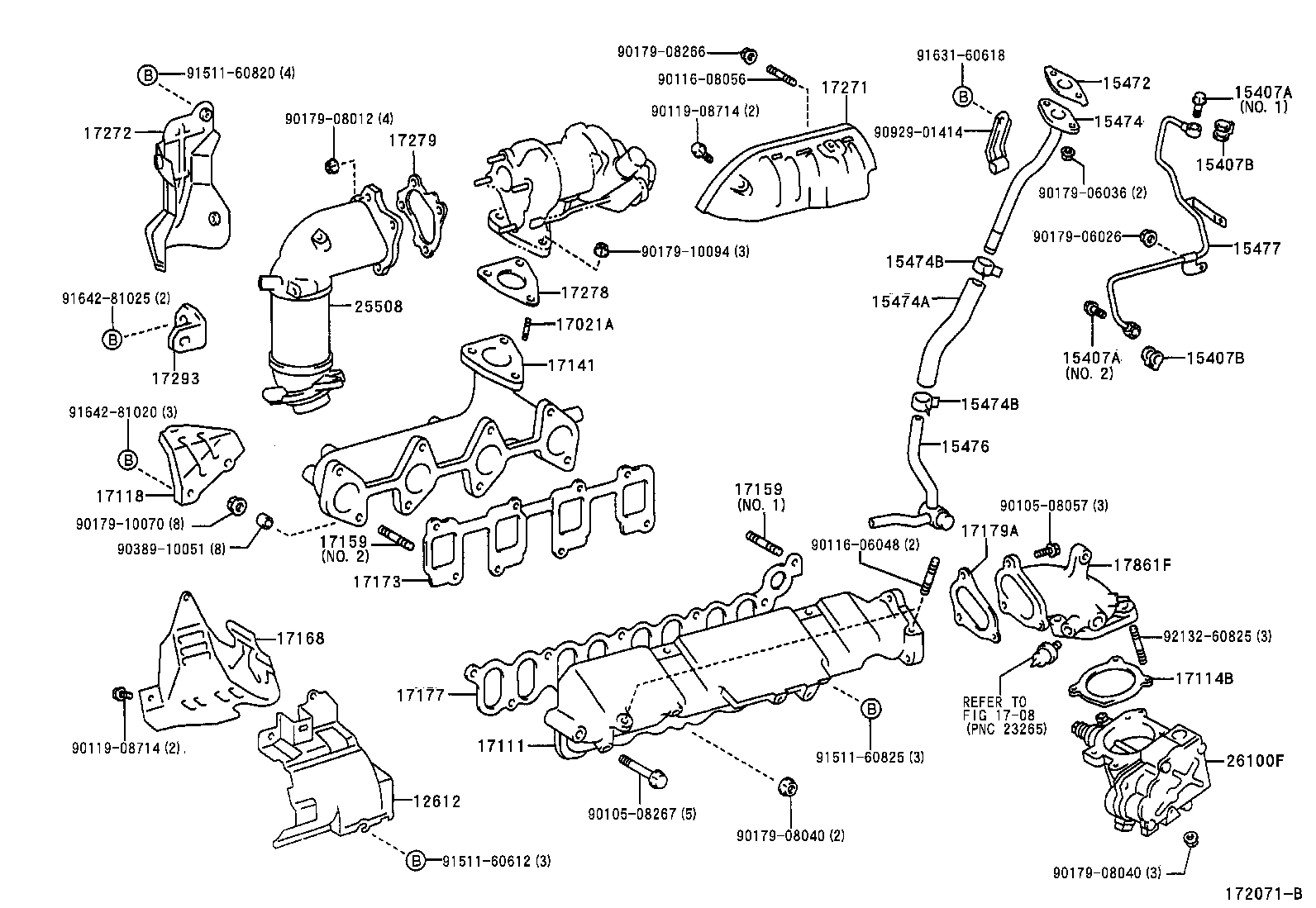

ILLUST NO. 1 OF 2(9908- )1CDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12612 - COVER, ENGINE, NO.2 | ||||
| 12612-27010 |
1CDFTV..CDT220 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10061 |
1CDFTV..CDT220 NO.1 |
1 | ||
| 90401-10063 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-10061 |
1CDFTV..CDT220 NO.1 |
1 | ||
| 90401-10063 |
1CDFTV..CDT220 NO.2 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30011 |
1CDFTV..CDT220 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90904-30011 |
1CDFTV..CDT220 |
2 | ||
| 15472 - GASKET, TURBO OIL OUTLET, NO.1 | ||||
| 15472-27010 |
1CDFTV..CDT220 |
1 | ||
| 15474 - PIPE, TURBO OIL OUTLET | ||||
| 15474-27010 |
1CDFTV..CDT220 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 15491-27010 |
1CDFTV..CDT220 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-20005 |
1CDFTV..CDT220 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-20005 |
1CDFTV..CDT220 |
2 | ||
| 15476 - PIPE, TURBO OIL OUTLET, NO.2 | ||||
| 15476-27010 |
1CDFTV..CDT220 |
1 | ||
| 15477 - PIPE, TURBO OIL INLET | ||||
| 15477-27011 |
1CDFTV..CDT220 |
1 | ||
| 15477-27010 |
1CDFTV..CDT220 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-10148 |
1CDFTV..CDT220 |
3 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17111-27011 |
1CDFTV..CDT220 |
1 | ||
| 17111-27010 |
1CDFTV..CDT220 |
1 | ||
| 17111-27012 |
1CDFTV..CDT220 |
1 | ||
| 17114B - GASKET, INTAKE FLANGE | ||||
| 26171-27010 |
1CDFTV..CDT220 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-27010 |
1CDFTV..CDT220 |
1 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-27020 |
1CDFTV..CDT220 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10024 |
1CDFTV..CDT220 NO.2 |
8 | ||
| 92132-60820 |
1CDFTV..CDT220 NO.1 |
2 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-10024 |
1CDFTV..CDT220 NO.2 |
8 | ||
| 92132-60820 |
1CDFTV..CDT220 NO.1 |
2 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-27010 |
1CDFTV..CDT220 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-27010 |
1CDFTV..CDT220 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-27010 |
1CDFTV..CDT220 |
1 | ||
| 17179A - GASKET, INTAKE MANIFOLD, NO.2 | ||||
| 17179-27010 |
1CDFTV..CDT220 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-27010 |
1CDFTV..CDT220 |
1 | ||
| 17272 - INSULATOR, TURBO, NO.2 | ||||
| 17202-27010 |
1CDFTV..CDT220 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-27010 |
1CDFTV..CDT220 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-27010 |
1CDFTV..CDT220 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-27010 |
1CDFTV..CDT220 |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-27011 |
1CDFTV..CDT220 |
1 | ||
| 17861-27010 |
1CDFTV..CDT220 |
1 | ||
| 25508 - CONVERTER SUB-ASSY, MANIFOLD | ||||
| 25051-27010 |
1CDFTV..CDT220 *115=TOYOTA/99-03/N |
1 | ||
| 26100F - SHUTTER ASSY, INTAKE | ||||
| 26100-27020 |
1CDFTV..CDT220 |
1 | ||
| 26100-27010 |
1CDFTV..CDT220 |
1 | ||
| Common parts | ||||
| 90105-08057 | ||||
| 90105-08267 | ||||
| 90116-06048 | ||||
| 90116-08056 | ||||
| 90119-08714 | ||||
| 90179-06026 | ||||
| 90179-06036 | ||||
| 90179-08012 | ||||
| 90179-08040 | ||||
| 90179-08266 | ||||
| 90179-10070 | ||||
| 90179-10094 | ||||
| 90389-10051 | ||||
| 90929-01414 | ||||
| 91511-60612 | ||||
| 91511-60820 | ||||
| 91511-60825 | ||||
| 91631-60618 | ||||
| 91642-81020 | ||||
| 91642-81025 | ||||
| 92132-60825 | ||||
| Linked diagrams | ||||
| 1708 | ||||
ILLUST NO. 2 OF 2(9908- )1CDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17021 - HOUSING SUB-ASSY, BEARING | ||||
| 17021-27010 |
1CDFTV..CDT220 |
1 | ||
| 17024 - HOUSING SUB-ASSY, COMPRESSOR | ||||
| 17024-27010 |
1CDFTV..CDT220 |
1 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-27010 |
1CDFTV..CDT220 |
1 | ||
| 17229 - BAND, V | ||||
| 17229-27010 |
1CDFTV..CDT220 |
1 | ||
| 17230 - ACTUATOR ASSY, W/BRACKET | ||||
| 17230-29015 |
1CDFTV..CDT220 |
1 | ||
| 17246 - PLATE, COMPRESSOR HOUSING CLAMP | ||||
| 17246-27010 |
1CDFTV..CDT220 |
5 | ||
| 17294 - HOSE, ACTUATOR | ||||
| 90445-09035 |
1CDFTV..CDT220 |
1 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-07001 |
1CDFTV..CDT220 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 90466-07001 |
1CDFTV..CDT220 |
2 | ||
| Common parts | ||||
| 90105-05058 | ||||
| 90148-60052 | ||||
| 90523-06008 | ||||
