CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

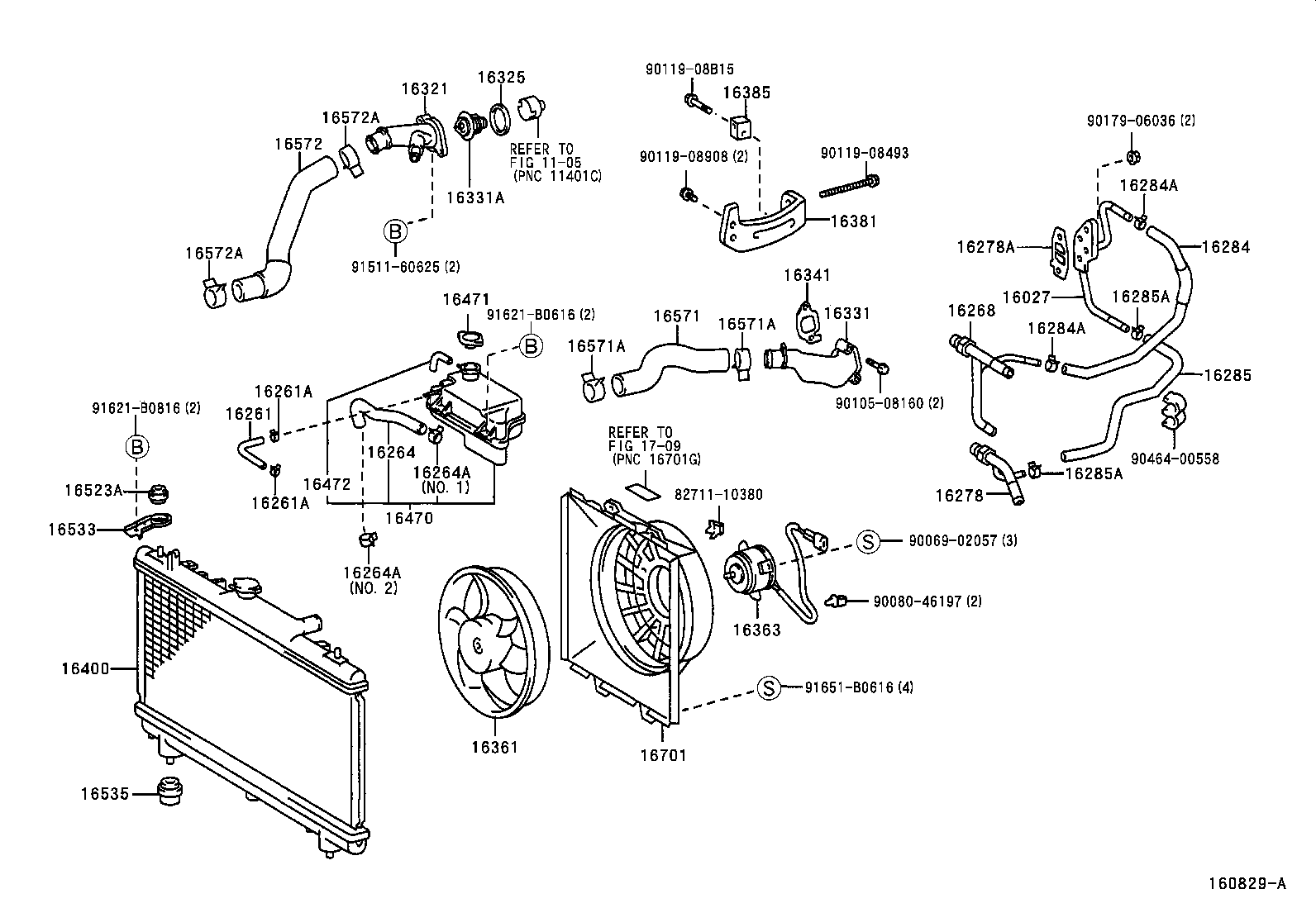

Click highlighted areas on diagram

diagram 1105 16027 16261 16261A 16261A 16264 16264A 16264A 16268 16278 16278A 16284 16284A 16284A 16285 16285A 16285A 16321 16325 16331 16331A 16341 16361 16363 16381 16385 16400 16470 16471 16472 16523A 16533 16535 16571 16571A 16571A 16572 16572A 16572A 16701 1709 8271110380 9006902057 9008046197 9010508160 9011908493 9011908908 9011908B15 9017906036 9046400558 9151160625 91621B0616 91621B0816 91651B0616
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-27010

1CDFTV..CDT220

 1
16261 - HOSE, WATER BY-PASS
16261-27010

1CDFTV..CDT220

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13047

1CDFTV..CDT220

 2
96135-51300

1CDFTV..CDT220

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
90467-13047

1CDFTV..CDT220

 2
96135-51300

1CDFTV..CDT220

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-27010

1CDFTV..CDT220

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-23001

1CDFTV..CDT220

NO.2

 1
90467-21010

1CDFTV..CDT220

NO.2

 1
90467-22004

1CDFTV..CDT220

NO.1

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
90466-23001

1CDFTV..CDT220

NO.2

 1
90467-21010

1CDFTV..CDT220

NO.2

 1
90467-22004

1CDFTV..CDT220

NO.1

 1
16268 - PIPE, WATER BY-PASS, NO.1
16268-27010

1CDFTV..CDT220

 1
16278 - PIPE, WATER BY-PASS, NO.2
16278-27010

1CDFTV..CDT220

 1
16278A - GASKET, WATER BY-PASS
16347-27010

1CDFTV..CDT220

 1
16284 - HOSE, TURBO WATER, NO.1
16284-27010

1CDFTV..CDT220

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13128

1CDFTV,2CT#..CDT220,CT220

 2
90467-13073

1CDFTV..CDT220

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-13128

1CDFTV,2CT#..CDT220,CT220

 2
90467-13073

1CDFTV..CDT220

 2
16285 - HOSE, TURBO WATER, NO.2
16285-27010

1CDFTV..CDT220

 1
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1CDFTV,2CT#..CDT220,CT220

 2
90467-13073

1CDFTV..CDT220

 2
16285A - CLIP(FOR TURBO WATER HOSE NO.2)
90467-13128

1CDFTV,2CT#..CDT220,CT220

 2
90467-13073

1CDFTV..CDT220

 2
16321 - INLET, WATER
16031-27010

1CDFTV..CDT220

 1
16325 - GASKET, WATER INLET HOUSING, NO.1
16325-27010

1CDFTV..CDT220

 1
16331 - OUTLET, WATER
16331-27030

1CDFTV..CDT220

 1
16331A - THERMOSTAT
90916-03123

1CDFTV..CDT220

 1
16341 - GASKET, WATER OUTLET
16341-27010

1CDFTV..CDT220

 1
16361 - FAN
16361-0B010

1CDFTV,2CT#..CDT220,CT220

 1
16363 - MOTOR, COOLING FAN
16363-0B010

1CDFTV,2CT#..CDT220,CT220

 1
16381 - BAR, FAN BELT ADJUSTING
16381-27010

1CDFTV..CDT220

 1
16385 - SLIDER, FAN BELT ADJUSTING
16385-64011

1CDFTV,2CT#..CDT220,CT220

 1
16400 - RADIATOR ASSY
16400-0G010

1CDFTV..CDT220

 1
16470 - TANK ASSY, RADIATOR RESERVE
16480-0G011

1CDFTV..CDT220

 1
16480-0G010

1CDFTV..CDT220

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16401-32020

1CDFTV..CDT220

 1
16472 - HOSE, BREATHER
16472-27010

1CDFTV..CDT220

 1
16535 - SUPPORT, RADIATOR, LOWER
16535-64120

1CDFTV,2CT#..CDT220,CT220

W(AIR CONDITIONER)

 2
90916-04009

1CDFTV,2CT#..CDT220,CT220

 2
16571 - HOSE, RADIATOR, INLET
16571-27020

1CDFTV..CDT220

 1
16571-27021

1CDFTV..CDT220

 1
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41002

1CDFTV..CDT220

 2
90466-41001

1CDFTV..CDT220

 2
16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
90467-41002

1CDFTV..CDT220

 2
90466-41001

1CDFTV..CDT220

 2
16572 - HOSE, RADIATOR, OUTLET
16572-27010

1CDFTV..CDT220

 1
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-41001

1CDFTV..CDT220

 2
90467-41002

1CDFTV..CDT220

 2
16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
90466-41001

1CDFTV..CDT220

 2
90467-41002

1CDFTV..CDT220

 2
16701 - SHROUD SUB-ASSY, FAN
16711-0B010

1CDFTV,2CT#..CDT220,CT220

 1
Common parts
82711-10380
90069-02057
90080-46197
90105-08160
90119-08493
90119-08908
90119-08B15
90179-06036
90464-00558
91511-60625
91621-B0616
91621-B0816
91651-B0616
