CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

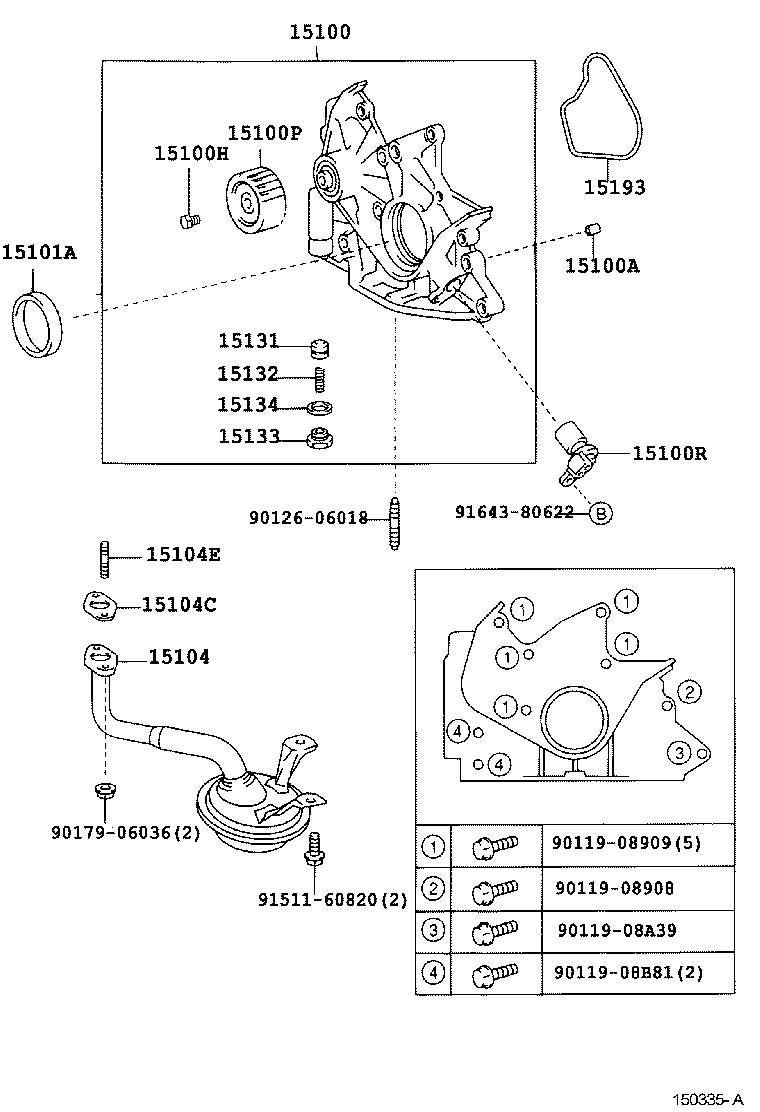

Click highlighted areas on diagram

diagram 15100 15100A 15100H 15100P 15100R 15101A 15104 15104C 15104E 15131 15132 15133 15134 15193 9011908908 9011908909 9011908A39 9011908B81 9012606018 9017906036 9151160820 9164380622
Part # Description Qty Price
15100 - PUMP ASSY, OIL
15100-27010

1CDFTV..CDT220

 1
15100A - PIN, RING(FOR OIL PUMP SET)
90253-11021

1CDFTV,2CT#..CDT220,CT220

 2
15100H - BOLT, SEAL
15189-55010

1CDFTV..CDT220

 1
15100P - PULLEY, OIL PUMP DRIVE SHAFT
13524-64020

1CDFTV..CDT220

 1
15100R - SENSOR, CRANK POSITION
90919-05042

1CDFTV..CDT220

 1
15101A - SEAL(FOR CRANKSHAFT)
90311-45017

1CDFTV..CDT220

 1
15104 - STRAINER SUB-ASSY, OIL
15104-27040

1CDFTV..CDT220

 1
15104-27010

1CDFTV..CDT220

 1
15104E - BOLT, STUD(FOR OIL STRAINER)
90116-06132

1CDFTV,2CT#..CDT220,CT220

 2
Common parts
90119-08908
90119-08909
90119-08A39
90119-08B81
90126-06018
90179-06036
91511-60820
91643-80622
