CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

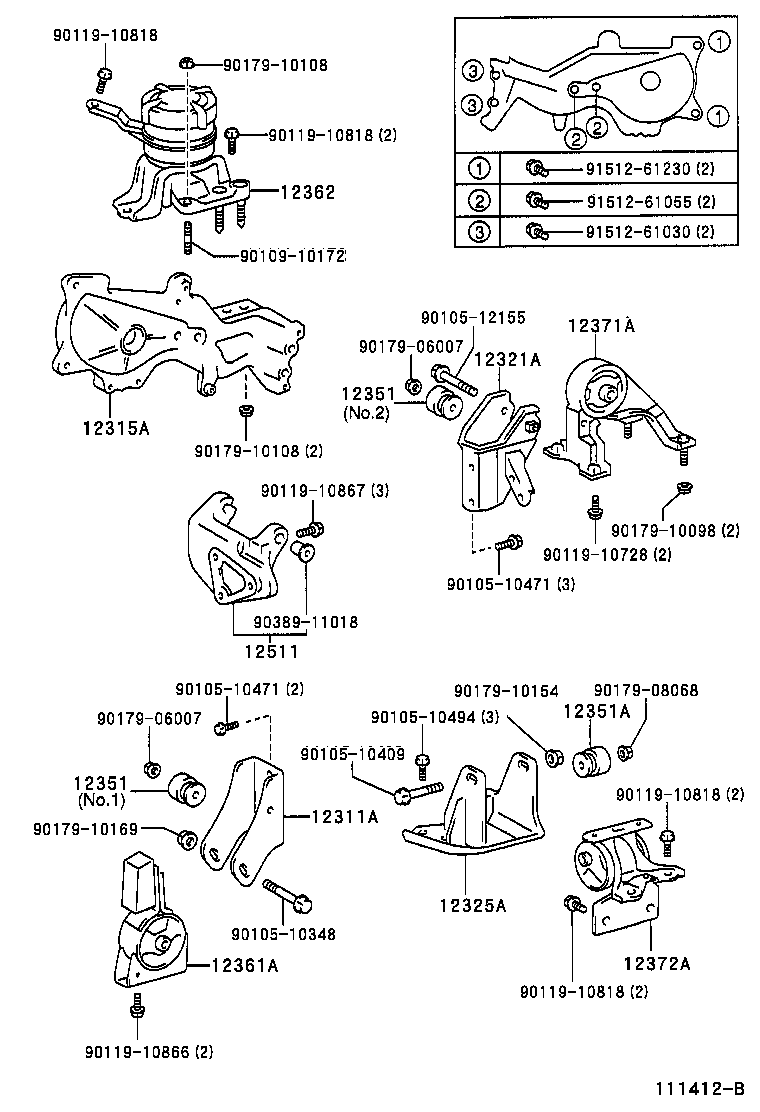

Click highlighted areas on diagram

diagram 12311A 12315A 12321A 12325A 12351 12351 12351A 12361A 12362 12371A 12372A 12511 9010510348 9010510409 9010510471 9010510471 9010510494 9010512155 9010910172 9011910728 9011910818 9011910818 9011910818 9011910818 9011910866 9011910867 9017906007 9017906007 9017908068 9017910098 9017910108 9017910108 9017910154 9017910169 9038911018 9151261030 9151261055 9151261230
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-0B020

1CDFTV..CDT220

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12315-27010

1CDFTV..CDT220

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-0G010

1CDFTV..CDT220

 1
12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12325-64180

1CDFTV..CDT220

 1
12351 - DAMPER, ENGINE MOUNTING
12351-02020

1CDFTV..CDT220

NO.1

 1
12351-02030

1CDFTV..CDT220

NO.2

 1
12351 - DAMPER, ENGINE MOUNTING
12351-02020

1CDFTV..CDT220

NO.1

 1
12351-02030

1CDFTV..CDT220

NO.2

 1
12351A - DAMPER, ENGINE MOUNTING(FOR INSULATOR)
12351-27010

1CDFTV..CDT220

 1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-64380

1CDFTV..CDT220

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12305-64190

1CDFTV..CDT220

 1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-64340

1CDFTV..CDT220

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-64320

1CDFTV..CDT220

 1
12511 - BRACKET, ALTERNATOR, NO.1
12511-64060

1CDFTV,2CT#..CDT220,CT220

 1
Common parts
90105-10348
90105-10409
90105-10471
90105-10494
90105-12155
90109-10172
90119-10728
90119-10818
90119-10866
90119-10867
90179-06007
90179-08068
90179-10098
90179-10108
90179-10154
90179-10169
90389-11018
91512-61030
91512-61055
91512-61230
