CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

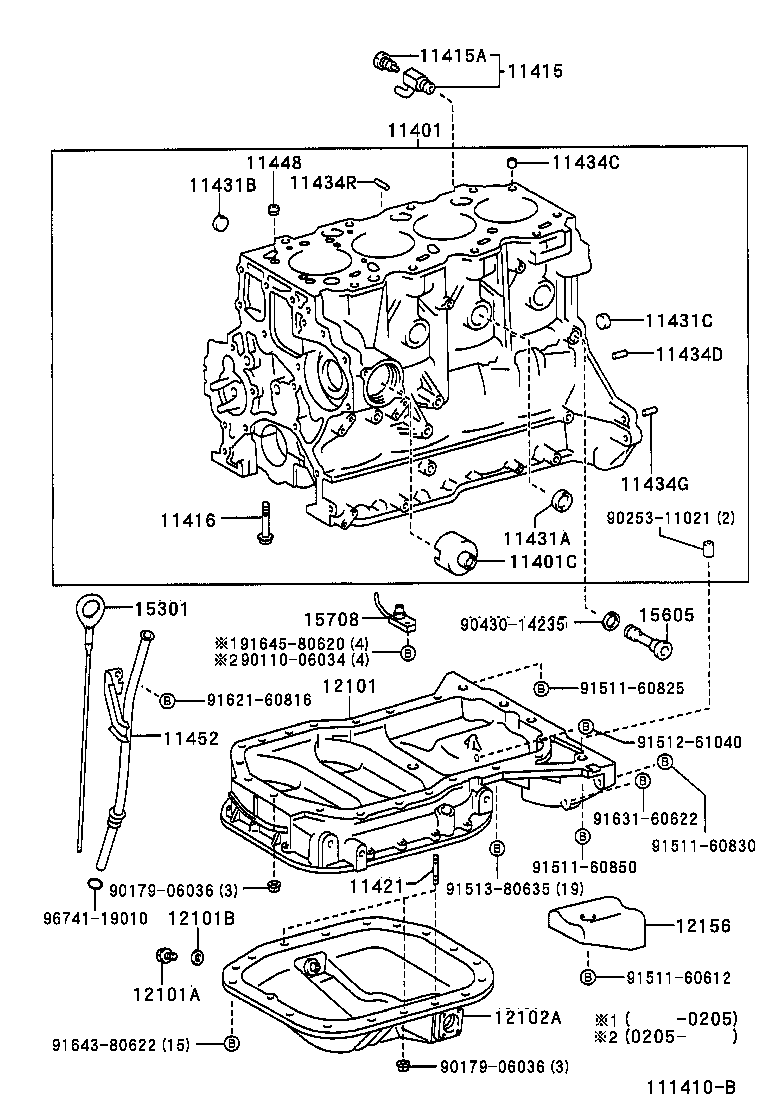

Click highlighted areas on diagram

diagram 11401 11401C 11415 11415A 11416 11421 11431A 11431B 11431C 11434C 11434D 11434G 11434R 11448 11452 12101 12101A 12101B 12102A 12156 15301 15605 15708 9011006034 9017906036 9017906036 9025311021 9043014235 9151160612 9151160825 9151160830 9151160850 9151261040 9151380635 9162160816 9163160622 9164380622 9164580620 9674119010
Part # Description Qty Price
11401 - BLOCK SUB-ASSY, CYLINDER
11401-29665

1CDFTV..CDT220

 1
11401C - FLANGE(FOR WATER BY-PASS)
16353-27010

1CDFTV..CDT220

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09075

1CDFTV..CDT220

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1CDFTV..CDT220

 1
11421 - BOLT, STUD(FOR OIL PAN)
90116-06164

1CDFTV..CDT220

 3
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

1CDFTV,2CT#..CDT220,CT220

 4
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-63000

1CDFTV..CDT220

 3
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-41800

1CDFTV..CDT220

 4
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14004

1CDFTV,2CT#..CDT220,CT220

L=20,OD=14

 2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068

1CDFTV,2CT#..CDT220,CT220

L=11,OD=6

 2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-10113

1CDFTV,2CT#..CDT220,CT220

 2
11434R - PIN, STRAIGHT(FOR DRIVE SHAFT BEARING BRACKET)
90250-06003

1CDFTV,2CT#..CDT220,CT220

 2
11448 - ORIFICE, CYLINDER BLOCK OIL
11448-64010

1CDFTV..CDT220

 1
11452 - GUIDE, OIL LEVEL GAGE
11452-27020

1CDFTV..CDT220

 1
12101 - PAN SUB-ASSY, OIL
12111-27010

1CDFTV..CDT220

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12026

1CDFTV,2CT#..CDT220,CT220

 1
90341-12012

1CDFTV..CDT220

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1CDFTV,2CT#..CDT220,CT220

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-27010

1CDFTV..CDT220

 1
12156 - INSULATOR, OIL PAN
12156-27010

1CDFTV..CDT220

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-27020

1CDFTV..CDT220

 1
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15790-27020

1CDFTV..CDT220

 4
15790-27010

1CDFTV..CDT220

 4
Common parts
90110-06034
90179-06036
90253-11021
90430-14235
91511-60612
91511-60825
91511-60830
91511-60850
91512-61040
91513-80635
91621-60816
91631-60622
91643-80622
91645-80620
96741-19010
