CDT220L-ALMEYW (1999)

Toyota Avensis

Production Aug 1999 - Jan 2003
Engine 1CDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9908- )1CDFTV

Click highlighted areas on diagram

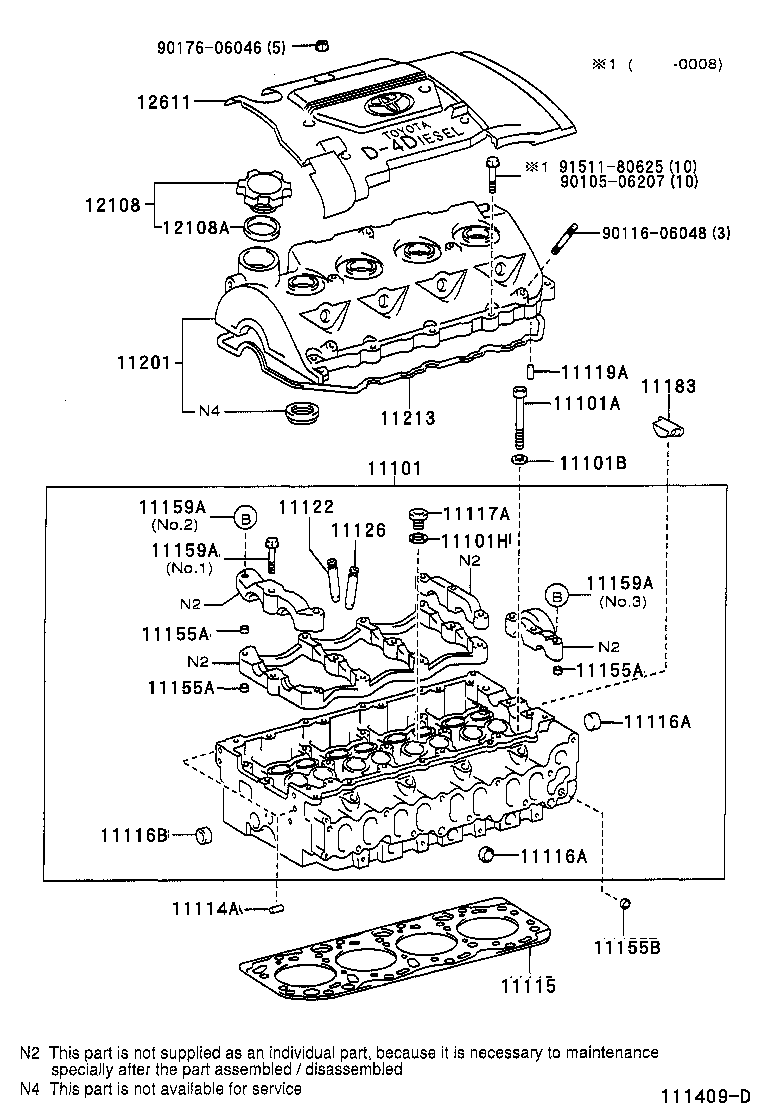

diagram 11101 11101A 11101B 11101H 11114A 11115 11116A 11116A 11116B 11117A 11119A 11122 11126 11155A 11155A 11155A 11155B 11159A 11159A 11159A 11183 11201 11213 12108 12108A 12611 9010506207 9011606048 9017606046 9151180625
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-27030

1CDFTV..CDT220

 1
11101-27032

1CDFTV..CDT220

 1
11101-27033

1CDFTV..CDT220

 1
11101-27031

1CDFTV..CDT220

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02139

1CDFTV..CDT220

*11-1.25PX104-63

 10
90910-02136

1CDFTV..CDT220

*11-1.25PX160-60

 8
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11016

1CDFTV..CDT220

 18
11101H - GASKET(FOR CYLINDER HEAD SCREW PLUG)
90430-14008

1CDFTV..CDT220

 3
11114A - PIN, STRAIGHT
90250-06068

1CDFTV..CDT220

L=11,OD=6

 2
11115 - GASKET, CYLINDER HEAD
11115-27010B0

1CDFTV..CDT220

MARK B

 1
11115-27010A0

1CDFTV..CDT220

MARK A

 1
11115-27010C0

1CDFTV..CDT220

MARK C

 1
11115-27010E0

1CDFTV..CDT220

MARK E

 1
11115-27010D0

1CDFTV..CDT220

MARK D

 1
11116A - PLUG, TIGHT, NO.1
96411-62000

1CDFTV..CDT220

 4
11116A - PLUG, TIGHT, NO.1
96411-62000

1CDFTV..CDT220

 4
11116B - PLUG, TIGHT, NO.2
96411-63000

1CDFTV..CDT220

 1
11117A - PLUG, W/HEAD TAPER SCREW, NO.1
90341-14008

1CDFTV..CDT220

 3
11119A - PIN, STRAIGHT, NO.1
90250-06013

1CDFTV,2CT#..CDT220,CT220

L=16,OD=6

 2
11122 - BUSH, INTAKE VALVE GUIDE
11122-27010

1CDFTV..CDT220

STD

 8
11123-27010

1CDFTV..CDT220

O/S 0.05

 8
11126 - BUSH, EXHAUST VALVE GUIDE
11123-27010

1CDFTV..CDT220

O/S 0.05

 8
11122-27010

1CDFTV..CDT220

STD

 8
11155A - PIN, RING W/HEAD
90253-11021

1CDFTV..CDT220

 12
11155A - PIN, RING W/HEAD
90253-11021

1CDFTV..CDT220

 12
11155A - PIN, RING W/HEAD
90253-11021

1CDFTV..CDT220

 12
11155B - PIN, RING
90253-13008

1CDFTV..CDT220

 2
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76

1CDFTV..CDT220

NO.1

 4
91511-80860

1CDFTV..CDT220

NO.2

 8
91511-80835

1CDFTV..CDT220

NO.3

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76

1CDFTV..CDT220

NO.1

 4
91511-80860

1CDFTV..CDT220

NO.2

 8
91511-80835

1CDFTV..CDT220

NO.3

 3
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08B76

1CDFTV..CDT220

NO.1

 4
91511-80860

1CDFTV..CDT220

NO.2

 8
91511-80835

1CDFTV..CDT220

NO.3

 3
11183 - PLUG, SEMICIRCULAR
11183-64010

1CDFTV,2CT#..CDT220,CT220

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-27010

1CDFTV..CDT220

 1
11201-27012

1CDFTV..CDT220

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-27010

1CDFTV..CDT220

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1CDFTV,2CT#..CDT220,CT220

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37140

1CDFTV,2CT#..CDT220,CT220

 1
12611 - COVER, ENGINE, NO.1
12611-27020

1CDFTV..CDT220

 1
12611-27022

1CDFTV..CDT220

 1
12611-27023

1CDFTV..CDT220

 1
12611-27021

1CDFTV..CDT220

 1
Common parts
90105-06207
90116-06048
90176-06046
91511-80625
