AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0301- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121 9009914122
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

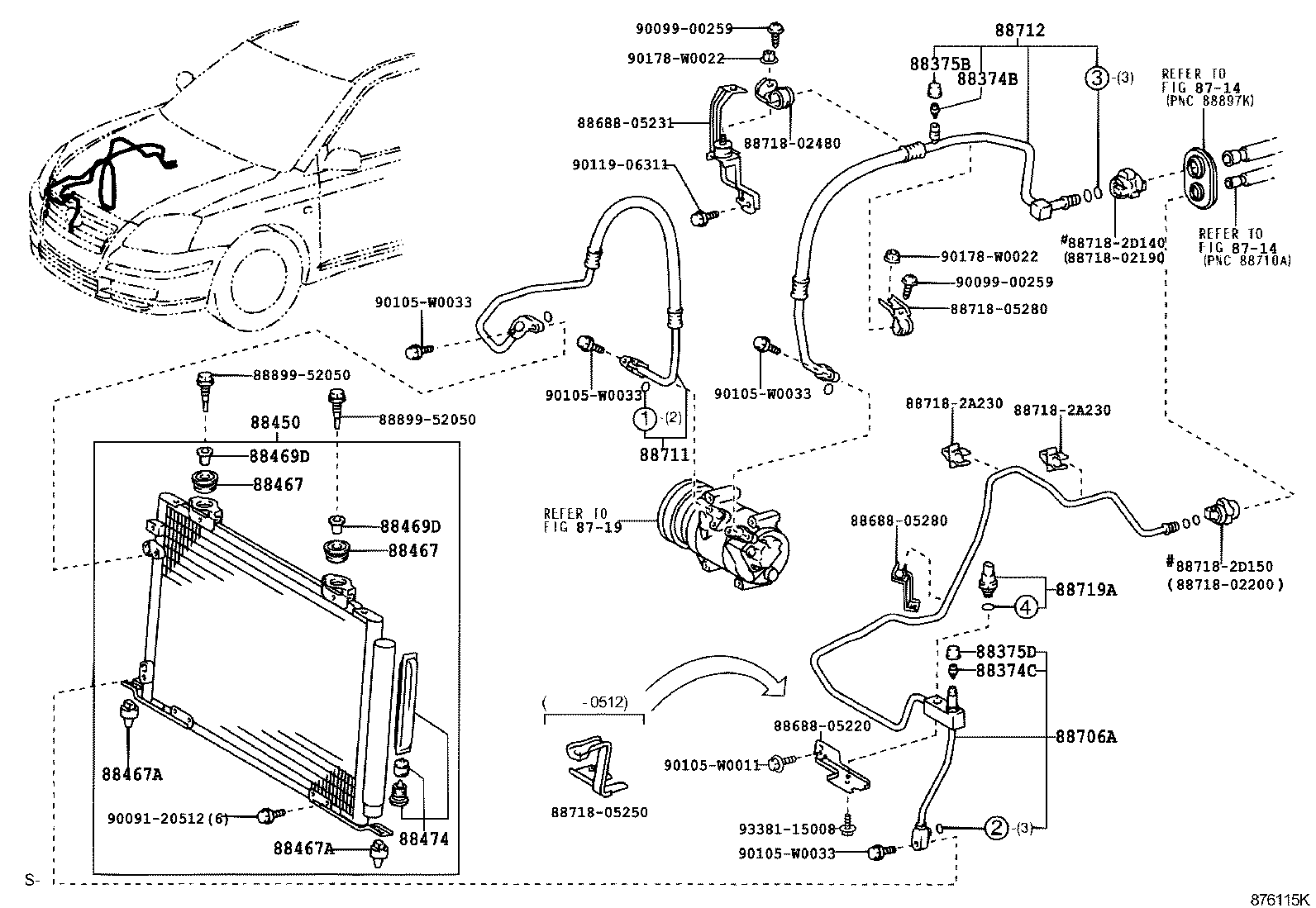

ILLUST NO. 1 OF 2(0301- )AZT25#..LHD

Click highlighted areas on diagram

diagram 8714 8714 8719 88374B 88374C 88375B 88375D 88450 88467 88467 88467A 88467A 88469D 88469D 88474 8868805220 8868805231 8868805280 88706A 88711 88712 8871802190 8871802200 8871802480 8871805250 8871805280 887182A230 887182A230 887182D140 887182D150 88719A 8889952050 8889952050 9009120512 9009900259 9009900259 90105W0011 90105W0033 90105W0033 90105W0033 90105W0033 9011906311 90178W0022 90178W0022 9338115008
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AZT25#,ZZT25#;ADT251,CDT250..RHD

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AZT251;AZT250..SED;ZZT251..RHD..TEC;ADT251,ZZT250..RHD;ZZT251..RHD..5F..ENTRY;AZT250..(LB,WG)..TEC..D4;ZZT251..RHD..LB..4FC..ENTRY;AZT250..LHD..(LB,WG)..ELEGT..D4

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30290

AZT25#,ZZT25#;ADT251,CDT250..RHD

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

ADT251..RHD;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)

 1
88375-30280

ADT251..RHD;AZT25#,ZZT25#..LHD

 1
88450 - CONDENSER ASSY, W/RECEIVER
88450-05121

AZT25#..LHD

 1
88450-05120

AZT25#..LHD

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

AZT25#,ZZT25#

 2
88467-12180

AZT25#,ZZT25#

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

AZT25#,ZZT25#

 2
88467-12180

AZT25#,ZZT25#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-20190

AZT25#

 2
88467-05010

AZT25#

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-20190

AZT25#

 2
88467-05010

AZT25#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

AZT25#,ZZT25#

 2
88469-52010

AZT25#,ZZT25#

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

AZT25#,ZZT25#

 2
88469-52010

AZT25#,ZZT25#

 2
88474 - DRYER, COOLER
88474-17010

AZT25#,ZZT25#

 1
88474-17010

AZT25#,ZZT25#

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88716-05400

AZT25#..LHD

 1
88716-05401

AZT25#..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88703-05250

AZT25#..LHD

 1
88703-05251

AZT25#..LHD

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-05300

AZT25#..LHD

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-40020

ADT251;AZT25#,ZZT25#..LHD

 1
88719-40020

ADT251;AZT251,ZZT250..LHD;AZT250..LHD..WG..D4;AZT250..LHD..(LB,SED);ZZT251..LHD..5F..ENTRY;ZZT251..LHD..(ELEGT,TEC)

 1
Common parts
88688-05220
88688-05231
88688-05280
88718-02190
88718-02200
88718-02480
88718-05250
88718-05280
88718-2A230
88718-2D140
88718-2D150
88899-52050
90091-20512
90099-00259
90105-W0011
90105-W0033
90119-06311
90178-W0022
93381-15008
Linked diagrams
8714
8719
