AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )SED

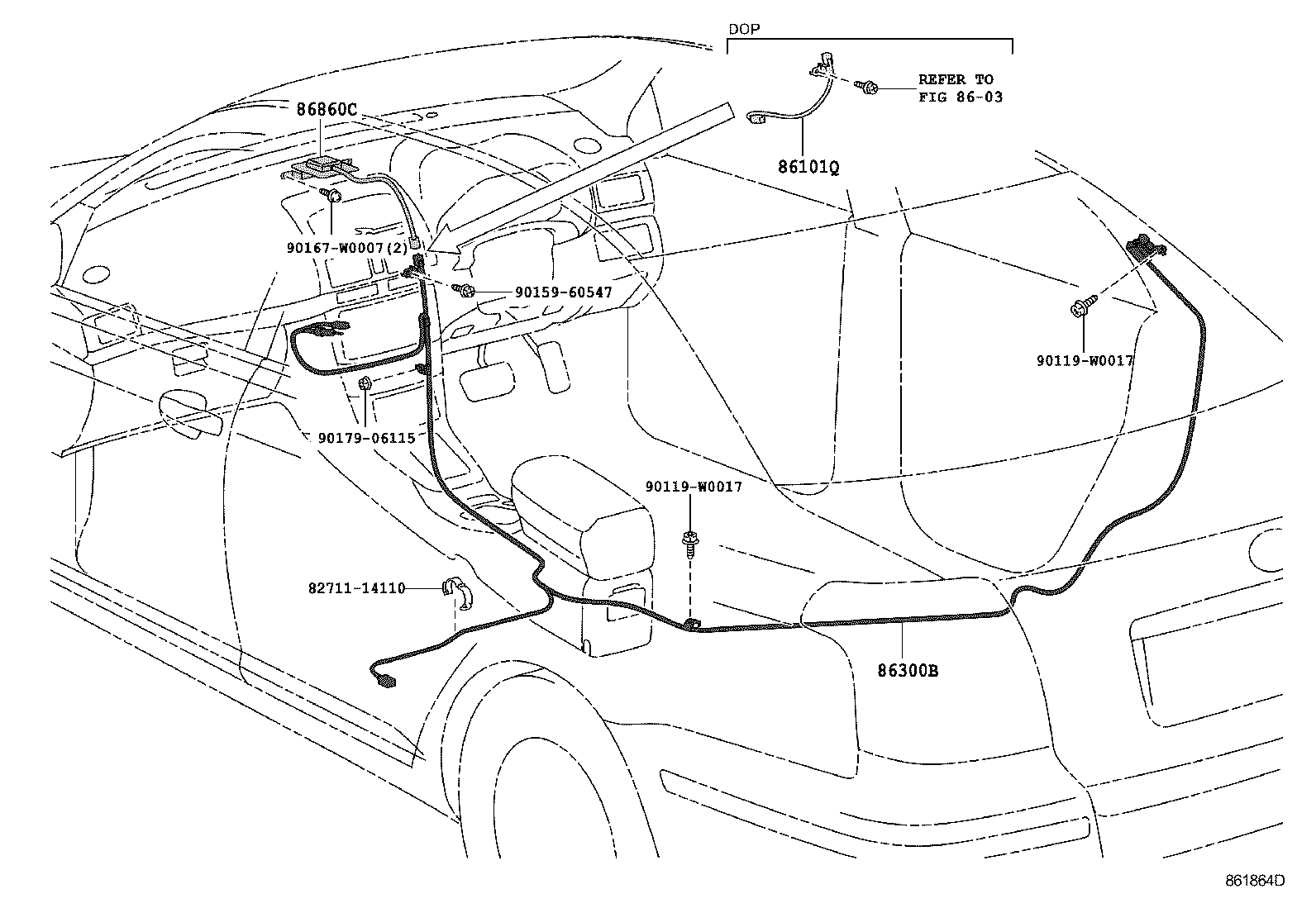

Click highlighted areas on diagram

diagram 8271114110 8603 86101Q 86300B 86860C 90119W0017 90119W0017 9015960547 90167W0007 9017906115
Part # Description Qty Price
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-05130

CDT250..LHD..SED..DCR;ADT251,AZT25#,ZZT25#..LHD..SED

 1
86300-05140

CDT250..LHD..SED..DCR;ADT251,AZT25#,ZZT25#..LHD..SED

ARROW NAVI

 1
86300-05140

CDT250,ZZT251..LHD..SED..(ELEGT,TEC)..(DCR,HTWC);ADT251,AZT25#..LHD..SED..(ELEGT,TEC)..(D4,DCR,DCRL)

MAP NAVI

 1
86860C - ANTENNA ASSY, NAVIGATION
86860-20070

CDT250..DCR;ADT251,AZT25#,ZZT25#

ARROW NAVI

 1
86860-20070

AZT250..LB,WG;ZZT251..ELEGT;AZT250..SED..D4;ZZT251..LHD..TEC;ADT251,AZT251..ELEGT,TEC;CDT250..(ELEGT,TEC)..DCR

MAP NAVI

 1
Common parts
82711-14110
90119-W0017
90159-60547
90167-W0007
90179-06115
Linked diagrams
8603
