AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0309- )AZT251

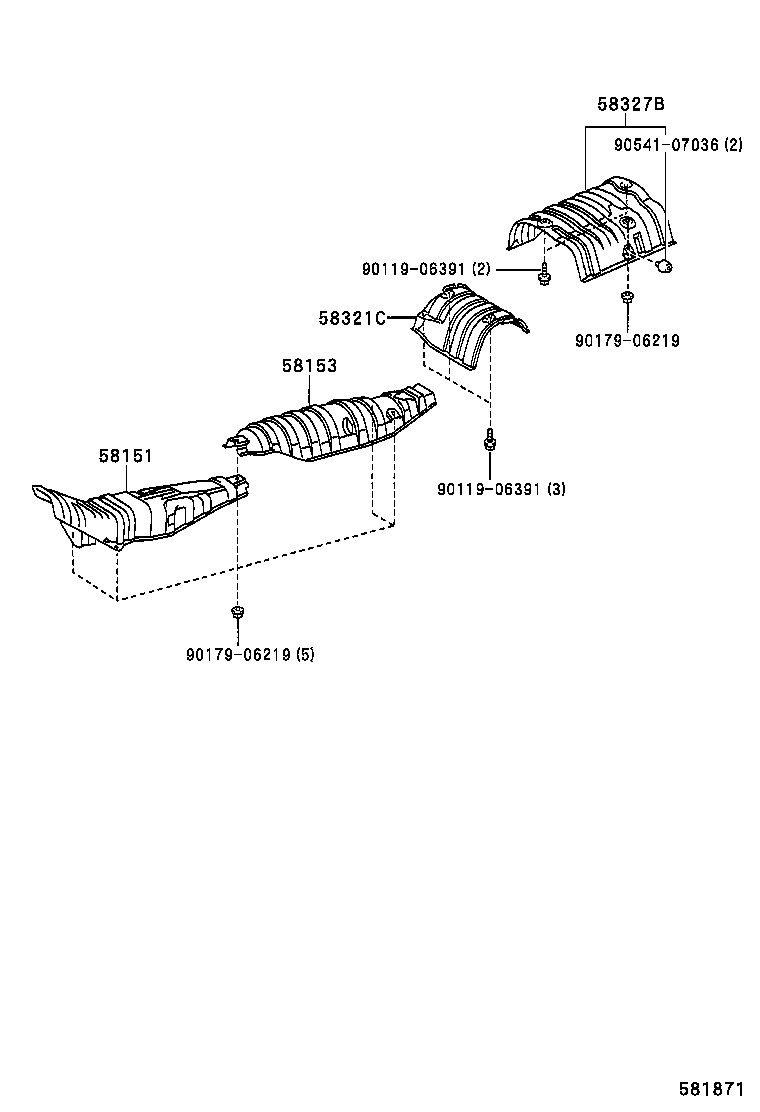

Click highlighted areas on diagram

diagram 58151 58153 58321C 58327B 9011906391 9011906391 9017906219 9017906219 9054107036
Part # Description Qty Price
58151 - INSULATOR, FRONT FLOOR HEAT, NO.1
58041-20060

AZT251;AZT250..LHD;AZT250..RHD..(LB,WG)..ELEGT

HEAD LAMP-DISCHARGE

 1
58151-20190

AZT25#

 1
58153 - INSULATOR, FRONT FLOOR HEAT, NO.2
58153-05030

AZT25#,ZZT25#

 1
58321C - INSULATOR, REAR FLOOR HEAT, FRONT
58321-05010

AZT251

 1
58327B - INSULATOR, MAIN MUFFLER HEAT
58327-20150

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90119-06391
90179-06219
90541-07036
