AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )AZT25#

Click highlighted areas on diagram

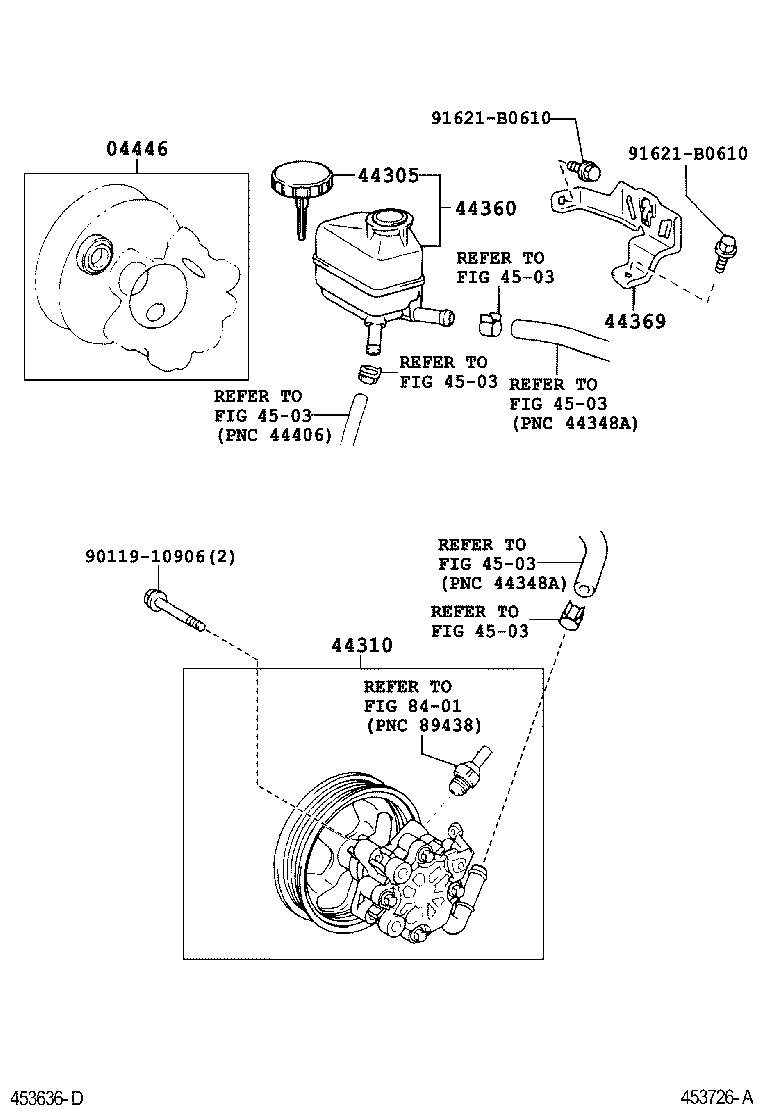

diagram 04446 44305 44310 44360 44369 4503 4503 4503 4503 4503 4503 8401 9011910906 91621B0610 91621B0610
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-02050

ADT251,AZT25#,CDT250

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20041

AZT25#

 1
44310 - PUMP ASSY, VANE
44310-05090

AZT25#

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20150

AZT25#

 1
44369 - BRACKET, OIL RESERVOIR, NO.1
44390-20060

AZT25#

 1
Common parts
90119-10906
91621-B0610
Linked diagrams
4503
8401
