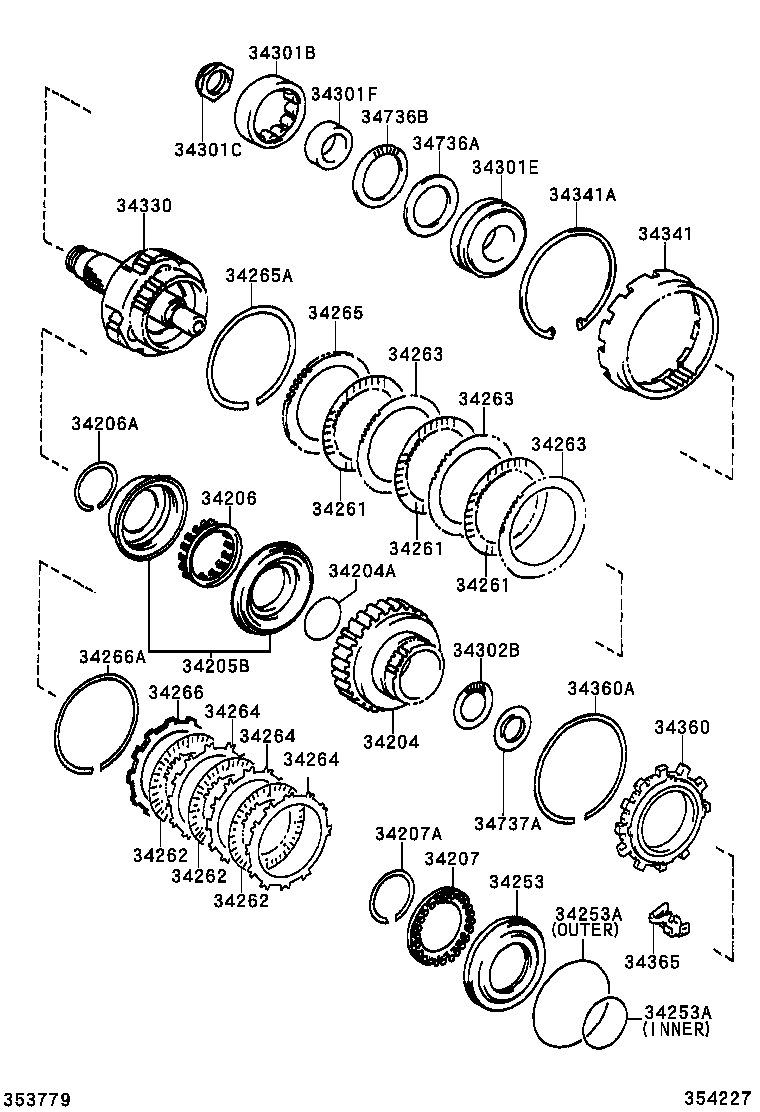

Toyota Avensis AZT251 OVERDRIVE GEAR (ATM)

Part #	Description	Period	Qty
34204 - DRUM SUB-ASSY, UNDERDRIVE CLUTCH
34204-28030	AZT251	09/2003 - 04/2006	1
34204A - RING, O (FOR UNDERDRIVE CLUTCH DRUM)
90301-49007	AZT251	09/2003 - 04/2006	1
34205B - PISTON SET, UNDERDRIVE CLUTCH
34205-28010	AZT251	09/2003 - 04/2006	1
34206 - SPRING SUB-ASSY, UNDERDRIVE CLUTCH RETURN
34206-21010	AZT251	09/2003 - 04/2006	1
34206A - RING, SHAFT SNAP (FOR UNDERDRIVE RETURN SPRING)
90520-50009	AZT251	09/2003 - 04/2006	1
34207 - SPRING SUB-ASSY, UNDERDRIVE BRAKE RETURN
34207-21010	AZT25#..ATM	01/2003 - 04/2006	1
34207A - RING, SNAP (FOR UNDERDRIVE BRAKE RETURN SPRING)
90520-59004	AZT25#..ATM	01/2003 - 04/2006	1
34253 - PISTON, UNDERDRIVE BRAKE
34253-28020	AZT251	09/2003 - 04/2006	1
34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON)
90301-62007	AZT25#..ATM INNER	01/2003 - 04/2006	1
90301-99084	AZT251 OUTER	09/2003 - 04/2006	1
34253A - RING, O (FOR UNDERDRIVE BRAKE PISTON)
90301-62007	AZT25#..ATM INNER	01/2003 - 04/2006	1
90301-99084	AZT251 OUTER	09/2003 - 04/2006	1
34261 - DISC, UNDERDRIVE CLUTCH, NO.1
34261-28010	AZT251	09/2003 - 04/2006	3
34261 - DISC, UNDERDRIVE CLUTCH, NO.1
34261-28010	AZT251	09/2003 - 04/2006	3
34261 - DISC, UNDERDRIVE CLUTCH, NO.1
34261-28010	AZT251	09/2003 - 04/2006	3
34262 - DISC, UNDERDRIVE CLUTCH, NO.2
34262-33010	AZT251	09/2003 - 04/2006	3
34262 - DISC, UNDERDRIVE CLUTCH, NO.2
34262-33010	AZT251	09/2003 - 04/2006	3
34262 - DISC, UNDERDRIVE CLUTCH, NO.2
34262-33010	AZT251	09/2003 - 04/2006	3
34263 - PLATE, UNDERDRIVE CLUTCH, NO.1
34263-28010	AZT251	09/2003 - 04/2006	3
34263 - PLATE, UNDERDRIVE CLUTCH, NO.1
34263-28010	AZT251	09/2003 - 04/2006	3
34263 - PLATE, UNDERDRIVE CLUTCH, NO.1
34263-28010	AZT251	09/2003 - 04/2006	3
34264 - PLATE, UNDERDRIVE CLUTCH, NO.2
34264-28010	AZT251	09/2003 - 04/2006	3
34264 - PLATE, UNDERDRIVE CLUTCH, NO.2
34264-28010	AZT251	09/2003 - 04/2006	3
34264 - PLATE, UNDERDRIVE CLUTCH, NO.2
34264-28010	AZT251	09/2003 - 04/2006	3
34265 - FLANGE, UNDERDRIVE CLUTCH, NO.1
34265-21020	AZT251 T=3.0 MARK 1	09/2003 - 04/2006	1
34265-21030	AZT251 T=3.2 MARK 2	09/2003 - 04/2006	1
34265-33010	AZT251 T=3.1 MARK 4	09/2003 - 04/2006	1
34265-33020	AZT251 T=3.3 MARK 5	09/2003 - 04/2006	1
34265-21040	AZT251 T=3.4 MARK 3	09/2003 - 04/2006	1
34265A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.1)
90520-99029	AZT251	09/2003 - 04/2006	1
34266 - FLANGE, UNDERDRIVE CLUTCH, NO.2
34266-21020	AZT251 T=3.2	09/2003 - 04/2006	1
34266-21010	AZT251 T=3.0	09/2003 - 04/2006	1
34266-21030	AZT251 T=3.4	09/2003 - 04/2006	1
34266A - RING, HOLE SNAP (FOR UNDERDRIVE CLUTCH FLANGE NO.2)
90520-99032	AZT251	09/2003 - 04/2006	1
34301B - BEARING, CYLINDRICAL ROLLER, NO.1 (FOR UNDERDRIVE)
90365-53001	AZT251	09/2003 - 04/2006	1
34301C - NUT (FOR UNDERDRIVE INPUT SHAFT)
90179-32002	AZT25#..ATM	01/2003 - 04/2006	1
34301E - BEARING, TAPERED ROLLER (FOR UNDERDRIVE)
90366-43007	AZT251	09/2003 - 04/2006	1
34301F - RACE, CYLINDRICAL ROLLER BEARING, INNER
34733-21010	AZT251	09/2003 - 04/2006	1
34302B - BEARING, NEEDLE ROLLER(FOR UNDERDRIVE PLANETARY SUN GEA
90374-40003	AZT251	09/2003 - 04/2006	1
34330 - GEAR ASSY, UNDERDRIVE PLANETARY
34330-28010	AZT251	09/2003 - 04/2006	1
34341 - GEAR, UNDERDRIVE PLANETARY RING
34341-33020	AZT251	09/2003 - 04/2006	1
34341A - RING, HOLE SNAP (FOR UNDERDRIVE PLANETARY RING)
90521-99120	AZT251	09/2003 - 04/2006	1
34360 - CLUTCH ASSY, UNDERDRIVE 1 WAY
34360-28010	AZT251	09/2003 - 04/2006	1
34360A - RING, SHAFT SNAP (FOR UNDERDRIVE 1 WAY CLUTCH)
90520-99031	AZT251	09/2003 - 04/2006	1
34365 - RETAINER, OUTER RACE
34365-48011	AZT251	09/2003 - 04/2006	1
34736A - RACE, THRUST BEARING UNDERDRIVE, NO.2
34736-21010	AZT251 T=3.5	09/2003 - 04/2006	1
34736-21020	AZT251 T=3.8	09/2003 - 04/2006	1
34736B - BEARING, THRUST NEEDLE ROLLER
90374-67001	AZT251	09/2003 - 04/2006	1
34737A - RACE, THRUST BEARING UNDERDRIVE, NO.3
34737-21010	AZT25#..ATM	01/2003 - 04/2006	1

AZT251L-AEAGHW (2003)

(0301- )AZT25#..ATM
