AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301-0604)1AZ#,2AZFSE

Click highlighted areas on diagram

12V 1.3KW,1.6KW

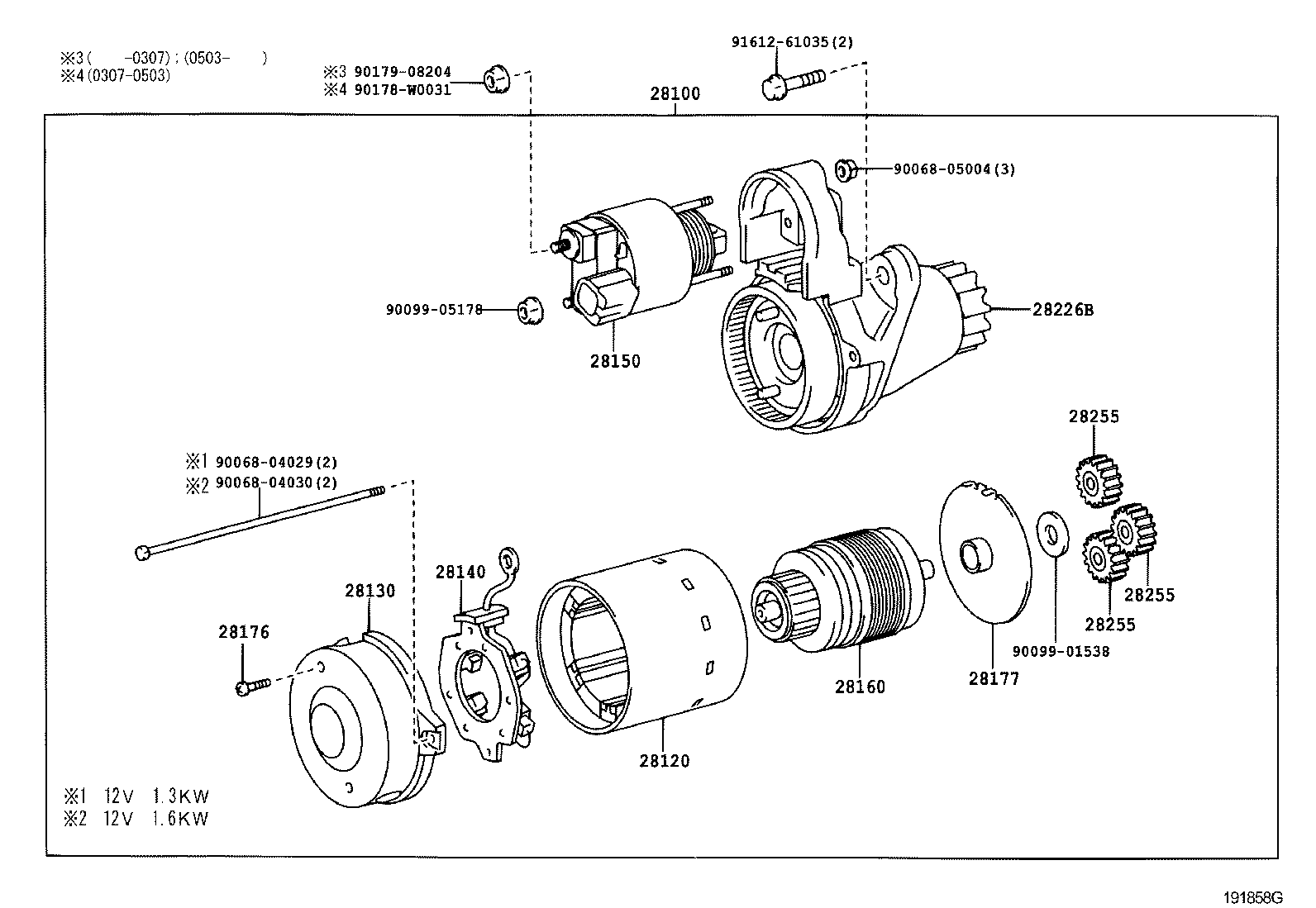

diagram 28100 28120 28130 28140 28150 28160 28176 28177 28226B 28255 28255 28255 9006804029 9006804030 9006805004 9009901538 9009905178 90178W0031 9017908204 9161261035
Part # Description Qty Price
28100 - STARTER ASSY
28100-0H060

1AZFSE,2AZFSE..AZT25#..ATM

12V 1.6KW

 1
28120 - YOKE ASSY, STARTER
28120-0H060

1AZFSE,2AZFSE..AZT25#..ATM

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-0H050

1AZ#,2AZFSE..AZT25#

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0H050

1AZ#,2AZFSE..AZT25#

 1
28150 - SWITCH ASSY, MAGNET STARTER
28226-0D090

1ZZFE,3ZZFE..ZZT25#;1AZFSE,2AZFSE..AZT25#..ATM

 1
28160 - ARMATURE ASSY, STARTER
28160-0H060

1AZFSE,2AZFSE..AZT25#..ATM

 1
28176 - SCREW, STARTER
90068-00015

1AZ#,2AZFSE..AZT25#

 2
28177 - PLATE(FOR STARTER ARMATURE)
28177-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 1
28226B - STARTER KIT, REPAIR SERVICE
28226-0H050

1AZFSE,2AZFSE..AZT25#..ATM

 1
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
28255 - GEAR, PLANET
28255-0D090

1AZ#,2AZFSE,1ZZFE,3ZZFE..AZT25#,ZZT25#

 3
Common parts
90068-04029
90068-04030
90068-05004
90099-01538
90099-05178
90178-W0031
90179-08204
91612-61035
