AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

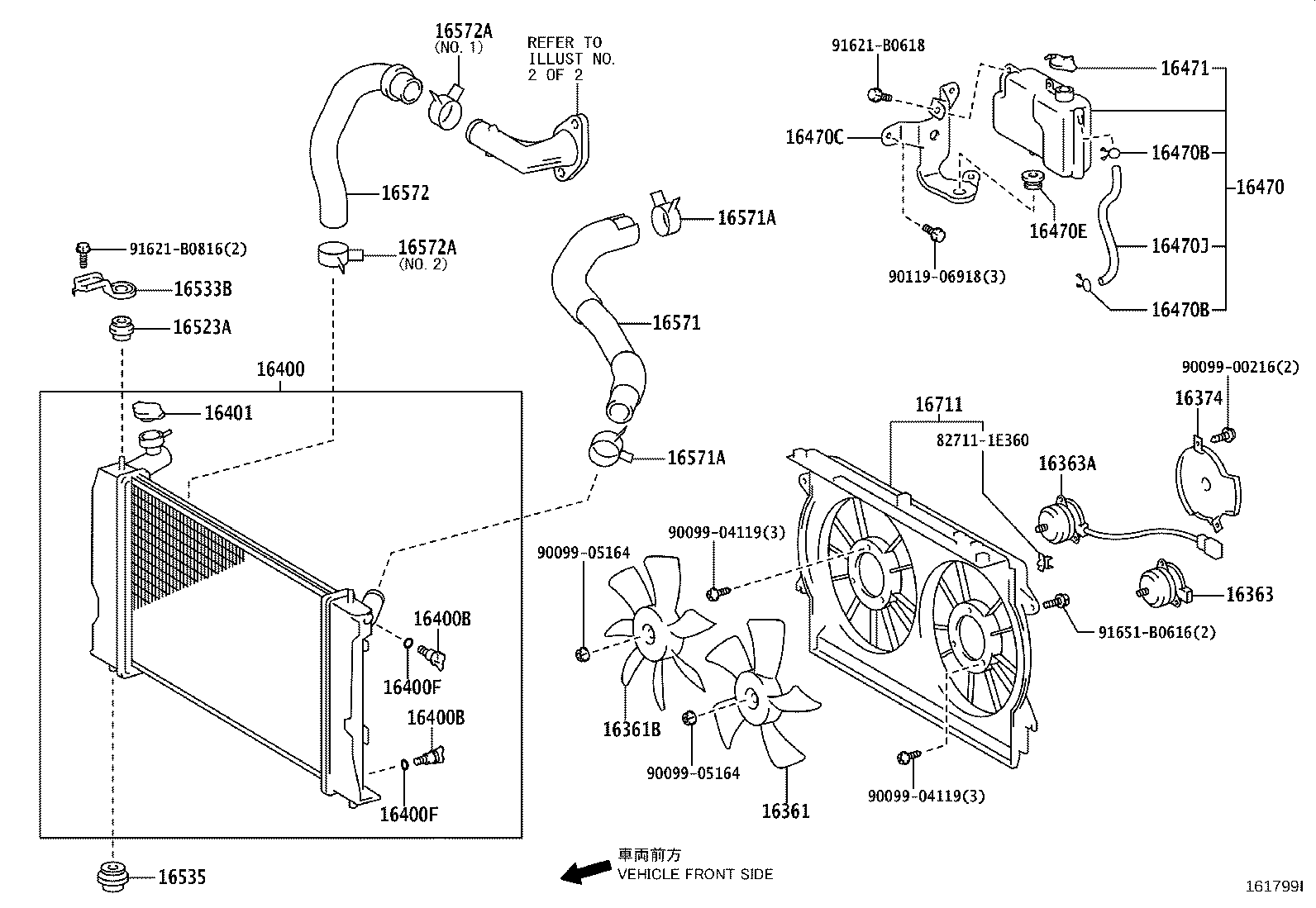

ILLUST NO. 1 OF 2(0301- )1AZ#,2AZFSE

Click highlighted areas on diagram

diagram 16361 16361B 16363 16363A 16374 16400 16400B 16400B 16400F 16400F 16401 16470 16470B 16470B 16470C 16470E 16470J 16471 16523A 16533B 16535 16571 16571A 16571A 16572 16572A 16572A 16711 827111E360 9009900216 9009904119 9009904119 9009905164 9009905164 9011906918 91621B0618 91621B0816 91651B0616
Part # Description Qty Price
16361 - FAN
16361-0H050

1AZ#,2AZFSE..AZT25#

 1
16361B - FAN, NO.2
16361-0D050

1AZ#,2AZFSE..AZT25#

 1
16363 - MOTOR, COOLING FAN
16363-0H030

1AZ#,2AZFSE..AZT25#

 1
16363A - MOTOR, COOLING FAN, NO.2
16363-0H040

1AZ#,2AZFSE..AZT25#

 1
16374 - INSULATOR, COOLING FAN MOTOR
16374-0H010

1AZ#,2AZFSE..AZT25#

 1
16400 - RADIATOR ASSY
16400-0H180

2AZFSE..AZT251

 1
16400-0H181

2AZFSE..AZT251

 1
16400B - PLUG, RADIATOR DRAIN COCK
90080-34010

1AZ#,2AZFSE..AZT25#..ATM

 2
23322-54010

1AZ#,2AZFSE..AZT25#..ATM

 2
16400B - PLUG, RADIATOR DRAIN COCK
90080-34010

1AZ#,2AZFSE..AZT25#..ATM

 2
23322-54010

1AZ#,2AZFSE..AZT25#..ATM

 2
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1AZ#,2AZFSE..AZT25#

 2
16400F - PACKING(FOR RADIATOR DRAIN COCK)
16492-21050

1AZ#,2AZFSE..AZT25#

 2
16401 - CAP SUB-ASSY, RADIATOR
16401-72090

1AZ#,2AZFSE..AZT25#..ATM

 1
16401-72090

1AZ#,2AZFSE..AZT25#..ATM

 1
16470 - TANK ASSY, RADIATOR RESERVE
16470-0H030

1AZ#,2AZFSE..AZT25#

 1
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11001

1AZ#,2AZFSE..AZT25#

 2
16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
90466-11001

1AZ#,2AZFSE..AZT25#

 2
16470C - BRACKET(FOR RADIATOR RESERVE TANK)
16611-28020

1AZ#,2AZFSE..AZT25#

 1
16470E - GROMMET, RADIATOR RESERVE TANK HOSE
90480-18010

1AZ#,2AZFSE..AZT25#

 1
16470J - HOSE, NO.3(FOR RADIATOR RESERVE TANK)
16472-0H030

1AZ#,2AZFSE..AZT25#

 1
16471 - CAP SUB-ASSY, RESERVE TANK
16405-0H030

1AZ#,2AZFSE..AZT25#

 1
16535 - SUPPORT, RADIATOR, LOWER
16535-0H020

1AZ#,2AZFSE..AZT25#

 2
16572 - HOSE, RADIATOR, OUTLET
16572-0H060

1AZ#,2AZFSE..AZT25#

 1
16711 - SHROUD, FAN
16711-0H050

1AZ#,2AZFSE..AZT25#

 1
Common parts
82711-1E360
90099-00216
90099-04119
90099-05164
90119-06918
91621-B0618
91621-B0816
91651-B0616

ILLUST NO. 2 OF 2(0301- )1AZFSE,2AZFSE

Click highlighted areas on diagram

diagram 16258A 16268 16321 16325 16331A 2211 2211 8716 9011606127 9012606024 91631G0614 9415080640 9415080640
Part # Description Qty Price
16321 - INLET, WATER
16321-28010

1AZ#,2AZFSE..AZT25#

 1
16331A - THERMOSTAT
90916-03129

1AZFE,2AZFSE..AZT25#

*WAX 82-95

 1
90916-03084

1AZFE,2AZFSE..AZT25#

*WAX 82-95

 1
90916-03136

1AZFE,2AZFSE..AZT25#

*WAX 82-95

 1
Common parts
90116-06127
90126-06024
91631-G0614
94150-80640
Linked diagrams
2211
8716
