AZT251L-AEAGHW (2003)

Toyota Avensis

Production Sep 2003 - Apr 2006
Engine 2AZFSE
Transmission 5FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

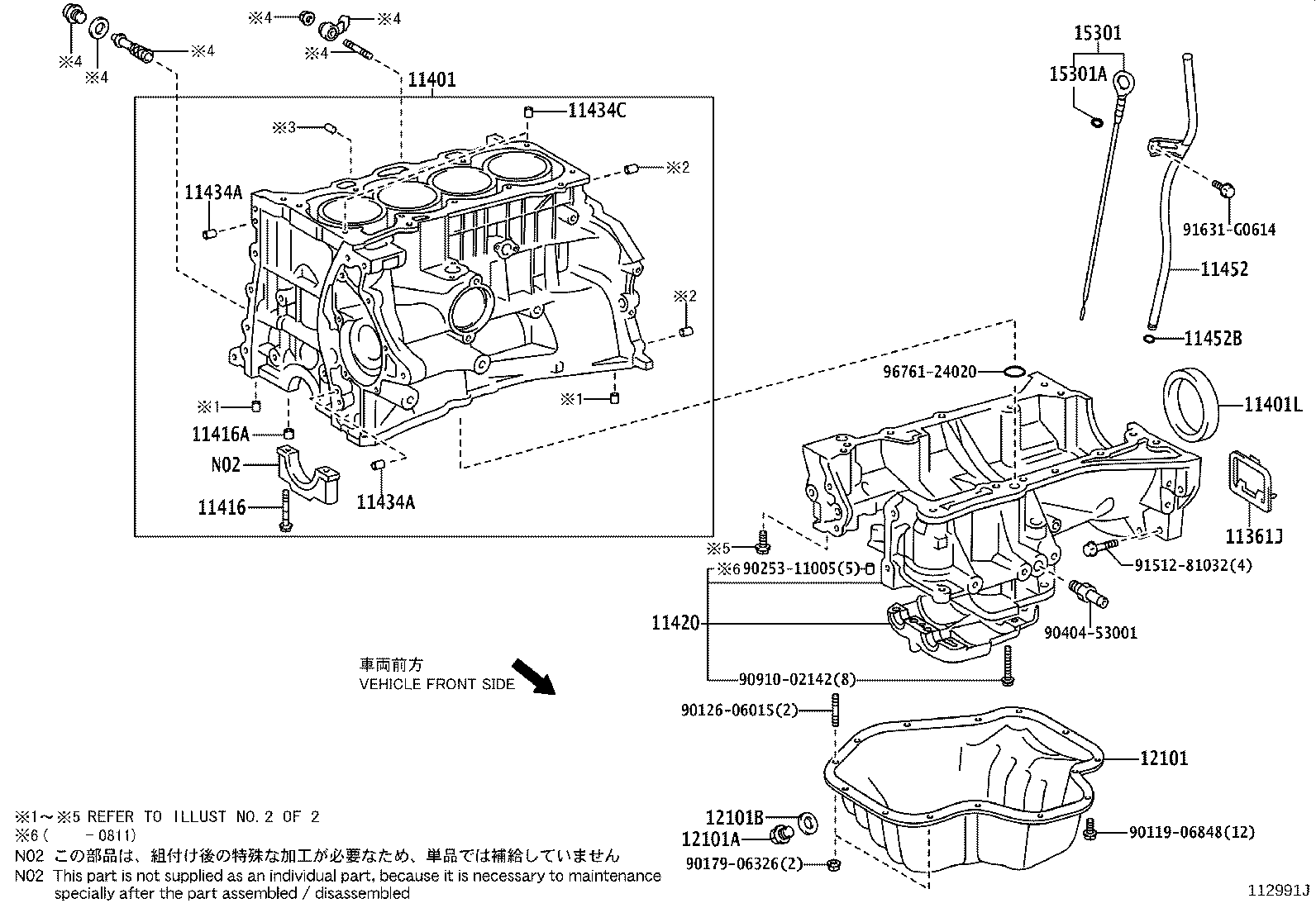

ILLUST NO. 1 OF 2(0309- )2AZFSE

Click highlighted areas on diagram

diagram 11361J 11401 11401L 11416 11416A 11420 11434A 11434A 11434C 11452 11452B 12101 12101A 12101B 15301 15301A 9011906848 9012606015 9017906326 9025311005 9040453001 9091002142 9151281032 91631G0614 9676124020
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-28010

1AZ#,2AZFSE..AZT25#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29105

2AZFSE..AZT251

 1
11410-29325

2AZFSE..AZT251

 1
11410-29185

2AZFSE..AZT251

 1
11401L - SEAL, ENGINE REAR OIL
90311-89003

1AZ#,2AZFSE..AZT25#

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02124

1AZ#,2AZFSE..AZT25#

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13017

1AZ#,2AZFSE..AZT25#

 10
11420 - CRANKCASE ASSY, STIFFENING
11420-28011

2AZFSE..AZT251

 1
11420-28040

2AZFSE..AZT251

 1
11420-28031

2AZFSE..AZT251

 1
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14003

1AZ#,2AZFSE..AZT25#

L=12,OD=14

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-28010

1AZFSE,2AZFSE..AZT25#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1AZ#,2AZFSE..AZT25#

 1
12101 - PAN SUB-ASSY, OIL
12101-28040

2AZFSE..AZT251

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-28041

2AZFSE..AZT251

 1
15301-28030

2AZFSE..AZT251

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

2AZFSE..AZT251

 1
96741-19005

2AZFSE..AZT251

 1
Common parts
90119-06848
90126-06015
90179-06326
90253-11005
90404-53001
90910-02142
91512-81032
91631-G0614
96761-24020

ILLUST NO. 2 OF 2(0301- )1AZ#,2AZFSE

Click highlighted areas on diagram

diagram 11432T 11432U 11434B 11434Y 15678B 8401 8401 8401 9010508439 9025006003 91551G0845
Part # Description Qty Price
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-14013

1AZ#,2AZFSE..AZT25#

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

L=22,OD=10

 2
15678B - FILTER, OIL CONTROL VALVE
15678-28010

1AZ#,2AZFSE..AZT25#

 1
Common parts
90105-08439
90250-06003
91551-G0845
Linked diagrams
8401
