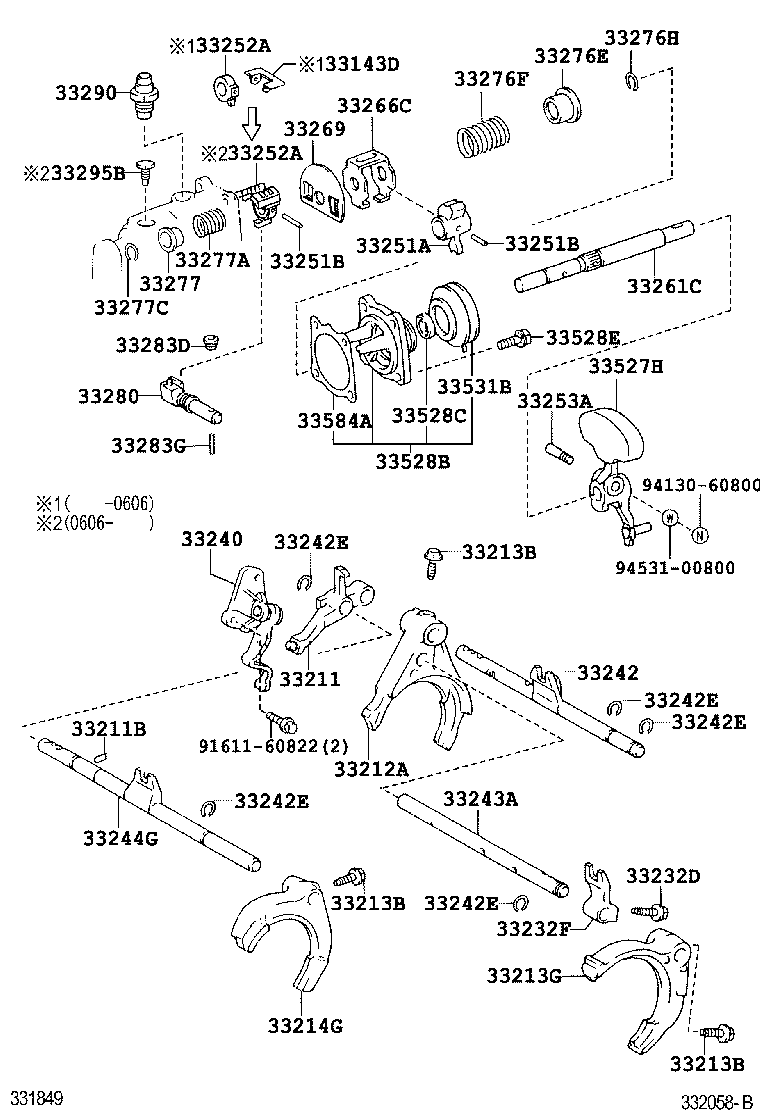

AZT250R-ALMEHW (2003)
Toyota Avensis
(0301- )AZT250..5F
E354
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33143D - BAFFLE, TRANSMISSION OIL | ||||
| 33143-20050 |
AZT250,CDT250..5F |
1 | ||
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-20020 |
AZT250,CDT250..5F |
1 | ||
| 33211B - ROLLER(FOR REVERSE SHIFT FORK) | ||||
| 90361-08005 |
AZT250,CDT250..5F |
1 | ||
| 33212A - FORK, GEAR SHIFT, NO.1 | ||||
| 33212-12030 |
AZT250,CDT250..5F |
1 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AZT250,CDT250..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AZT250,CDT250..5F |
3 | ||
| 33213B - BOLT(FOR SHIFT FORK SET) | ||||
| 90105-07002 |
AZT250,CDT250..5F |
3 | ||
| 33213G - FORK, GEAR SHIFT, NO.2 | ||||
| 33220-28020 |
AZT250,CDT250..5F |
1 | ||
| 33214G - FORK, GEAR SHIFT, NO.3 | ||||
| 33214-12020 |
AZT250,CDT250..5F |
1 | ||
| 33232D - BOLT (FOR SHIFT HEAD SET) | ||||
| 90105-07002 |
AZT250,CDT250..5F |
1 | ||
| 33232F - HEAD, GEAR SHIFT, NO.1 | ||||
| 33232-12030 |
AZT250,CDT250..5F |
1 | ||
| 33240 - BRACKET ASSY, REVERSE SHIFT ARM | ||||
| 33240-28010 |
AZT250,CDT250..5F |
1 | ||
| 33242 - SHAFT, GEAR SHIFT FORK, NO.1 | ||||
| 33242-42010 |
AZT250,CDT250..5F |
1 | ||
| 33242-28030 |
AZT250,CDT250..5F |
1 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
AZT250,CDT250..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
AZT250,CDT250..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
AZT250,CDT250..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
AZT250,CDT250..5F |
5 | ||
| 33242E - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90520-13002 |
AZT250,CDT250..5F |
5 | ||
| 33243A - SHAFT, GEAR SHIFT FORK, NO.2 | ||||
| 33243-28040 |
AZT250,CDT250..5F |
1 | ||
| 33244G - SHAFT, GEAR SHIFT FORK, NO.3 | ||||
| 33244-42010 |
AZT250,CDT250..5F |
1 | ||
| 33244-28030 |
AZT250,CDT250..5F |
1 | ||
| 33251A - LEVER, SHIFT, INNER NO.1 | ||||
| 33251-20090 |
AZT250,CDT250..5F |
1 | ||
| 33251-42010 |
AZT250,CDT250..5F |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AZT250,CDT250..5F L=47.0 |
1 | ||
| 90254-05016 |
AZT250,CDT250..5F L=25.5 |
1 | ||
| 33251B - PIN, SLOTTED SPRING (FOR SHIFT INNER LEVER) | ||||
| 90254-05007 |
AZT250,CDT250..5F L=47.0 |
1 | ||
| 90254-05016 |
AZT250,CDT250..5F L=25.5 |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20050 |
AZT250,CDT250..5F |
1 | ||
| 33252-20051 |
AZT250,CDT250..5F |
1 | ||
| 33252A - LEVER, SHIFT, INNER NO.2 | ||||
| 33252-20050 |
AZT250,CDT250..5F |
1 | ||
| 33252-20051 |
AZT250,CDT250..5F |
1 | ||
| 33253A - PIN, LEVER LOCK (FOR SHIFT OUTER LEVER) | ||||
| 33281-16020 |
AZT250,CDT250,ZZT25#..5F |
1 | ||
| 33261C - SHAFT, SHIFT & SELECT LEVER | ||||
| 33261-20130 |
AZT250,CDT250..5F |
1 | ||
| 33266C - PLATE, SHIFT INTER LOCK | ||||
| 33266-28010 |
AZT250,CDT250..5F |
1 | ||
| 33266-28011 |
AZT250,CDT250..5F |
1 | ||
| 33269 - COVER, SHIFT INTER LOCK PLATE | ||||
| 33269-12010 |
AZT250,CDT250..5F |
1 | ||
| 33276E - SEAT, SELECT SPRING, NO.1 | ||||
| 33276-20030 |
AZT250,CDT250..5F |
1 | ||
| 33276F - SPRING, COMPRESSION, NO.1 (FOR SELECT RETURN) | ||||
| 90501-14196 |
AZT250,CDT250..5F |
1 | ||
| 90501-16182 |
AZT250,CDT250..5F |
1 | ||
| 33276H - RING, SHAFT SNAP (FOR SELECT SPRING NO.1 SEAT) | ||||
| 90520-15003 |
AZT250,CDT250,ZZT25#..5F |
1 | ||
| 33277 - SEAT, SELECT SPRING, NO.2 | ||||
| 33277-17010 |
AZT250,CDT250..5F |
1 | ||
| 33277A - SPRING, COMPRESSION, NO.2 (FOR SELECT RETURN) | ||||
| 90501-14175 |
AZT250,CDT250..5F |
1 | ||
| 33277C - RING, SHAFT SNAP (FOR SELECT SPRING NO.2 SEAT) | ||||
| 90520-12003 |
AZT250,CDT250..5F |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-20041 |
AZT250,CDT250..5F |
1 | ||
| 33283D - PLUG (FOR REVERSE RESTRICT PIN) | ||||
| 90341-10065 |
AZT250,CDT250,ZZT25#..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05003 |
AZT250,CDT250,ZZT25#..5F |
1 | ||
| 33290 - BALL ASSY, LOCK, NO.1 | ||||
| 33290-20010 |
AZT250,CDT250..5F |
1 | ||
| 33290-42010 |
AZT250,CDT250..5F |
1 | ||
| 33527H - LEVER, CONTROL SHIFT | ||||
| 33527-20130 |
AZT250..5F |
1 | ||
| 33527-20101 |
AZT250..5F |
1 | ||
| 33528B - COVER, CONTROL SHAFT | ||||
| 33506-20320 |
AZT250,CDT250..5F |
1 | ||
| 33528C - SEAL, OIL (FOR CONTROL SHAFT COVER) | ||||
| 90311-18013 |
AZT250,CDT250,ZZT25#..5F |
1 | ||
| 33528E - BOLT (FOR CONTROL SHAFT COVER) | ||||
| 90119-10288 |
AZT250,CDT250..5F *10-1.25PX25-19.8 |
4 | ||
| 33531B - BOOT, DUST (FOR SHIFT & SELECT LEVER SHAFT) | ||||
| 33531-12020 |
AZT250,CDT250..5F |
1 | ||
| 33584A - GASKET, CONTROL SHIFT LEVER RETAINER | ||||
| 33584-20020 |
AZT250,CDT250..5F |
1 | ||
| Common parts | ||||
| 91611-60822 | ||||
| 94130-60800 | ||||
| 94531-00800 | ||||
