AZT250R-ALMEHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0301- )AZT250,CDT250..RHD..5F ; (0504- )ADT25#..RHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301P 31301P 31301R 31321 31453A 31453B 55107A 8401 8401 9010910167 9017910088 9046816142 91621J0814 9163560832 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05050

AZT250..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ADT251,AZT250,CDT250,ZZT25#..RHD..MTM

 2
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ADT251,AZT250,CDT250,ZZT25#..RHD..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

ADT251,AZT250,CDT250..MTM

NO.1

 1
90389-05019

ADT251,AZT250,CDT250..MTM

NO.2

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

ADT251,AZT250,CDT250..MTM

NO.1

 1
90389-05019

ADT251,AZT250,CDT250..MTM

NO.2

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100

AZT250..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

ADT251,AZT250,CDT250,ZZT25#..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05070

ADT251,AZT250,CDT250..RHD..MTM

 1
Common parts
90109-10167
90179-10088
90468-16142
91621-J0814
91635-60832
94130-01002
Linked diagrams
8401

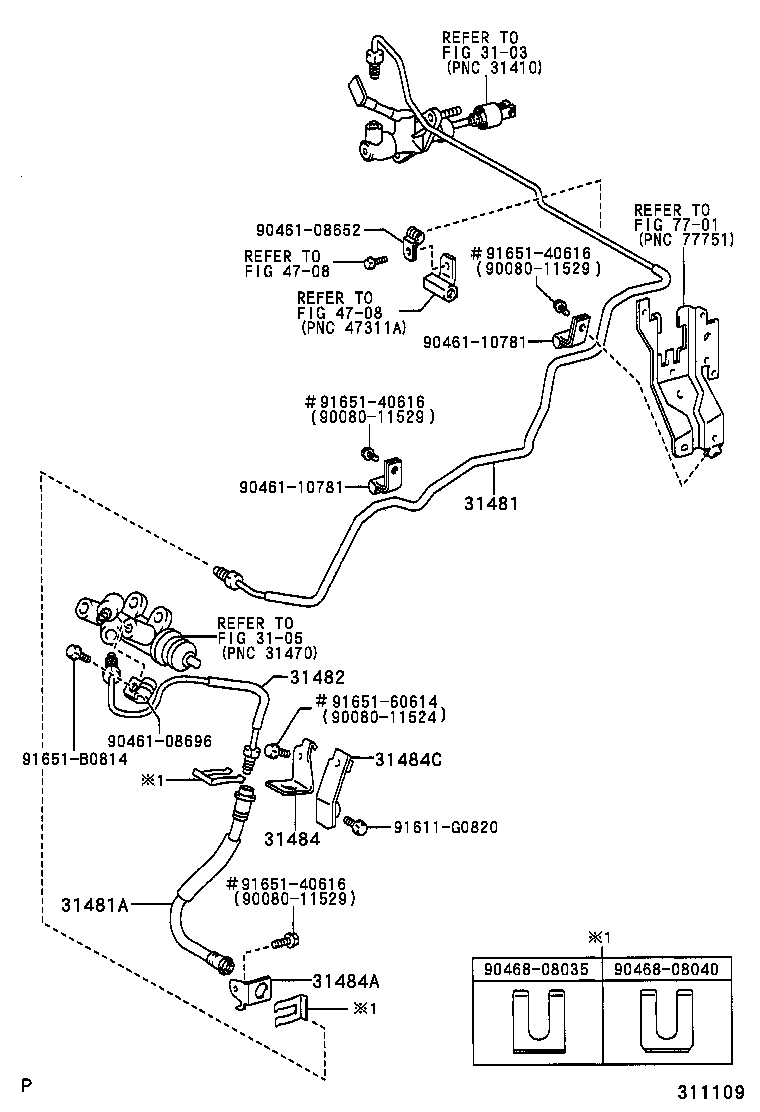

ILLUST NO. 2 OF 2(0301- )AZT250..RHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31484 31484A 31484C 4708 4708 7701 9008011524 9008011529 9008011529 9008011529 9046108652 9046108696 9046110781 9046110781 9046808035 9046808040 91611G0820 9165140616 9165140616 9165140616 9165160614 91651B0814
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05160

AZT250..RHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90080-94130

ADT251,AZT250,CDT250..MTM

C.F.GOMMA SPA

 1
90080-94130

ADT251,AZT250,CDT250..MTM

 1
90947-02D12

ADT251,AZT250,CDT250..MTM

TOYODA GOSEI

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05110

AZT250..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12400

AZT250,CDT250..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

ADT251,AZT250,CDT250..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320

AZT250,CDT250..5F

 1
Common parts
90080-11524
90080-11529
90461-08652
90461-08696
90461-10781
90468-08035
90468-08040
91611-G0820
91651-40616
91651-60614
91651-B0814
Linked diagrams
3103
3105
4708
7701
