AZT250L-ALPGHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0301- )AZT250

Click highlighted areas on diagram

diagram 48971B 48971C 51201 51204A 51206A 51206A 51229B 51249 51963B 51967 51967 52211J 52212A 52213A 52213A 52215 52215 52216B 52257 52258A 52271E 52271E 52272 52272 52272 52272 52273A 52274A 52275A 52276A 52297 52298 9011614018 9011906823 9011914110 90119W0055 90119W0076 90119W0081 90119W0088 90119W0090 9017608039 90178W0027 90178W0027 90178W0027 90178W0033 9095101001 9095101002 91622B1018 91645C1232 91674K1030 91674L1270
Part # Description Qty Price

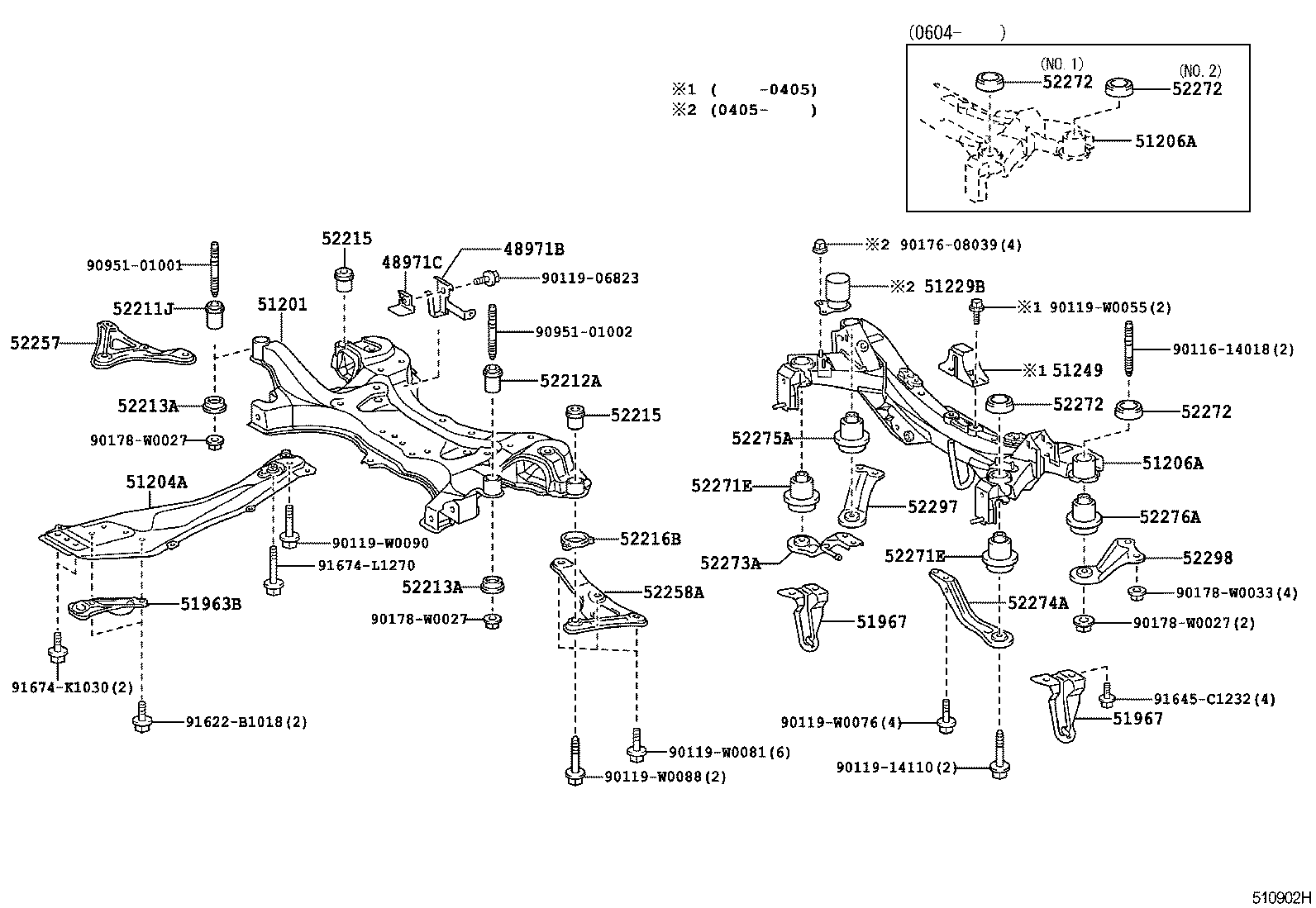

48971B - BRACKET, HEIGHT CONTROL PUMP, NO.1
48971-20010

AZT250..LHD;ZZT251..ELEGT;ZZT251..LHD..TEC;AZT250..RHD..(LB,WG)..ELEGT;ADT251,AZT251,CDT250,ZZT250..ELEGT,TEC

HEAD LAMP-DISCHARGE

 1
48971C - BRACKET, HEIGHT CONTROL PUMP, NO.2
48972-20010

AZT250..LHD;ZZT251..ELEGT;ZZT251..LHD..TEC;AZT250..RHD..(LB,WG)..ELEGT;ADT251,AZT251,CDT250,ZZT250..ELEGT,TEC

HEAD LAMP-DISCHARGE

 1
51201 - CROSSMEMBER SUB-ASSY, FRONT SUSPENSION
51201-05070

AZT250,CDT250,ZZT25#

 1
51201-05071

AZT250,CDT250,ZZT25#..D4,DCR,HTWC

 1
51201-05072

AZT250,CDT250,ZZT25#..D4,DCR,HTWC

 1
51204A - MEMBER SUB-ASSY, ENGINE MOUNTING, CENTER
51204-05051

AZT250

 1
51204-05050

AZT250

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-05061

ADT251,AZT25#,CDT250,ZZT25#

 1
51206-05060

AZT25#,CDT250,ZZT25#

 1
51206A - MEMBER SUB-ASSY, REAR SUSPENSION
51206-05061

ADT251,AZT25#,CDT250,ZZT25#

 1
51206-05060

AZT25#,CDT250,ZZT25#

 1
51229B - DUMPER, NO.2 FRAME CROSSMEMBER DYNAMIC
51229-05030

ADT251,AZT25#,CDT250,ZZT25#

 2
51249 - DAMPER, REAR SUSPENSION MEMBER
51249-05010

AZT25#,CDT250,ZZT25#

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
51967 - HOOK, TRANSPORT, REAR
51967-05030

ADT251,AZT25#,CDT250,ZZT25#

 2
51967 - HOOK, TRANSPORT, REAR
51967-05030

ADT251,AZT25#,CDT250,ZZT25#

 2
52211J - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52211-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
52212A - CUSHION, BODY MOUNTING, NO.2
52212-05010

ADT251,AZT25#,CDT250,ZZT25#

 1
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52213A - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT
52213-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52215 - CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52215-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52216B - STOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR
52216-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52257 - BRACE, FRONT SUSPENSION MEMBER, REAR RH
52257-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
52258A - BRACE, FRONT SUSPENSION MEMBER, REAR LH
52258-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52271E - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT RH
52271-05010

ADT251,AZT25#,CDT250,ZZT25#

 2
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-05011

ADT251,AZT25#,CDT250,ZZT25#

 4
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-05011

ADT251,AZT25#,CDT250,ZZT25#

 4
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-05011

ADT251,AZT25#,CDT250,ZZT25#

 4
52272 - STOPPER, REAR SUSPENSION MEMBER, UPPER
52272-05011

ADT251,AZT25#,CDT250,ZZT25#

 4
52273A - STOPPER, REAR SUSPENSION MEMBER, LOWER RH
52203-20040

ADT251,AZT250,CDT250,ZZT25#

 1
52274A - STOPPER, REAR SUSPENSION MEMBER, LOWER LH
52274-20010

ADT251,AZT250,CDT250,ZZT25#

 1
52275A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR
52275-05011

ADT251,AZT25#,CDT250,ZZT25#

 1
52275-05010

AZT250,CDT250,ZZT25#

 1
52276A - CUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH
52276-05010

AZT250,CDT250,ZZT25#

 1
52276-05011

ADT251,AZT25#,CDT250,ZZT25#

 1
52297 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH
52297-20020

ADT251,AZT25#,CDT250,ZZT25#

 1
52298 - BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH
52298-20010

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
90116-14018
90119-06823
90119-14110
90119-W0055
90119-W0076
90119-W0081
90119-W0088
90119-W0090
90176-08039
90178-W0027
90178-W0033
90951-01001
90951-01002
91622-B1018
91645-C1232
91674-K1030
91674-L1270

ILLUST NO. 2 OF 2(0301- )AZT250

Click highlighted areas on diagram

UNDER COVER

diagram 51441C 51442C 5201 5201 5202 5202 5202 5202 5216116010 5302 5302 58398F 7601 7601 9011906665 9011906665 9015960496 9015960496 9018906027 9018906027 9046707201 9046707201 9046710016C0 9046710016C0
Part # Description Qty Price

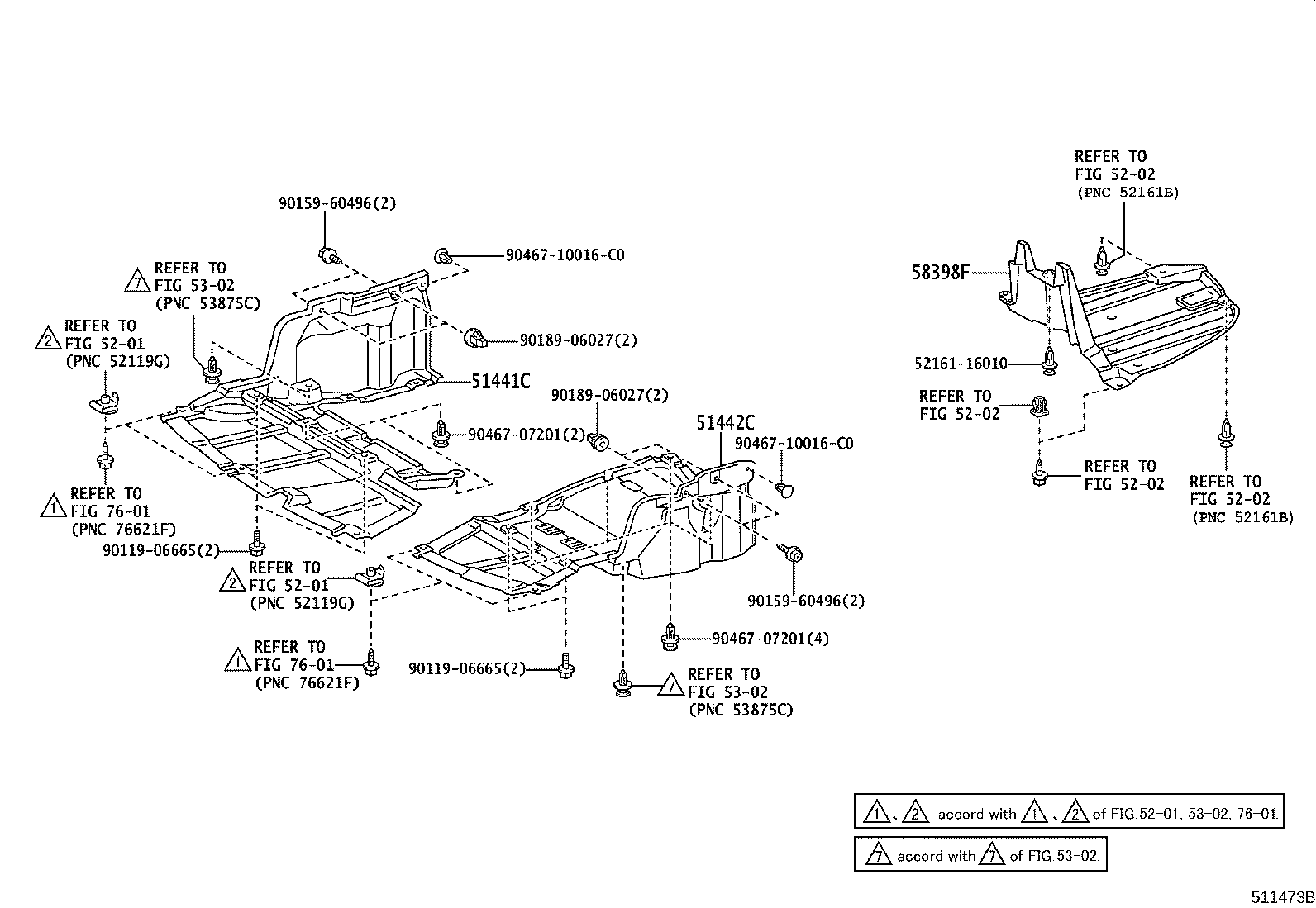

51441C - COVER, ENGINE UNDER, RH
51408-05021

AZT250

 1
51408-05020

AZT250

 1
51442C - COVER, ENGINE UNDER, LH
51409-05020

AZT250,ZZT25#

 1
58398F - COVER, FLOOR UNDER, NO.1
58398-05020

ADT251,AZT25#,CDT250,ZZT25#

 1
Common parts
52161-16010
90119-06665
90159-60496
90189-06027
90467-07201
90467-10016C0
Linked diagrams
5201
5202
5302
7601
