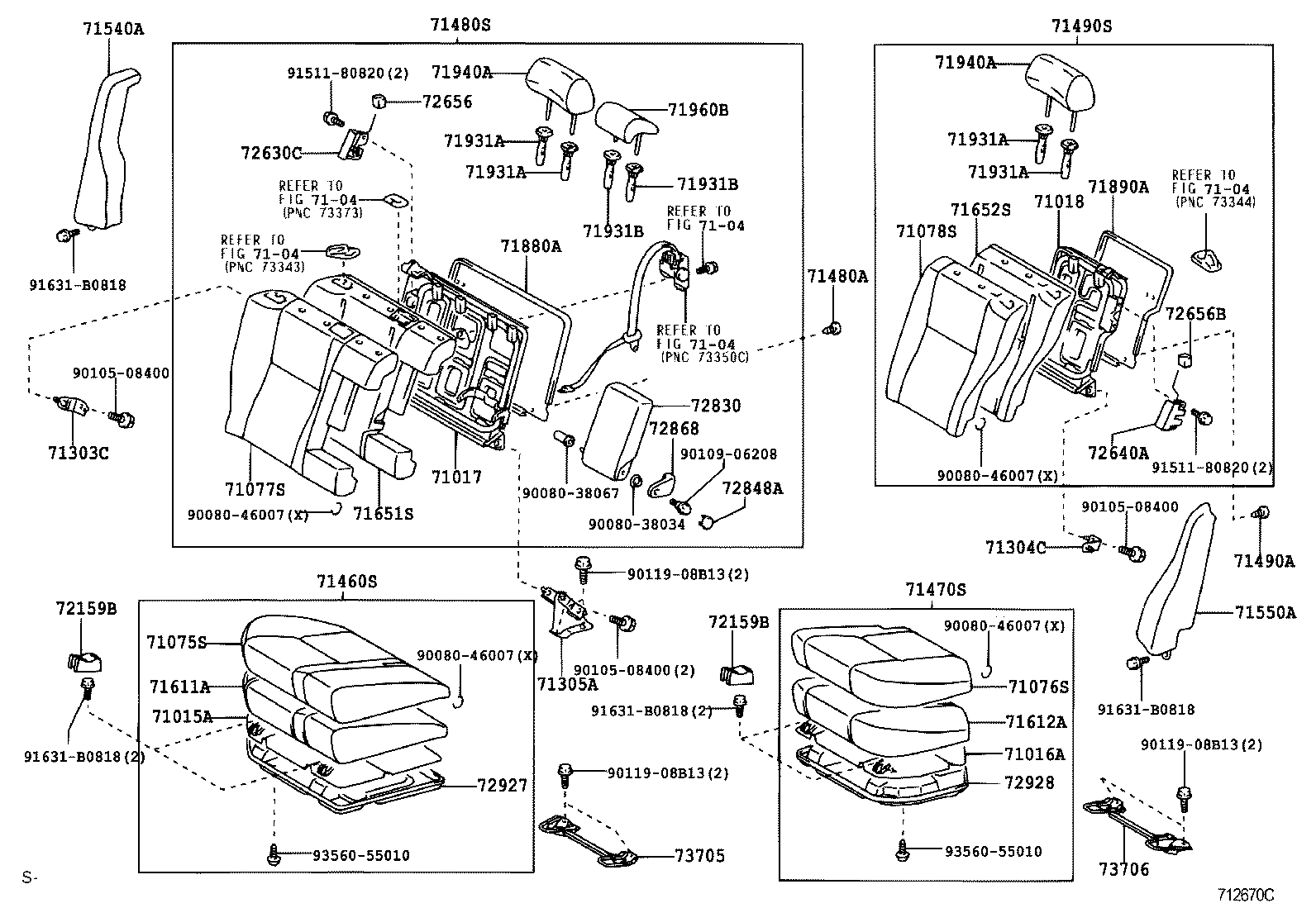

AZT250L-ALPGHW (2003)
Toyota Avensis
(0301-0604)LB,WG ; (0604- )LB,WG
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71015A - FRAME SUB-ASSY, REAR SEAT CUSHION, RH | ||||
| 71015-05050C0 |
AZT250,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71015-05050C0 |
ZZT25#..LHD..(LB,WG);AZT250,CDT250..LHD..(LB,WG)..(D4,DCR) W(FRONT SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71015-05050A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM01 |
1 | ||
| 71015-05050C0 |
AZT250..(LB,WG)..D4;AZT251,CDT250,ZZT25#..LB,WG BLACK,TRIM1# |
1 | ||
| 71015-05051 |
AZT250..(LB,WG)..D4;ADT251,AZT251,CDT250,ZZT25#..LB,WG |
1 | ||
| 71016A - FRAME SUB-ASSY, REAR SEAT CUSHION, LH | ||||
| 71016-05030C0 |
AZT250,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71016-05030C0 |
AZT250..(LB,WG)..D4;AZT251,CDT250,ZZT25#..LB,WG BLACK,TRIM1# |
1 | ||
| 71016-05031 |
AZT250..(LB,WG)..D4;ADT251,AZT251,CDT250,ZZT25#..LB,WG |
1 | ||
| 71016-05030A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM01 |
1 | ||
| 71016-05030C0 |
ZZT25#..LHD..(LB,WG);AZT250,CDT250..LHD..(LB,WG)..(D4,DCR) W(FRONT SEAT HEATER),BLACK,TRIM1# |
1 | ||
| 71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71017-05040 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71018-05040 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71075S - COVER, REAR SEAT CUSHION, RH (FOR SEPARATE TYPE) | ||||
| 71075-05450A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71075-05410A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71075-05450B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71075-05410B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71075-05480A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71075-05411A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71075-05411B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71075-05480A0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71075-05480B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71075-05480B0 |
AZT250..WG..D4;AZT250..LB..5F;AZT250..LB..4FC..TEC;AZT250..LHD..LB..4FC..ELEGT;ADT251,AZT251,CDT250..(LB,WG)..(ELEGT,TEC) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71076S - COVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71076-05200B0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71076-05200A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71076-05200B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71076-05240B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71076-05200A1 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71076-05220B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71076-05201A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71076-05220A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71076-05201B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71076-05240A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71076-05240A0 |
ADT251..RHD..(LB,WG)..TEC;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71076-05240B0 |
AZT250..WG..D4;AZT250..LB..5F;AZT250..LB..4FC..TEC;AZT250..LHD..LB..4FC..ELEGT;ADT251,AZT251,CDT250..(LB,WG)..(ELEGT,TEC) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE) | ||||
| 71077-05340B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK. GRAY,TRIM1# |
1 | ||
| 71077-05380A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71077-05380B0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71077-05340A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71077-05380A0 |
ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71077-05380B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71077-05341A1 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71077-05341B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71078-05270A1 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 71078-05271A1 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 71078-05270B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71078-05330A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71078-05330B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71078-05330A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71078-05271B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71078-05330B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71303C - HINGE SUB-ASSY, REAR SEAT BACK, RH | ||||
| 71303-05030 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71304C - HINGE SUB-ASSY, REAR SEAT BACK, LH | ||||
| 71304-05020 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER | ||||
| 71305-05031 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71460S - CUSHION ASSY, REAR SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71460-05420A5 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71460-05421B0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71460-05482A0 |
AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71460-05481A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71460-05421A0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71460-05420B4 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71460-05482B0 |
AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71460-05421A0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 71460-05482B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71460-05481B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71460-05480B2 |
AZT250,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71460-05422A0 |
ZZT251..(LB,WG)..ELEGT;ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) IVORY,TRIM0# |
1 | ||
| 71460-05422B0 |
ZZT251..(LB,WG)..ELEGT;ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) DK.GRAY,TRIM1# |
1 | ||
| 71460-05483A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71460-05482A0 |
AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71460-05421B0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) DK. GRAY,TRIM1# |
1 | ||
| 71460-05480A3 |
AZT250,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71460-05483A0 |
ADT251..RHD..(LB,WG)..TEC;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71460-05483B0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71460-05483B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71470S - CUSHION ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71470-05210B4 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71470-05210A5 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71470-05231A0 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71470-05232B0 |
AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71470-05211B0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71470-05230A3 |
AZT250,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71470-05232A0 |
AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71470-05231B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71470-05230B2 |
AZT250,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71470-05211B0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) DK. GRAY,TRIM1# |
1 | ||
| 71470-05211A0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 71470-05211A0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71470-05232B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71470-05233A0 |
ADT251..RHD..(LB,WG)..TEC;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71470-05212B0 |
ZZT251..(LB,WG)..ELEGT;ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) DK.GRAY,TRIM1# |
1 | ||
| 71470-05233A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71470-05232A0 |
AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71470-05233B0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71470-05212A0 |
ZZT251..(LB,WG)..ELEGT;ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) IVORY,TRIM0# |
1 | ||
| 71470-05233B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71480A - CLIP (FOR REAR SEAT BACK) | ||||
| 90467-08220A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
2 | ||
| 90467-08220B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
2 | ||
| 71480S - BACK ASSY, REAR SEAT, RH (FOR SEPARATE TYPE) | ||||
| 71480-05490A4 |
AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71480-05491B0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71480-05490B0 |
AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK. GRAY,TRIM1# |
1 | ||
| 71480-05530A2 |
AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71480-05531A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71480-05491A0 |
ZZT251..LHD..(LB,WG)..ELEGT;AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71480-05531B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71480-05530B0 |
AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71480-05491B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71480-05531A0 |
ADT251..RHD..(LB,WG)..TEC;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..RHD..(LB,WG)..(ELEGT,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71480-05531B0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71480-05491A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71490A - CLIP, REAR SEAT BACK, LH | ||||
| 90467-08220A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
2 | ||
| 90467-08220B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
2 | ||
| 71490S - BACK ASSY, REAR SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71490-05450B0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT DK. GRAY,TRIM1# |
1 | ||
| 71490-05490A0 |
CDT250..RHD..WG..TEC;ADT251..RHD..(LB,WG)..TEC;ADT251,AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71490-05450A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71490-05490B0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 71490-05490A0 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71490-05490B0 |
ADT251,AZT25#,CDT250..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71540A - BACK ASSY, REAR SIDE SEAT, RH | ||||
| 71540-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71540-05140A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 71540-05160A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71540-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71540-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK. GRAY,TRIM1# |
1 | ||
| 71540-05160A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71550A - BACK ASSY, REAR SIDE SEAT, LH | ||||
| 71550-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK. GRAY,TRIM1# |
1 | ||
| 71550-05160A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71550-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK. GRAY,TRIM1# |
1 | ||
| 71550-05140A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 71550-05160A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71550-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK. GRAY,TRIM1# |
1 | ||
| 71611A - PAD, REAR SEAT CUSHION, RH | ||||
| 71611-05031 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71611-05030 |
AZT250,CDT250,ZZT25#..LB,WG |
1 | ||
| 71611-05031 |
ZZT25#..LHD..(LB,WG)..(ELEGT,ENTRY);AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,ENTRY)..(D4,DCR) W(FRONT SEAT HEATER) |
1 | ||
| 71611-05031 |
CDT250..LB..TEC;AZT25#,ZZT25#..LB,WG;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..(ELEGT,ENTRY) |
1 | ||
| 71612A - PAD, REAR SEAT CUSHION, LH | ||||
| 71612-05030 |
CDT250..LB..TEC;AZT25#,ZZT25#..LB,WG;CDT250..LHD..WG..TEC;CDT250..(LB,WG)..(ELEGT,ENTRY) |
1 | ||
| 71612-05030 |
ZZT25#..LHD..(LB,WG)..(ELEGT,ENTRY);AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,ENTRY)..(D4,DCR) W(FRONT SEAT HEATER) |
1 | ||
| 71612-05030 |
ADT251,AZT25#,CDT250..LHD..(LB,WG)..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER) |
1 | ||
| 71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71651-05050 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71652-05030 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC |
1 | ||
| 71880A - CARPET ASSY, REAR SEAT BACK BOARD, RH | ||||
| 71885-02030A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71885-02030B0 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 71890A - CARPET ASSY, REAR SEAT BACK BOARD, LH | ||||
| 71886-02030B0 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 71886-02030A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931A - SUPPORT, REAR SEAT HEADREST | ||||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
2 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
2 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
1 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71931B - SUPPORT ASSY, REAR NO.1 SEAT HEADREST | ||||
| 71956-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W/O(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71970-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W(LOCK),IVORY,TRIM0# |
1 | ||
| 71970-02020B0 |
ADT251,AZT25#,CDT250,ZZT25# W(LOCK),DK.GRAY,TRIM1# |
1 | ||
| 71956-02020A0 |
ZZT251..LHD..SED..4FC..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT W/O(LOCK),IVORY,TRIM0# |
1 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05160A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
2 | ||
| 71940-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
2 | ||
| 71940-05140A1 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71940-05160A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71940A - HEADREST ASSY, REAR SEAT | ||||
| 71940-05160A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
2 | ||
| 71940-05140B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
2 | ||
| 71940-05140A1 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
2 | ||
| 71940-05160A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
2 | ||
| 71940-05160B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
2 | ||
| 71960B - HEADREST ASSY, REAR SEAT, CENTER | ||||
| 71960-05110A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 71960-05090A1 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 71960-05110B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 71960-05110A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 71960-05090B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 71960-05110B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-20020B0 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG DK.GRAY,TRIM1# |
4 | ||
| 72159-20020A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
4 | ||
| 72159B - COVER, REAR SEAT TRACK BRACKET, OUTER | ||||
| 72159-20020B0 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG DK.GRAY,TRIM1# |
4 | ||
| 72159-20020A0 |
ADT251,AZT25#,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
4 | ||
| 72630C - LOCK ASSY, REAR SEAT BACK, RH | ||||
| 72630-05020 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG |
1 | ||
| 72640A - LOCK ASSY, REAR SEAT BACK, LH | ||||
| 72640-05020 |
ADT251,AZT25#,CDT250,ZZT25#..LB,WG |
1 | ||
| 72656 - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05020B0 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 72661-05020A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 72656B - BUTTON, REAR SEAT BACK STOP RELEASE | ||||
| 72661-05020A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 72661-05020B0 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 72830 - ARMREST ASSY, REAR SEAT, CENTER | ||||
| 72830-CA030A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 72830-CA040A0 |
ADT251,AZT25#,CDT250..LHD..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),IVORY,TRIM0# |
1 | ||
| 72830-CA040A0 |
ADT251,AZT25#,CDT250..ELEGT..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),IVORY,TRIM0# |
1 | ||
| 72830-CA030B0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT DK.GRAY,TRIM1# |
1 | ||
| 72830-CA040B0 |
ADT251,AZT25#,CDT250..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT),DK.GRAY,TRIM1# |
1 | ||
| 72830-CA040B0 |
ADT251,AZT25#,CDT250..LHD..(ELEGT,TEC)..(D4,DCR,DCRL) HIGH GRADE PACKAGE(LEATHER SEAT)&W(FRONT SEAT HEATER),DK.GRAY,TRIM1# |
1 | ||
| 72848A - CAP, SEAT ARMREST, NO.1 | ||||
| 72848-05010B1 |
ADT251,CDT250,ZZT25#..(LB,WG)..ENTRY;ADT251,AZT25#,CDT250,ZZT25#..ELEGT,TEC DK.GRAY,TRIM1# |
1 | ||
| 72848-05010A0 |
ADT251,AZT25#,CDT250,ZZT25#..ELEGT IVORY,TRIM0# |
1 | ||
| 72868 - COVER, CENTER ARMREST HINGE, RH | ||||
| 72868-CA011A0 |
AZT25#,CDT250,ZZT25#..ELEGT..(D4,DCR,HTWC) IVORY,TRIM01,16 |
1 | ||
| 72868-CA011B0 |
AZT25#,CDT250,ZZT25#..ELEGT..(D4,DCR,HTWC) DK.GRAY,TRIM01,16 |
1 | ||
| 72927 - COVER, REAR SEAT CUSHION UNDER, RH | ||||
| 72927-05011A0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 72927-05010A0 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 72927-05011B0 |
AZT250..(LB,WG)..D4;AZT251,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 72927-05012A0 |
ZZT251..LHD..(LB,WG)..ELEGT;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 72927-05012B0 |
ADT251,AZT251,ZZT250..LB,WG;ZZT251..LHD..(LB,WG)..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ELEGT,TEC);ZZT251..RHD..(LB,WG)..(ENTRY,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR);AZT250,CDT250..(LB,WG)..(ENTRY,TEC)..(D4,DCR) DK GRAY,TRIM1# |
1 | ||
| 72927-05010B0 |
AZT250,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 72928 - COVER, REAR SEAT CUSHION UNDER, LH | ||||
| 72928-05011A0 |
ZZT251..(LB,WG)..ELEGT;AZT25#,CDT250..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 72928-05010A0 |
AZT250,CDT250,ZZT251..(LB,WG)..ELEGT IVORY,TRIM0# |
1 | ||
| 72928-05012A0 |
ZZT251..LHD..(LB,WG)..ELEGT;ADT251,AZT251..(LB,WG)..ELEGT;AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR) IVORY,TRIM0# |
1 | ||
| 72928-05011B0 |
AZT250..(LB,WG)..D4;AZT251,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 72928-05010B0 |
AZT250,CDT250,ZZT25#..LB,WG DK GRAY,TRIM1# |
1 | ||
| 72928-05012B0 |
ADT251,AZT251,ZZT250..LB,WG;ZZT251..LHD..(LB,WG)..5F..ENTRY;ZZT251..LHD..(LB,WG)..(ELEGT,TEC);ZZT251..RHD..(LB,WG)..(ENTRY,TEC);AZT250,CDT250..LHD..(LB,WG)..ELEGT..(D4,DCR);AZT250,CDT250..(LB,WG)..(ENTRY,TEC)..(D4,DCR) DK GRAY,TRIM1# |
1 | ||
| 73705 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, RH | ||||
| 73705-05020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| 73706 - BRACKET SUB-ASSY, CHILD RESTRAINT SEAT ANCHOR, LH | ||||
| 73706-05020 |
ADT251,AZT25#,CDT250,ZZT25# |
1 | ||
| Common parts | ||||
| 90080-38034 | ||||
| 90080-38067 | ||||
| 90080-46007 | ||||
| 90105-08400 | ||||
| 90109-06208 | ||||
| 90119-08B13 | ||||
| 91511-80820 | ||||
| 91631-B0818 | ||||
| 93560-55010 | ||||
| Linked diagrams | ||||
| 7104 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
