AZT250L-ALPGHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

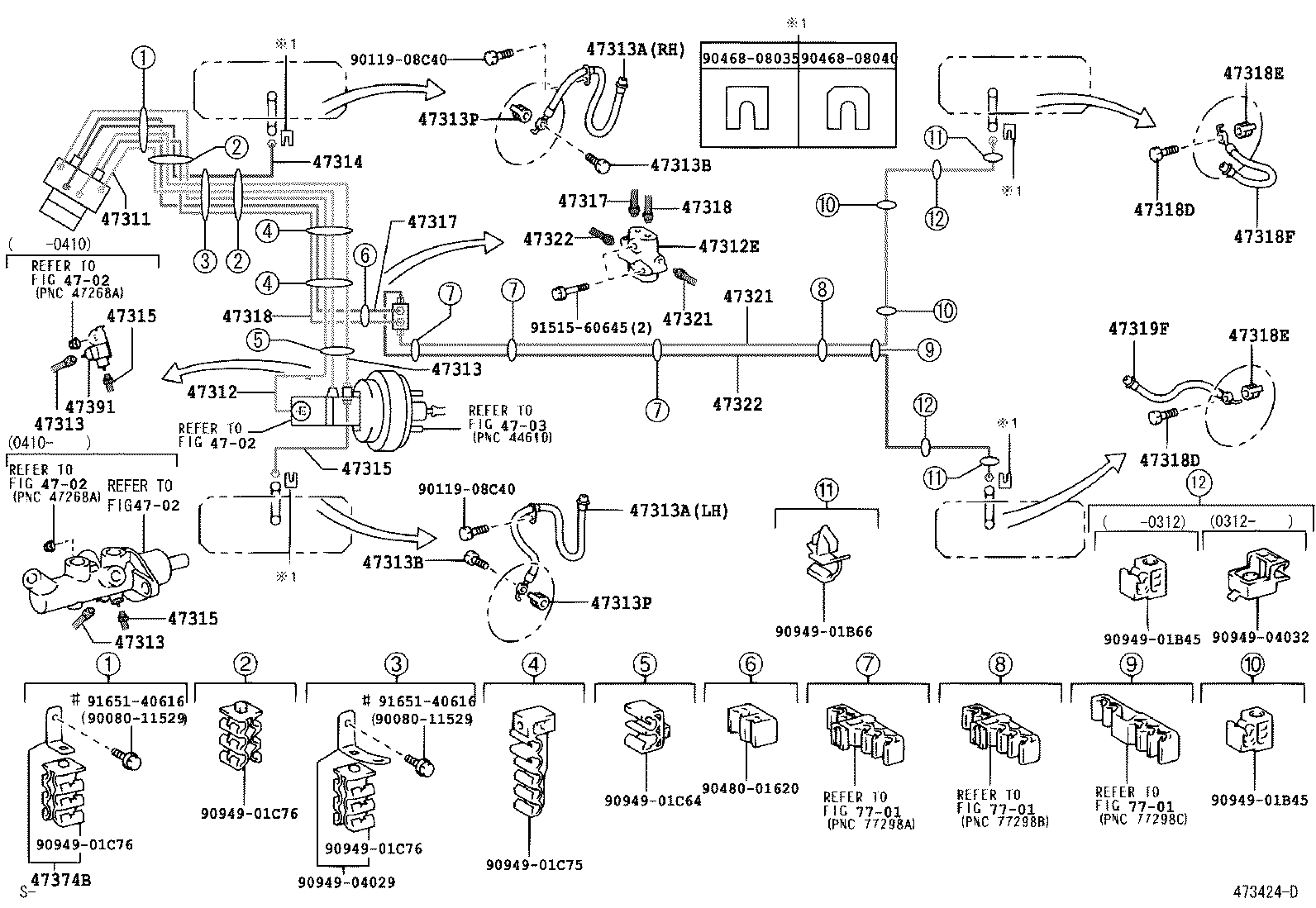

ILLUST NO. 1 OF 2(0301-0402)LHD..D4,DCR,DCRL ; (0402- )AZT250..LHD..D4 ; (0402- )AZT251,CDT250

Click highlighted areas on diagram

W(VSC)

diagram 4702 4702 4702 4702 4703 47311 47312 47312E 47313 47313 47313 47313A 47313A 47313B 47313B 47313P 47313P 47314 47315 47315 47315 47317 47317 47318 47318 47318D 47318D 47318E 47318E 47318F 47319F 47321 47321 47322 47322 47374B 47391 7701 7701 7701 9008011529 9008011529 9011908C40 9011908C40 9046808035 9046808040 9048001620 9094901B45 9094901B45 9094901B66 9094901C64 9094901C75 9094901C76 9094901C76 9094901C76 9094904029 9094904032 9151560645 9165140616 9165140616
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-05240

AZT25#..LHD..D4

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-05080

AZT25#..LHD..D4

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12082

ADT251,AZT25#,CDT250,ZZT25#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05220

AZT25#..LHD..D4

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05220

AZT25#..LHD..D4

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-05220

AZT25#..LHD..D4

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94200

ADT251,AZT25#,CDT250,ZZT25#

LH

 1
90947-02D23

ADT251,AZT25#,CDT250,ZZT25#

(J),LH

 1
90947-02D22

ADT251,AZT25#,CDT250,ZZT25#

(J),RH

 1
90080-94199

ADT251,AZT25#,CDT250,ZZT25#

RH

 1
90080-94199

ADT251,AZT25#,CDT250,ZZT25#

(L),RH

 1
90080-94200

ADT251,AZT25#,CDT250,ZZT25#

(L),LH

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90080-94200

ADT251,AZT25#,CDT250,ZZT25#

LH

 1
90947-02D23

ADT251,AZT25#,CDT250,ZZT25#

(J),LH

 1
90947-02D22

ADT251,AZT25#,CDT250,ZZT25#

(J),RH

 1
90080-94199

ADT251,AZT25#,CDT250,ZZT25#

RH

 1
90080-94199

ADT251,AZT25#,CDT250,ZZT25#

(L),RH

 1
90080-94200

ADT251,AZT25#,CDT250,ZZT25#

(L),LH

 1
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ADT251,AZT25#,CDT250,ZZT25#

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10058

ADT251,AZT25#,CDT250,ZZT25#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ADT251,AZT25#,CDT250,ZZT25#

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
47389-50020

ADT251,AZT25#,CDT250,ZZT25#

 2
47314 - TUBE, FRONT BRAKE, NO.4
47314-05130

ADT251,AZT25#..LHD..(D4,DCR,DCRL)

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05150

ADT251,AZT25#,CDT250,ZZT25#..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05150

ADT251,AZT25#,CDT250,ZZT25#..LHD

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-05150

ADT251,AZT25#,CDT250,ZZT25#..LHD

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-05150

AZT25#..LHD..D4

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-05150

AZT25#..LHD..D4

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-05150

AZT25#..LHD..D4

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-05150

AZT25#..LHD..D4

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ADT251,AZT25#,CDT250,ZZT25#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

ADT251,AZT25#,CDT250,ZZT25#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ADT251,AZT25#,CDT250,ZZT25#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

ADT251,AZT25#,CDT250,ZZT25#

 2
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02E85

ADT251,AZT25#,CDT250,ZZT25#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02E85

ADT251,AZT25#,CDT250,ZZT25#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-05070

ADT251,AZT25#,CDT250,ZZT25#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-05070

ADT251,AZT25#,CDT250,ZZT25#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-05070

ADT251,AZT25#,CDT250,ZZT25#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-05070

ADT251,AZT25#,CDT250,ZZT25#

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-13020

ADT251,AZT25#..LHD..(D4,DCR,DCRL)

 1
47391 - WAY, BRAKE TUBE
47391-05140

AZT25#,CDT250,ZZT25#..LHD

 1
Common parts
90080-11529
90119-08C40
90468-08035
90468-08040
90480-01620
90949-01B45
90949-01B66
90949-01C64
90949-01C75
90949-01C76
90949-04029
90949-04032
91515-60645
91651-40616
Linked diagrams
4702
4703
7701

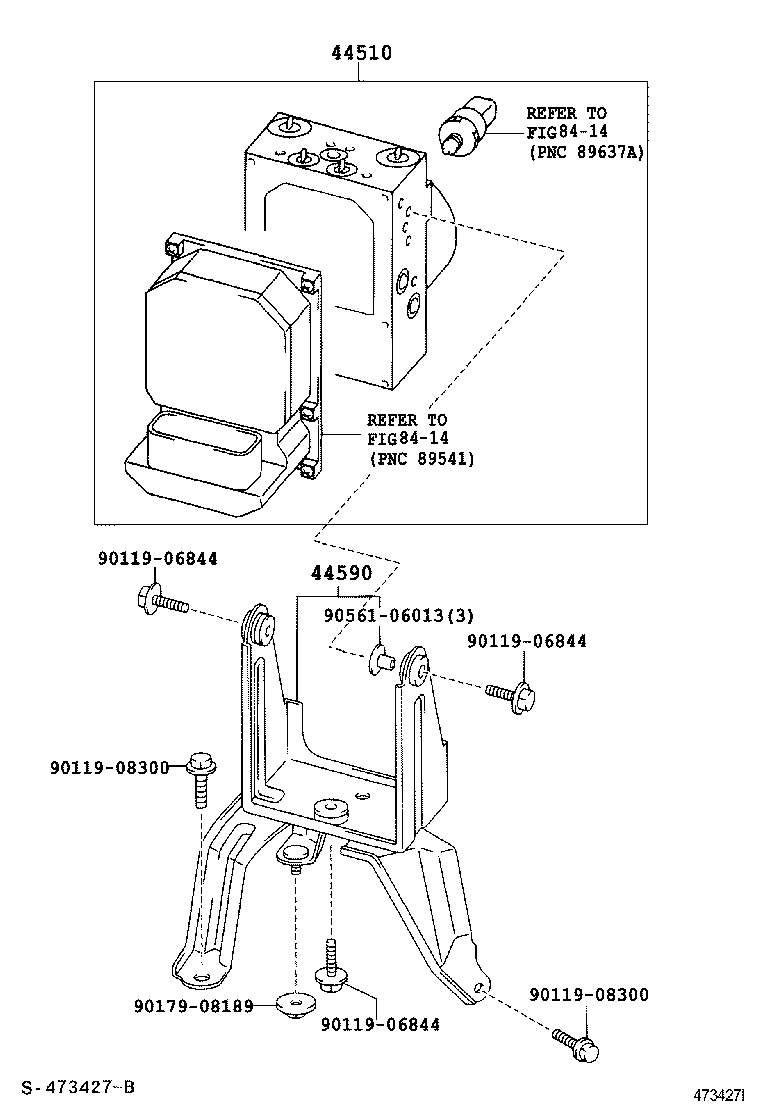

ILLUST NO. 2 OF 2(0301-0402)D4,DCR,DCRL ; (0402- )ZZT25# ; (0402- )AZT25#,CDT250..D4,DCR,DCRL

Click highlighted areas on diagram

W(VSC)

diagram 44510 44590 8414 8414 9011906844 9011906844 9011906844 9011908300 9011908300 9017908189 9056106013
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44050-05060

AZT250..D4

 1
44050-05062

AZT25#..D4

 1
44050-05080

ZZT251;ADT251,AZT25#..D4,DCR,DCRL

 1
44050-05063

ZZT251;AZT25#..D4

 1
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-05030

ADT251,AZT25#..D4,DCR,DCRL

 1
Common parts
90119-06844
90119-08300
90179-08189
90561-06013
Linked diagrams
8414
