Toyota Avensis AZT250 FRONT AXLE HOUSING & DIFFERENTIAL

Part #	Description	Period	Qty
35111C - HOUSING, TRANSAXLE
35105-44030	AZT250..4FC TYPE B:REFER ILLUST.	04/2003 - 01/2006	1
35105-44011	AZT250..4FC	01/2003 - 04/2003	1
35105-44011	AZT250..4FC TYPE A:REFER ILLUST.	04/2003 - 04/2006	1
35105-44060	AZT250..4FC TYPE C:REFER ILLUST.	01/2006 - 04/2006	1
41039A - GEAR KIT, DIFFERENTIAL
41039-28020	AZT250..4FC	07/2004 - 04/2006	1
41211 - PINION, DIFFERENTIAL DRIVE
41211-32130	AZT250..4FC	01/2003 - 04/2006	1
41221 - GEAR, FRONT DIFFERENTIAL RING
41221-44010	AZT250..4FC	01/2003 - 04/2006	1
41301P - SCREW(FOR FRONT DIFFERENTIAL CASE)
90105-12303	AZT250..4FC	01/2003 - 04/2006	10
41311 - CASE, FRONT DIFFERENTIAL
41301-33110	AZT250..4FC	02/2004 - 04/2006	1
41301-33070	AZT250..4FC	01/2003 - 02/2004	1
41311C - SHIM (FOR FRONT DIFFERENTIAL CASE REAR)
90564-68008	AZT250..4FC T=2.00,MARK 2	01/2003 - 04/2006	1
90564-68007	AZT250..4FC T=1.95,MARK 1	01/2003 - 04/2006	1
90564-68006	AZT250..4FC T=1.90,MARK 0	01/2003 - 04/2006	1
90564-68016	AZT250..4FC T=2.40,MARK A	01/2003 - 04/2006	1
90564-68012	AZT250..4FC T=2.20,MARK 6	01/2003 - 04/2006	1
90564-68014	AZT250..4FC T=2.30,MARK 8	01/2003 - 04/2006	1
90564-68017	AZT250..4FC T=2.45,MARK B	01/2003 - 04/2006	1
90564-68018	AZT250..4FC T=2.50,MARK C	01/2003 - 04/2006	1
90564-68013	AZT250..4FC T=2.25,MARK 7	01/2003 - 04/2006	1
90564-68009	AZT250..4FC T=2.05,MARK 3	01/2003 - 04/2006	1
90564-68010	AZT250..4FC T=2.10,MARK 4	01/2003 - 04/2006	1
90564-68011	AZT250..4FC T=2.15,MARK 5	01/2003 - 04/2006	1
90564-68022	AZT250..4FC T=2.70,MARK G	01/2003 - 04/2006	1
90564-68023	AZT250..4FC T=2.75,MARK H	01/2003 - 04/2006	1
90564-68021	AZT250..4FC T=2.65,MARK F	01/2003 - 04/2006	1
90564-68015	AZT250..4FC T=2.35,MARK 9	01/2003 - 04/2006	1
90564-68024	AZT250..4FC T=2.80,MARK J	01/2003 - 04/2006	1
90564-68019	AZT250..4FC T=2.55,MARK D	01/2003 - 04/2006	1
90564-68020	AZT250..4FC T=2.60,MARK E	01/2003 - 04/2006	1
41311E - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FR
90366-50084	AZT250..4FC	01/2003 - 04/2006	1
41311F - BEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE RE
90366-50078	AZT250..4FC	01/2003 - 04/2006	1
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-33030	AZT250..4FC	01/2003 - 07/2004	2
41331F - GEAR, FRONT DIFFERENTIAL SIDE
41331-33030	AZT250..4FC	01/2003 - 07/2004	2
41341F - PINION, FRONT DIFFERENTIAL
41341-14041	AZT250..4FC	01/2003 - 07/2004	2
41341F - PINION, FRONT DIFFERENTIAL
41341-14041	AZT250..4FC	01/2003 - 07/2004	2
41342A - PIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)
90250-06058	ADT251,AZT25#,CDT250,ZZT25#	01/2003 - 04/2006	1
41342F - SHAFT, FRONT DIFFERENTIAL PINION, NO.1
41342-33040	AZT250..4FC	01/2003 - 04/2006	1
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-28010	AZT250..4FC	01/2003 - 04/2006	2
41351F - WASHER, FRONT DIFFERENTIAL PINION THRUST
41351-28010	AZT250..4FC	01/2003 - 04/2006	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230	AZT250,CDT250 T=1.0,MARK 1	01/2003 - 04/2006	2
41361-28240	AZT250,CDT250 T=1.1,MARK 2	01/2003 - 04/2006	2
41361-28260	AZT250,CDT250 T=1.3,MARK 4	01/2003 - 04/2006	2
41361-28250	AZT250,CDT250 T=1.2,MARK 3	01/2003 - 04/2006	2
41361F - WASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1
41361-28230	AZT250,CDT250 T=1.0,MARK 1	01/2003 - 04/2006	2
41361-28240	AZT250,CDT250 T=1.1,MARK 2	01/2003 - 04/2006	2
41361-28260	AZT250,CDT250 T=1.3,MARK 4	01/2003 - 04/2006	2
41361-28250	AZT250,CDT250 T=1.2,MARK 3	01/2003 - 04/2006	2
Linked diagrams
3503
4302

AZT250L-ALPGHW (2003)

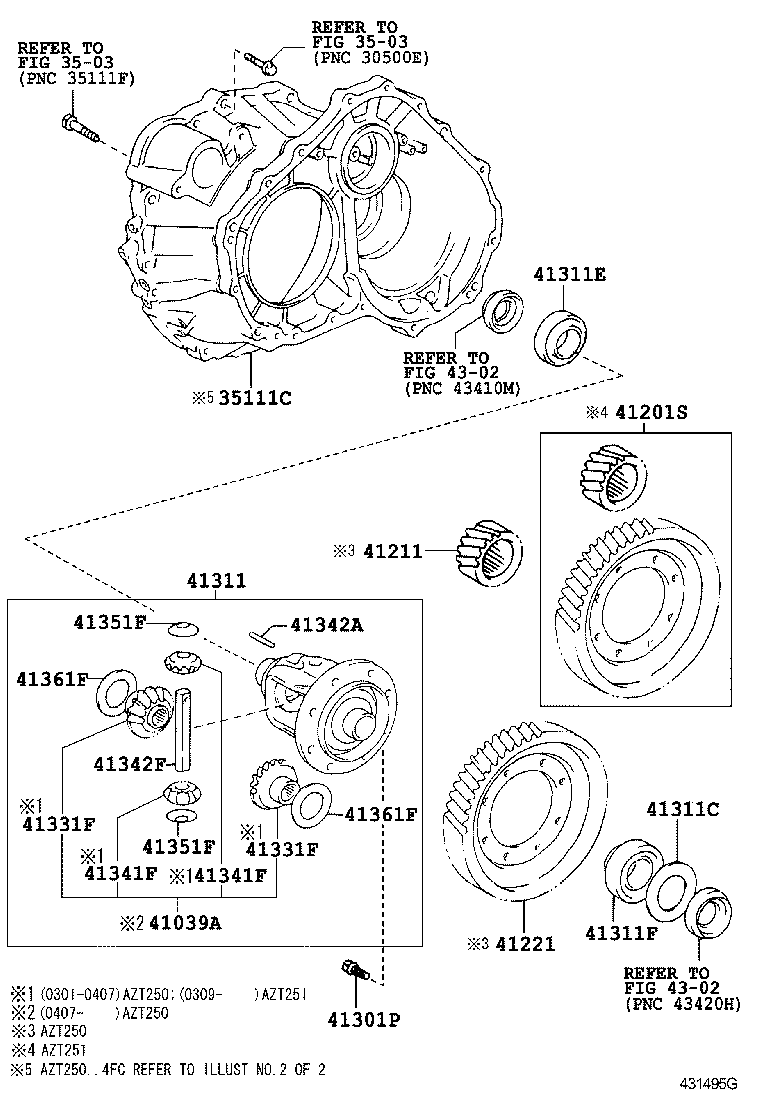

ILLUST NO. 1 OF 2(0301- )AZT25#..ATM

ILLUST NO. 2 OF 2(0301- )AZT250..4FC
