AZT250L-ALPGHW (2003)
Toyota Avensis
Production
Jan 2003
-
Apr 2006
Engine
1AZFSE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0301- )AZT250..4FC

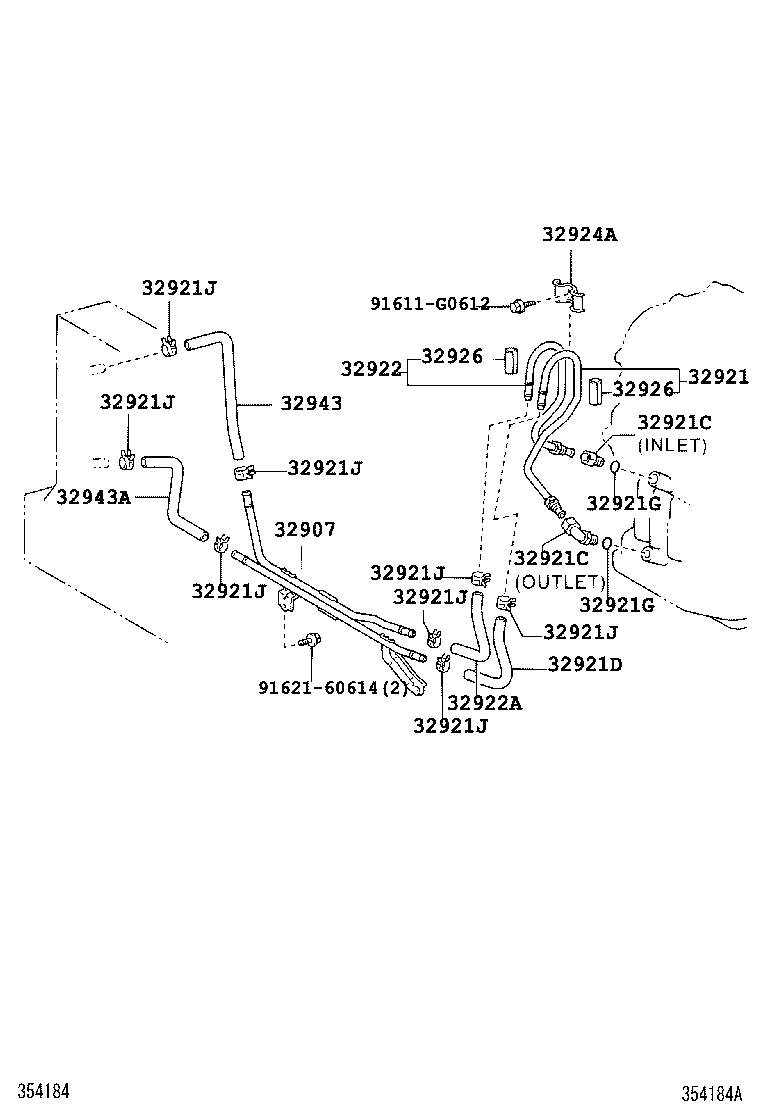

Click highlighted areas on diagram
U241E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-20040 |
AZT250..4FC |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-20520 |
AZT250..4FC |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AZT250..4FC INLET |
1 | ||
| 90407-16010 |
AZT250..4FC OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
AZT250..4FC INLET |
1 | ||
| 90407-16010 |
AZT250..4FC OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17100 |
AZT250..4FC |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AZT25#,ZZT251..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
AZT25#,ZZT251..ATM |
2 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32921J - CLIP(FOR OIL COOLER HOSE) | ||||
| 90467-16022 |
AZT250..4FC |
8 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-20540 |
AZT250..4FC |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
AZT250..4FC |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12074 |
AZT250..4FC |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
AZT250..4FC L=35,ID=10 |
2 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
AZT250..4FC L=35,ID=10 |
2 | ||
| 32943 - HOSE, TRANSMISSION OIL COOLER, NO.1 | ||||
| 32943-20120 |
AZT250..4FC |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 32943-20130 |
AZT250..4FC |
1 | ||
| Common parts | ||||
| 91611-G0612 | ||||
| 91621-60614 | ||||
