AZT250L-ALPGHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )AZT25#..ATM

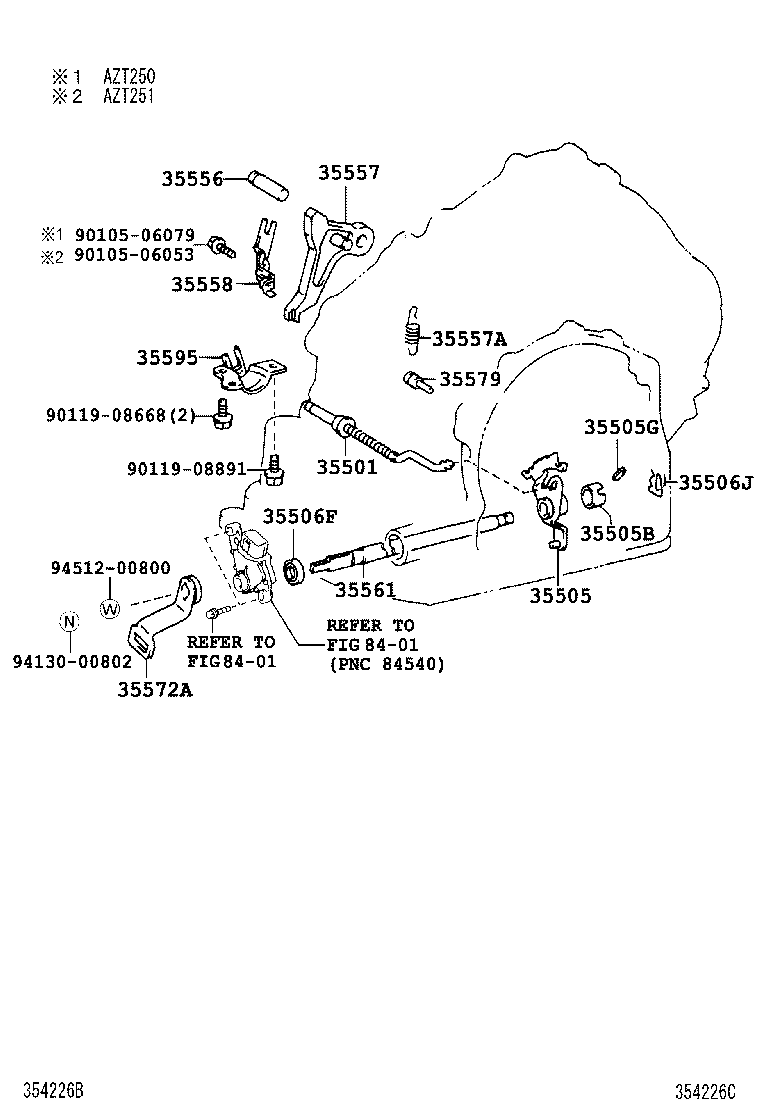

Click highlighted areas on diagram

U151E,U241E

diagram 35501 35505 35505B 35505G 35506F 35506J 35556 35557 35557A 35558 35561 35572A 35579 35595 8401 8401 9010506053 9010506079 9011908668 9011908891 9413000802 9451200800
Part # Description Qty Price
35501 - ROD SUB-ASSY, PARKING LOCK
35501-21010

AZT25#..ATM

 1
35505 - LEVER SUB-ASSY, MANUAL VALVE
35505-21010

AZT25#..ATM

 1
35505B - SPACER (FOR MANUAL VALVE LEVER)
90560-20006

AZT25#,ZZT251..ATM

 1
35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)
90254-04011

AZT25#..ATM

 1
35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)
90311-12002

AZT25#,ZZT251..ATM

 1
35506J - SPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)
90524-09001

AZT25#,ZZT251..ATM

 1
35556 - SHAFT, PARKING LOCK PAWL
35556-32030

AZT250..4FC

 1
35557 - PAWL, PARKING LOCK
35590-32010

AZT250..4FC

 1
35557A - SPRING, TORSION (FOR PARKING LOCK PAWL)
90506-18077

AZT25#..ATM

 1
35558 - CLAMP, PAWL SHAFT
35558-32010

AZT250..4FC

 1
35561 - SHAFT, MANUAL VALVE LEVER
35561-21010

AZT25#..ATM

 1
35572A - LEVER, TRANSMISSION CONTROL SHAFT
35572-48010

AZT250..4FC

 1
35579 - PIN, PARKING LOCK PAWL
35594-21010

AZT250..4FC

 1
35595 - BRACKET, PARKING LOCK PAWL
35595-21010

AZT25#..ATM

 1
Common parts
90105-06053
90105-06079
90119-08668
90119-08891
94130-00802
94512-00800
Linked diagrams
8401
