AZT250L-ALPGHW (2003)
Toyota Avensis
(0301- )AZT250..4FC
U241E

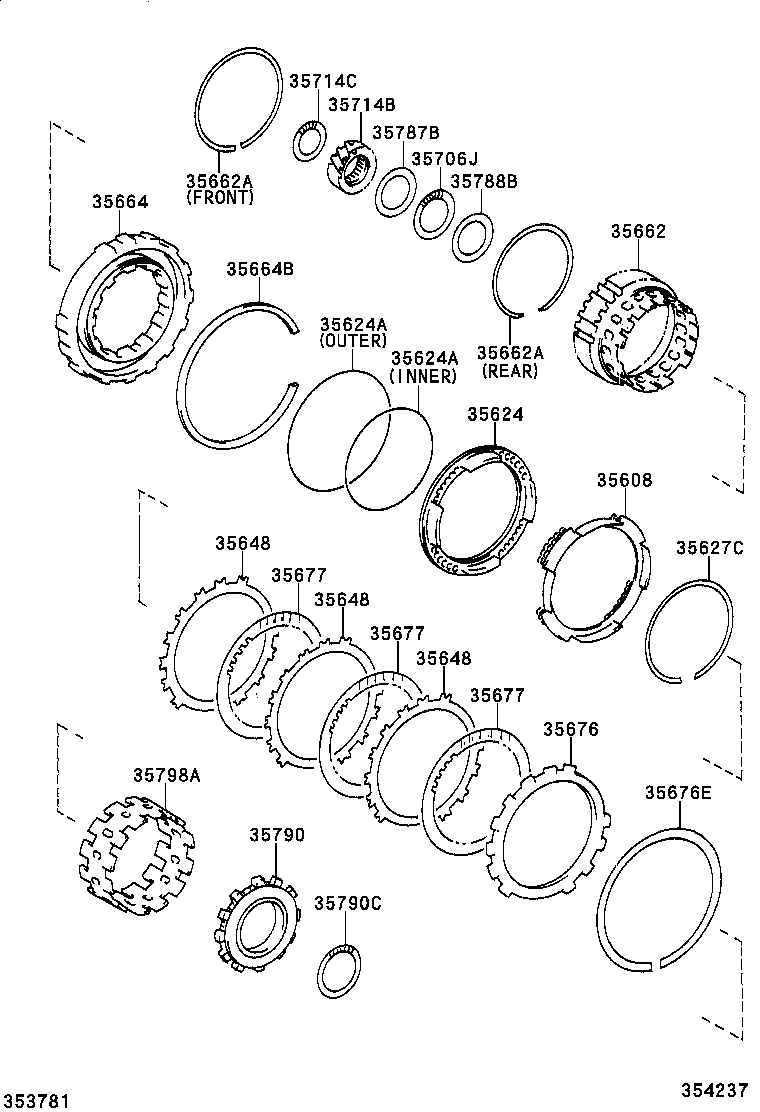

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35608 - SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN | ||||
| 35608-21010 |
AZT25#..ATM |
1 | ||
| 35624 - PISTON, 2ND BRAKE | ||||
| 35624-33030 |
AZT250..4FC |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99093 |
AZT25#..ATM OUTER |
1 | ||
| 90301-99095 |
AZT25#..ATM INNER |
1 | ||
| 35624A - RING, O (FOR 2ND BRAKE PISTON) | ||||
| 90301-99093 |
AZT25#..ATM OUTER |
1 | ||
| 90301-99095 |
AZT25#..ATM INNER |
1 | ||
| 35627C - RING, SHAFT SNAP(FOR 2ND BRAKE PISTON RETURN SPRING SEA | ||||
| 90520-99036 |
AZT25#..ATM |
1 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-21010 |
AZT250..4FC T=2.0 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-21010 |
AZT250..4FC T=2.0 |
3 | ||
| 35648 - PLATE, CLUTCH (FOR 2ND BRAKE) | ||||
| 35691-21010 |
AZT250..4FC T=2.0 |
3 | ||
| 35662 - HUB, BRAKE | ||||
| 35662-21010 |
AZT250..4FC |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90520-99033 |
AZT25#..ATM FRONT |
1 | ||
| 90520-99024 |
AZT25#..ATM REAR |
1 | ||
| 35662A - RING, SNAP (FOR BRAKE HUB) | ||||
| 90520-99033 |
AZT25#..ATM FRONT |
1 | ||
| 90520-99024 |
AZT25#..ATM REAR |
1 | ||
| 35664 - CYLINDER, 2ND BRAKE | ||||
| 35664-33010 |
AZT25#..ATM |
1 | ||
| 35664B - RING, HOLE SNAP (FOR 2ND BRAKE CYLINDER) | ||||
| 90520-99027 |
AZT25#..ATM |
1 | ||
| 35676 - FLANGE, BRAKE (FOR 2ND BRAKE) | ||||
| 35676-21090 |
AZT25#..ATM T=3.2,MARK 3 |
1 | ||
| 35676-21070 |
AZT25#..ATM T=3.0,MARK 1 |
1 | ||
| 35676-21020 |
AZT250..4FC T=2.9,MARK 0 |
1 | ||
| 35676-21110 |
AZT25#..ATM T=3.4,MARK 5 |
1 | ||
| 35676-21120 |
AZT25#..ATM T=3.5,MARK 6 |
1 | ||
| 35676-21100 |
AZT25#..ATM T=3.3,MARK 4 |
1 | ||
| 35676-21080 |
AZT25#..ATM T=3.1,MARK 2 |
1 | ||
| 35676-21130 |
AZT25#..ATM T=3.6,MARK 7 |
1 | ||
| 35676-21010 |
AZT250..4FC T=3.7,MARK 8 |
1 | ||
| 35676E - RING, HOLE SNAP (FOR 2ND BRAKE) | ||||
| 90520-99026 |
AZT25#..ATM |
1 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-21010 |
AZT250..4FC |
3 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-21010 |
AZT250..4FC |
3 | ||
| 35677 - DISC, CLUTCH (FOR 2ND BRAKE) | ||||
| 35681-21010 |
AZT250..4FC |
3 | ||
| 35706J - BEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR) | ||||
| 90374-38002 |
AZT250..4FC |
1 | ||
| 35714B - GEAR, INPUT SUN | ||||
| 35714-21010 |
AZT250..4FC |
1 | ||
| 35714C - BEARING, THRUST NEEDLE ROLLER (FOR INPUT SUN GEAR) | ||||
| 90374-34006 |
AZT250..4FC |
1 | ||
| 35787B - RACE, THRUST BEARING, NO.2 | ||||
| 35787-21010 |
AZT250..4FC |
1 | ||
| 35788B - RACE, THRUST BEARING, NO.3 | ||||
| 35788-21010 |
AZT250..4FC |
1 | ||
| 35790 - CLUTCH ASSY, 1 WAY | ||||
| 35790-33020 |
AZT250..4FC |
1 | ||
| 35790C - BEARING, THRUST NEEDLE ROLLER | ||||
| 90374-53001 |
AZT250..4FC |
1 | ||
| 35798A - SLEEVE, 1WAY CLUTCH, OUTER | ||||
| 35798-21011 |
AZT250..4FC |
1 | ||
