AZT250L-ALPGHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

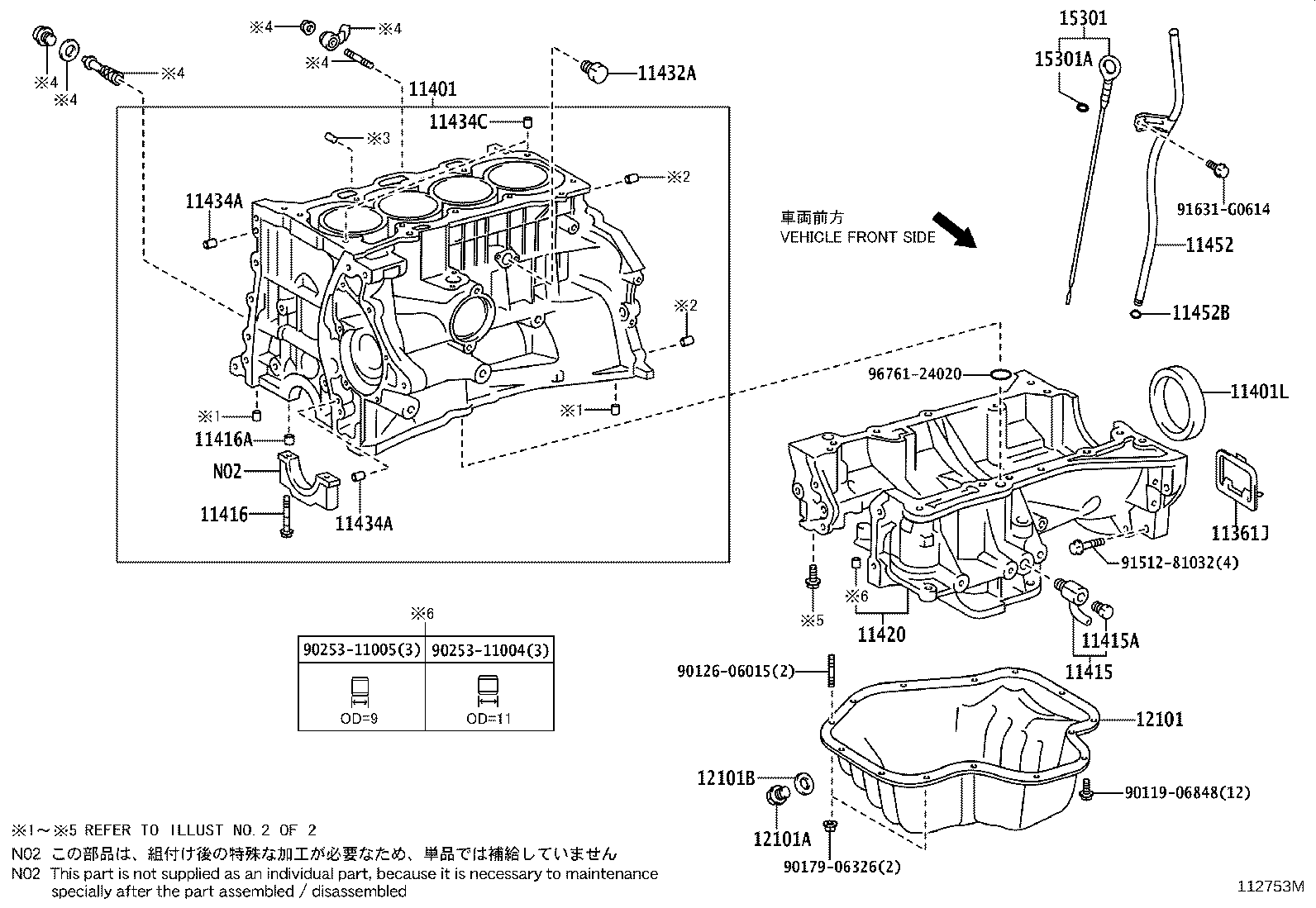

ILLUST NO. 1 OF 2(0301- )1AZ#

Click highlighted areas on diagram

diagram 11361J 11401 11401L 11415 11415A 11416 11416A 11420 11432A 11434A 11434A 11434C 11452 11452B 12101 12101A 12101B 15301 15301A 9011906848 9012606015 9017906326 9025311004 9025311005 9151281032 91631G0614 9676124020
Part # Description Qty Price
11361J - COVER, FLYWHEEL HOUSING UNDER
11361-28010

1AZ#,2AZFSE..AZT25#

 1
11401 - BLOCK SUB-ASSY, CYLINDER
11410-29115

1AZ#..AZT250

 1
11410-29315

1AZ#..AZT250

 1
11410-29195

1AZ#..AZT250

 1
11401L - SEAL, ENGINE REAR OIL
90311-89003

1AZ#,2AZFSE..AZT25#

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09120

1AZ#..AZT250

 1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

1AZ#,2AD#..ADT251,AZT250

 1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90910-02124

1AZ#,2AZFSE..AZT25#

 10
11416A - PIN, RING(FOR CRANKSHAFT BEARING CAP SET)
90253-13017

1AZ#,2AZFSE..AZT25#

 10
11420 - CRANKCASE ASSY, STIFFENING
11421-28020

1AZ#..AZT250

 1
11432A - PLUG, W/HEAD TAPER SCREW, NO.1
90345-52001

1AZ#..AZT250

 1
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1AZ#,2AZFSE..AZT25#

L=18,OD=8

 2
90250-08074

1AZ#..AZT250

L=15,OD=8

 2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120

1AZ#,2AZFSE..AZT25#

L=18,OD=8

 2
90250-08074

1AZ#..AZT250

L=15,OD=8

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-14003

1AZ#,2AZFSE..AZT25#

L=12,OD=14

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-28011

1AZFSE..AZT250

 1
11452-28010

1AZFSE,2AZFSE..AZT25#

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

1AZ#,2AZFSE..AZT25#

 1
12101 - PAN SUB-ASSY, OIL
12101-28050

1AZ#..AZT250

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-28050

1AZ#..AZT250

 1
15301-28051

1AZ#..AZT250

 1
15301-28020

1AZ#..AZT250

 1
15301A - RING, O(FOR OIL LEVEL GAGE)
96741-19005

1AZ#..AZT250

 1
96741-19005

1AZ#..AZT250

 1
96741-19005

1AZ#..AZT250

 1
Common parts
90119-06848
90126-06015
90179-06326
90253-11004
90253-11005
91512-81032
91631-G0614
96761-24020

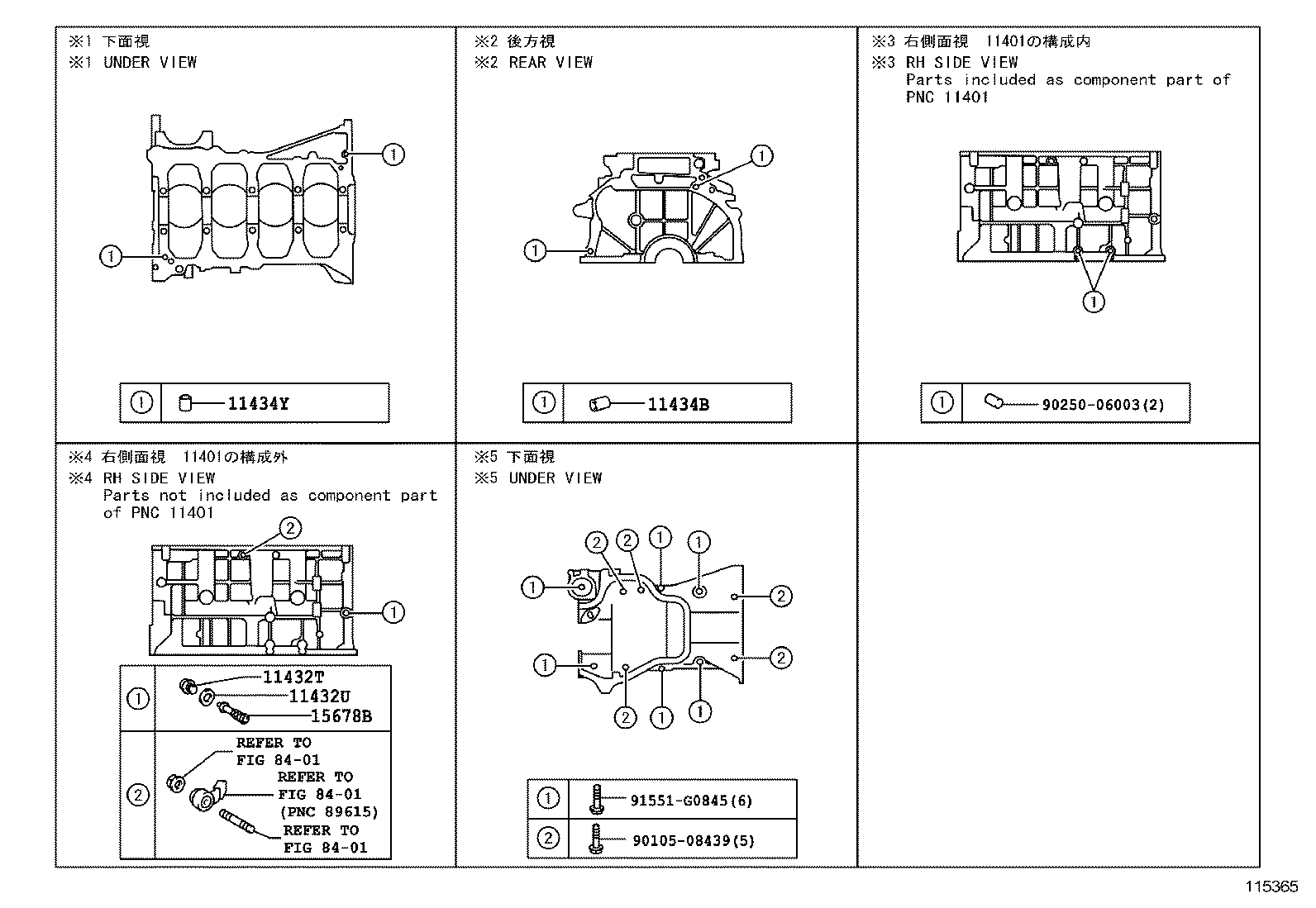

ILLUST NO. 2 OF 2(0301- )1AZ#,2AZFSE

Click highlighted areas on diagram

diagram 11432T 11432U 11434B 11434Y 15678B 8401 8401 8401 9010508439 9025006003 91551G0845
Part # Description Qty Price
11432T - PLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR CYLINDER BLOCK)
90341-14013

1AZ#,2AZFSE..AZT25#

 1
11432U - GASKET, STRAIGHT SCREW PLUG NO.1(FOR CYLINDER BLOCK)
90430-14011

1AZ#,2AZFSE..AZT25#

 1
90430-14009

1AZ#..AZT250

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

1AZ#,2AD#,2AZFSE..ADT251,AZT25#

L=22,OD=10

 2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-08074

1AZ#,2AZFSE..AZT25#

 2
15678B - FILTER, OIL CONTROL VALVE
15678-28010

1AZ#,2AZFSE..AZT25#

 1
Common parts
90105-08439
90250-06003
91551-G0845
Linked diagrams
8401
