AZT250L-AEMEKW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0301- )1AZFE

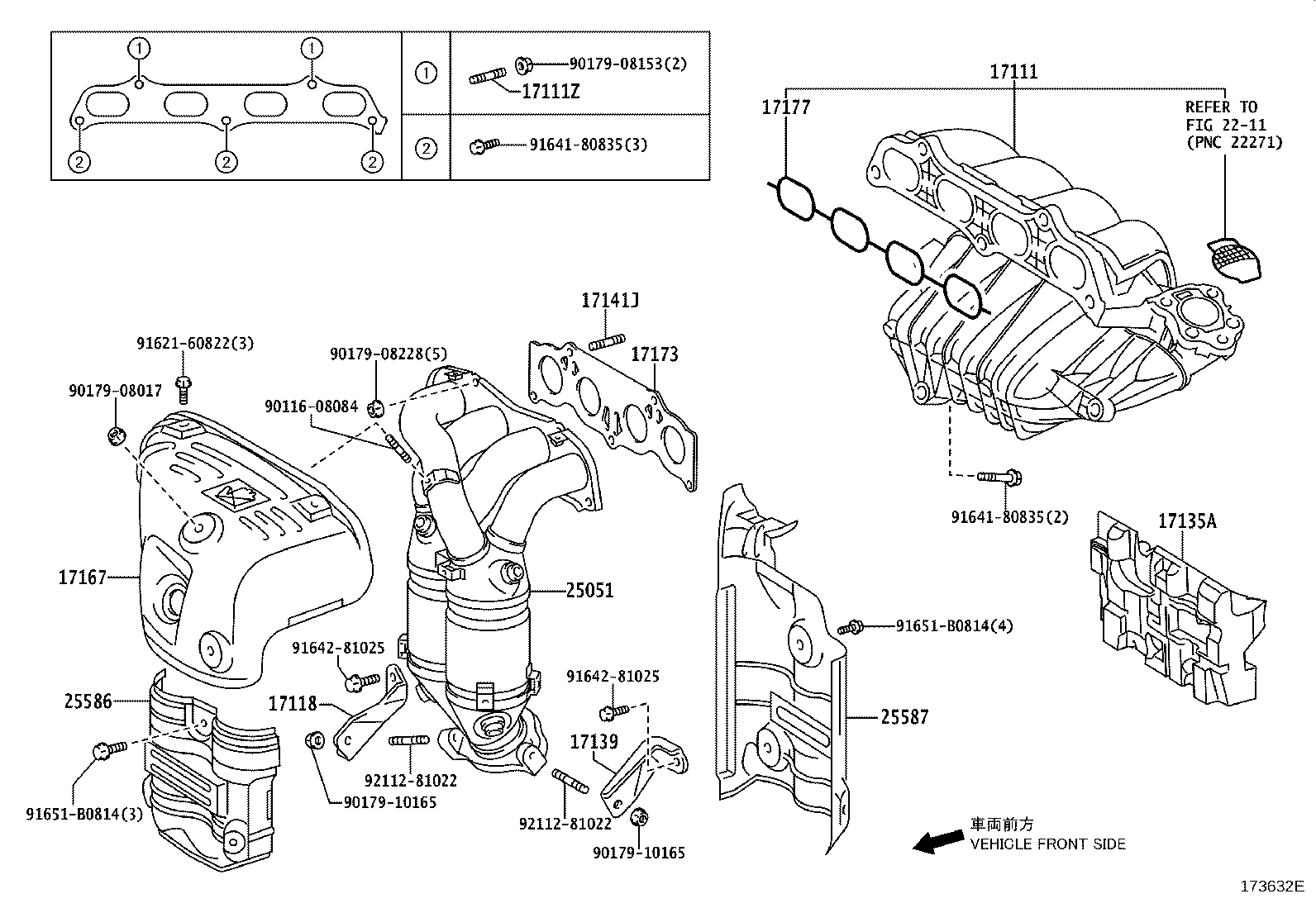

Click highlighted areas on diagram

diagram 17111 17111Z 17118 17135A 17139 17141J 17167 17173 17177 2211 25051 25586 25587 9011608084 9017908017 9017908153 9017908228 9017910165 9017910165 9162160822 9164180835 9164180835 9164281025 9164281025 91651B0814 91651B0814 9211281022 9211281022
Part # Description Qty Price
17111 - MANIFOLD, INTAKE
17120-28010

1AZFE..AZT250

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
90126-08026

1AZFE..AZT250

 2
17118 - STAY, MANIFOLD
17118-28020

1AZ#,2AZFSE..AZT25#

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-28010

1AZFE..AZT250

 1
17135-28011

1AZFE..AZT250

 1
17139 - STAY, MANIFOLD, NO.2
17139-28010

1AZ#,2AZFSE..AZT25#

 1
17141J - BOLT, STUD(FOR EXHAUST MANIFOLD, RH)
90126-08037

1AZ#,2AZFSE..AZT25#

 5
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-28010

1AZ#,2AZFSE..AZT25#

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-28010

1AZ#,2AZFSE..AZT25#

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-28010

1AZFE..AZT250

 1
25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25051-28040

1AZFE..AZT250

*115=TOYOTA/00-03/Y

 1
25051-28041

1AZFE..AZT250

*114=TOYOTA/28041/Y

 1
25586 - INSULATOR, MANIFOLD CONVERTER, NO.1
25586-28010

1AZ#,2AZFSE..AZT25#

 1
25587 - INSULATOR, MANIFOLD CONVERTER, NO.2
25587-28010

1AZ#,2AZFSE..AZT25#

 1
Common parts
90116-08084
90179-08017
90179-08153
90179-08228
90179-10165
91621-60822
91641-80835
91642-81025
91651-B0814
92112-81022
