AZT250L-AEMEHW (2003)

Toyota Avensis

Production Jan 2003 - Apr 2006
Engine 1AZFSE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

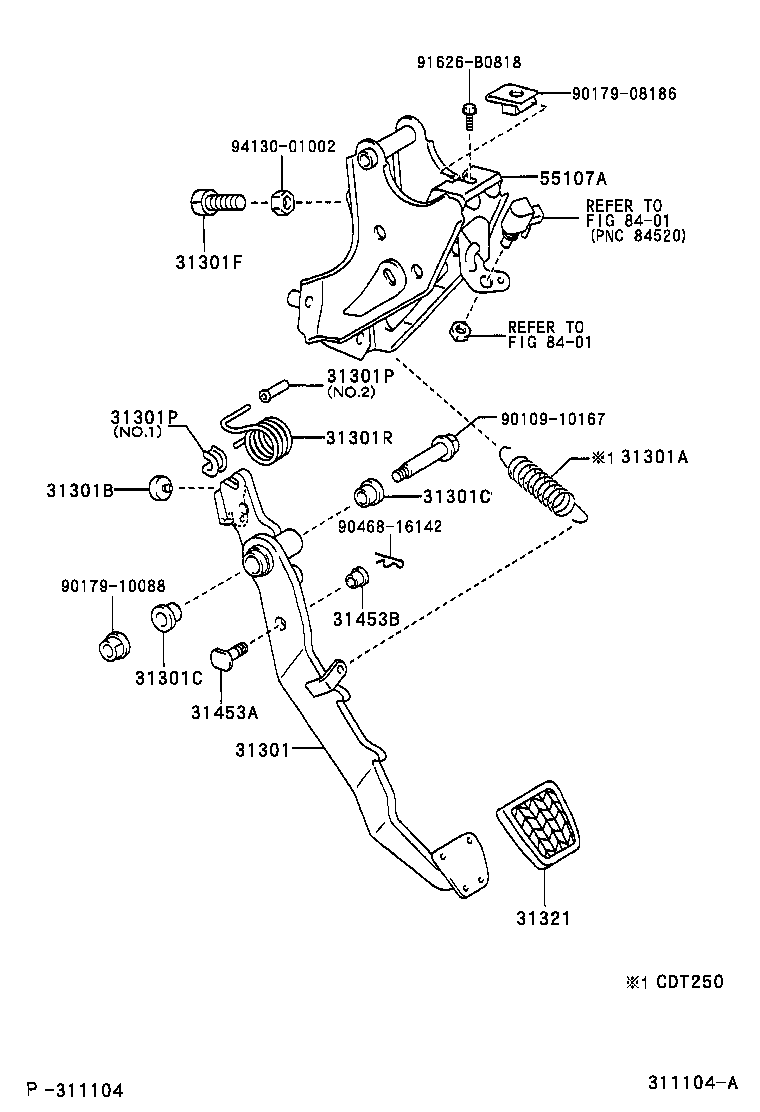

ILLUST NO. 1 OF 2(0301- )AZT250,CDT250..LHD..5F ; (0504- )ADT25#..LHD

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301C 31301C 31301F 31301P 31301P 31301R 31321 31453A 31453B 55107A 8401 8401 9010910167 9017908186 9017910088 9046816142 91626B0818 9413001002
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-05060

AZT250..LHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

ADT251,AZT250,CDT250,ZZT25#..LHD..MTM

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

ADT251,AZT250,CDT250,ZZT25#..MTM

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

ADT251,AZT250,CDT250..MTM

NO.1

 1
90389-05019

ADT251,AZT250,CDT250..MTM

NO.2

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90386-05017

ADT251,AZT250,CDT250..MTM

NO.1

 1
90389-05019

ADT251,AZT250,CDT250..MTM

NO.2

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03100

AZT250..5F

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90249-08143

ADT251,AZT250,CDT250,ZZT25#..MTM

L=30

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

ADT251,AZT250,CDT250,ZZT25#..MTM

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-05080

ADT251,AZT250,CDT250..LHD..MTM

 1
Common parts
90109-10167
90179-08186
90179-10088
90468-16142
91626-B0818
94130-01002
Linked diagrams
8401

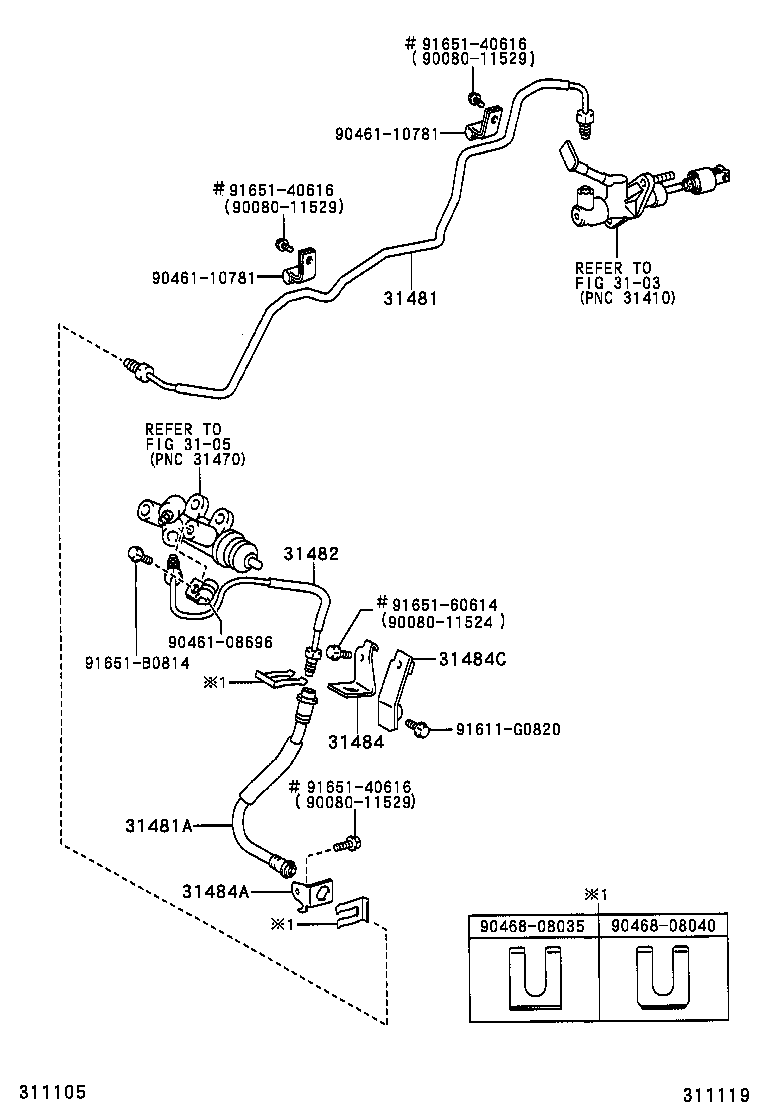

ILLUST NO. 2 OF 2(0301- )AZT250..LHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31484 31484A 31484C 9008011524 9008011529 9008011529 9008011529 9046108696 9046110781 9046110781 9046808035 9046808040 91611G0820 9165140616 9165140616 9165140616 9165160614 91651B0814
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-05170

AZT250..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90080-94130

ADT251,AZT250,CDT250..MTM

C.F.GOMMA SPA

 1
90080-94130

ADT251,AZT250,CDT250..MTM

 1
90947-02D12

ADT251,AZT250,CDT250..MTM

TOYODA GOSEI

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-05110

AZT250..5F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-12400

AZT250,CDT250..5F

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-12380

ADT251,AZT250,CDT250..MTM

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-20320

AZT250,CDT250..5F

 1
Common parts
90080-11524
90080-11529
90461-08696
90461-10781
90468-08035
90468-08040
91611-G0820
91651-40616
91651-60614
91651-B0814
Linked diagrams
3103
3105
