AZT220R-AWMEHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )

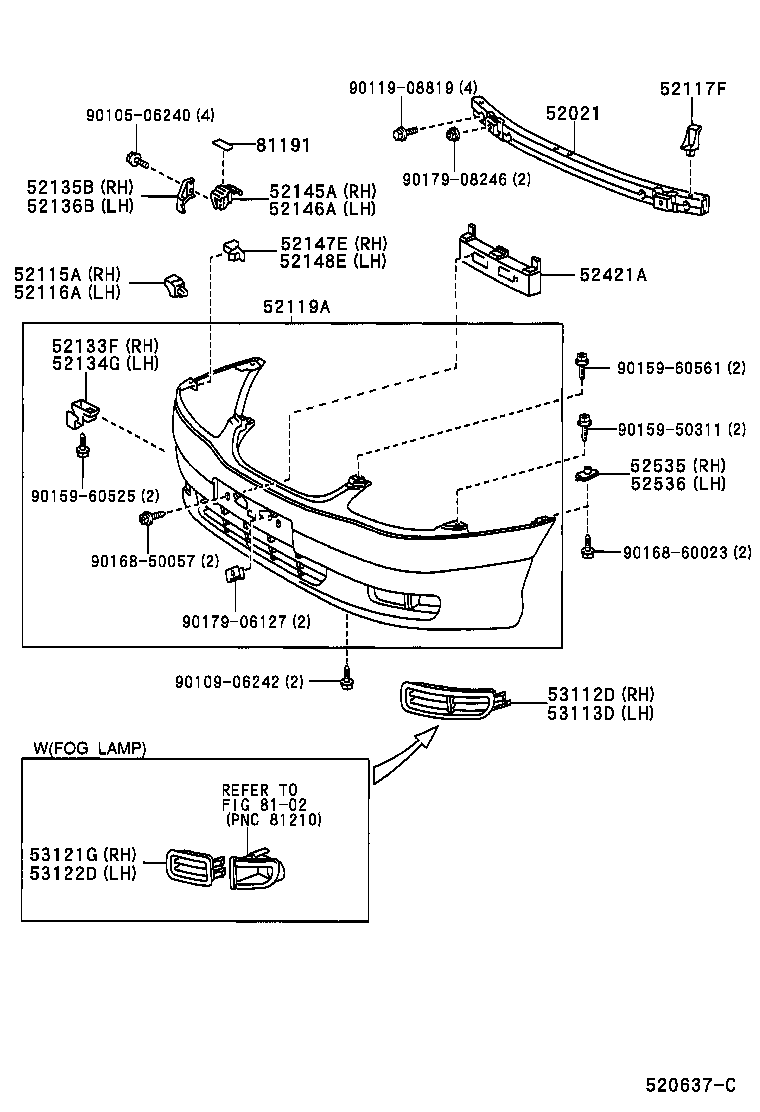

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52117F 52119A 52133F 52134G 52135B 52136B 52145A 52146A 52147E 52148E 52421A 52535 52536 53112D 53113D 53121G 53122D 8102 81191 9010506240 9010906242 9011908819 9015950311 9015960525 9015960561 9016850057 9016860023 9017906127 9017908246
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-20290

AZT220,CDT220,ST220,ZZT22#

(J)

 1
52021-05030

AZT220,CDT220,ST220,ZZT22#

(L)

 1
52021-05030

AZT220,CDT220,ST220,ZZT22#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52117F - SUPPORT, FRONT BUMPER, UPPER
52117-20120

AZT220,CDT220,ST220,ZZT22#

 2
52119A - COVER, FRONT BUMPER
52119-05903

AZT220,CDT220,ST220,ZZT22#

 1
52133F - BRACKET, FRONT BUMPER, RH
52133-20140

AZT220,CDT220,ST220,ZZT22#

 1
52134G - BRACKET, FRONT BUMPER, LH
52134-20120

AZT220,CDT220,ST220,ZZT22#

 1
52135B - BRACKET, FRONT BUMPER, NO.1 RH
52135-20070

AZT220,CDT220,ST220,ZZT22#

 1
52136B - BRACKET, FRONT BUMPER, NO.1 LH
52136-20060

AZT220,CDT220,ST220,ZZT22#

 1
52145A - STAY, FRONT BUMPER, NO.2 RH
52145-20240

AZT220,CDT220,ST220,ZZT22#

 1
52146A - STAY, FRONT BUMPER, NO.2 LH
52146-20230

AZT220,CDT220,ST220,ZZT22#

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-20200

AZT220,CDT220,ST220,ZZT22#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-20200

AZT220,CDT220,ST220,ZZT22#

 1
52421A - PAD, FRONT BUMPER
52421-20030

AZT220,CDT220,ST220,ZZT22#

 1
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
53121G - PLATE, RADIATOR GRILLE FINISH, RH
53121-05020

AZT220,CDT220,ST220,ZZT22#

 1
53122D - PLATE, RADIATOR GRILLE FINISH, LH
53122-05020

AZT220,ST220,ZZT22#

 1
81191 - TAPE, HEADLAMP
81191-05010

AZT220,CDT220,ST220,ZZT22#

 2
Common parts
90105-06240
90109-06242
90119-08819
90159-50311
90159-60525
90159-60561
90168-50057
90168-60023
90179-06127
90179-08246
Linked diagrams
8102
