AZT220R-AWMEHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )1AZFSE

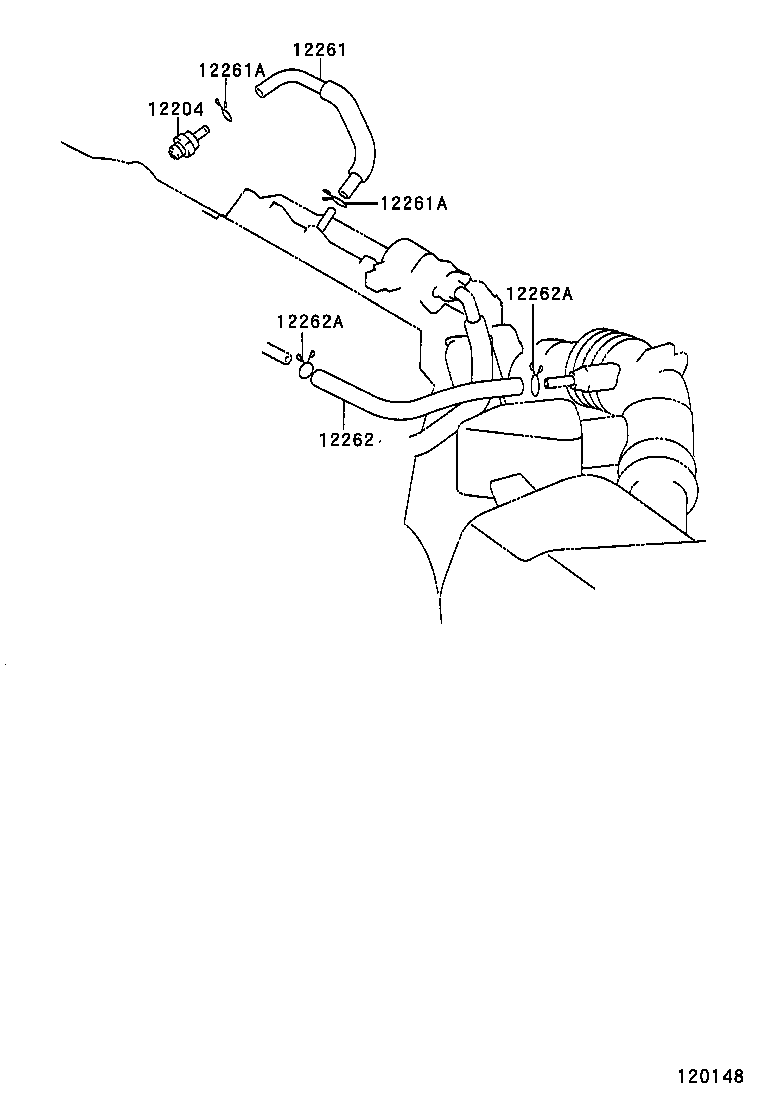

Click highlighted areas on diagram

diagram 12204 12261 12261A 12261A 12262 12262A 12262A
Part # Description Qty Price
12204 - VALVE SUB-ASSY, VENTILATION
12204-28020

1AZFSE..AZT220

 1
12261 - HOSE, VENTILATION
12261-28040

1AZFSE..AZT220

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-13103

1AZFSE..AZT220

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-13103

1AZFSE..AZT220

 2
12262 - HOSE, VENTILATION, NO.2
12262-28050

1AZFSE..AZT220

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

1AZFSE..AZT220

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-21152

1AZFSE..AZT220

 2
