AZT220R-ALMEHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )AZT220..RHD

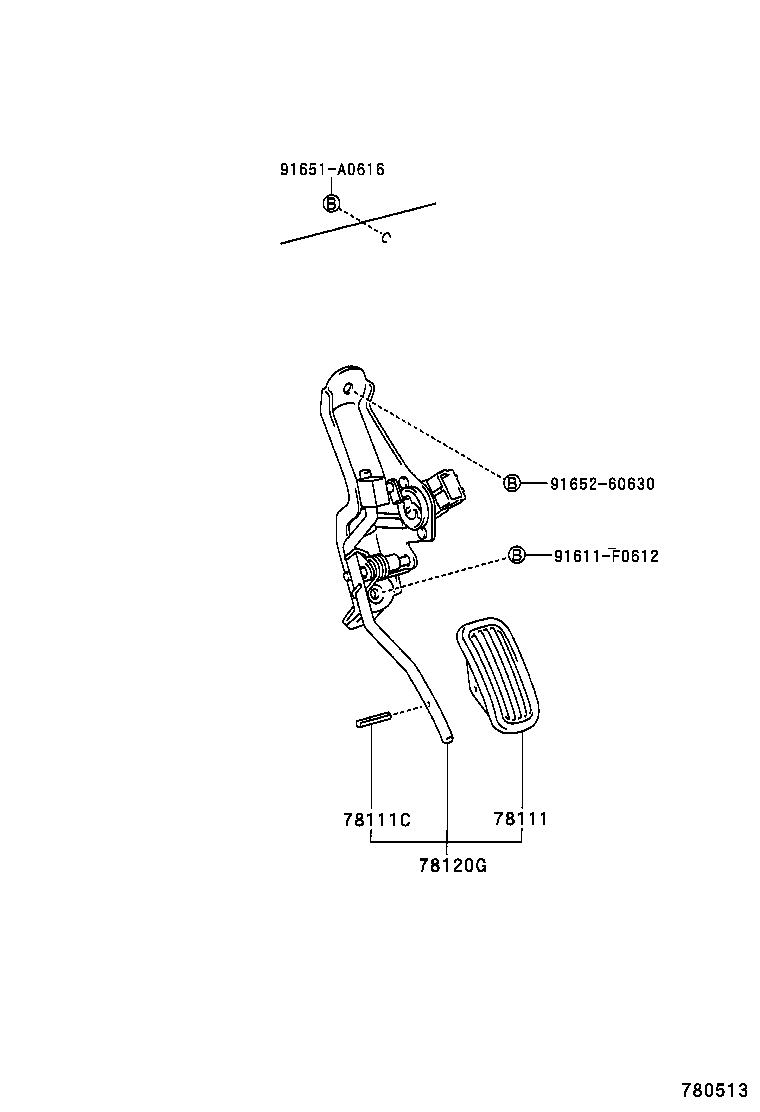

Click highlighted areas on diagram

diagram 78111 78111C 78120G 91611F0612 91651A0616 9165260630
Part # Description Qty Price
78111C - PIN (FOR ACCELERATOR PEDAL)
90254-04019

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
78120G - ROD ASSY, ACCELERATOR PEDAL
78010-20090

AZT220..RHD

 1
Common parts
91611-F0612
91651-A0616
91652-60630
