AZT220R-ALMEHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )AZT220

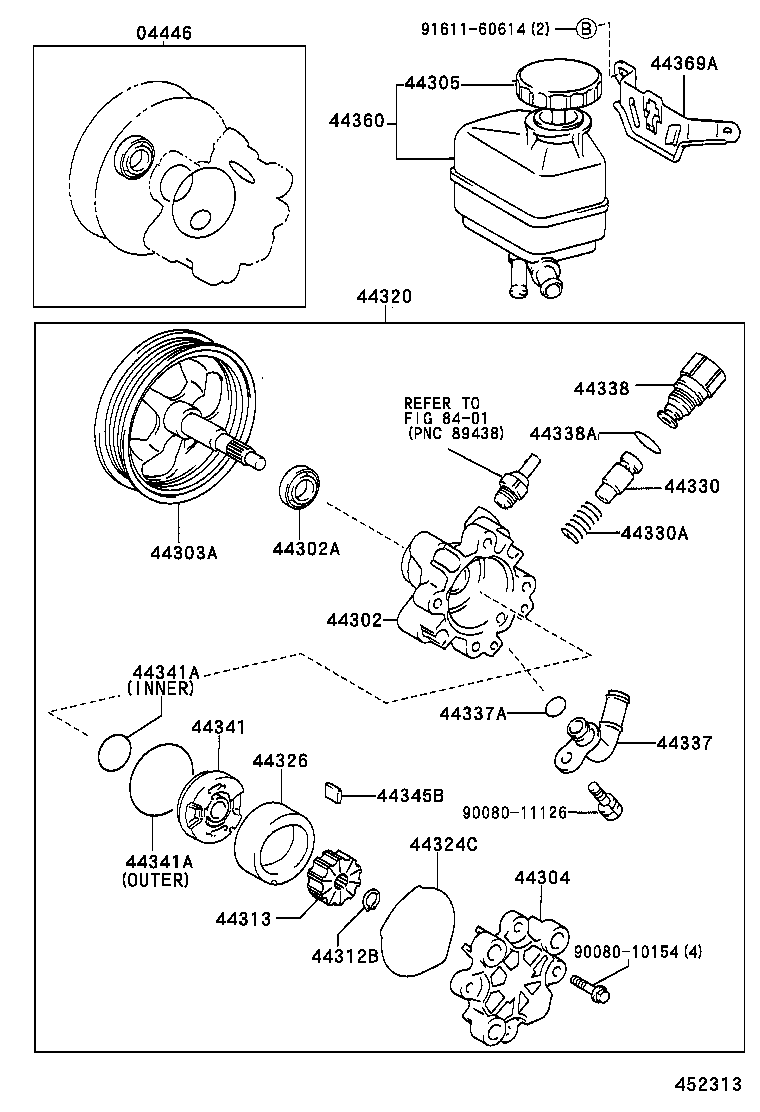

Click highlighted areas on diagram

diagram 04446 44302 44302A 44303A 44304 44305 44312B 44313 44320 44324C 44326 44330 44330A 44337 44337A 44338 44338A 44341 44341A 44341A 44345B 44360 44369A 8401 8401 9008010154 9008011126 9161160614
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-02050

AZT220,CDT220,ZZT22#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-05010

AZT220,ZZT22#

 1
44302A - SEAL, OIL, NO.1(FOR VANE PUMP HOUSING)
90080-31063

AZT220,CDT220,ZZT22#

 1
44303A - SHAFT SUB-ASSY, W/PULLEY
44303-05010

AZT220

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-02021

AZT220,ZZT22#

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-20041

AZT220,CDT220,CT220,ST220,ZZT22#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90080-52097

AZT220,CDT220,ZZT22#

 1
44313 - ROTOR, VANE PUMP
44313-02150

AZT220,CDT220,ZZT22#

MARK 4

 1
44313-02120

AZT220,CDT220,ZZT22#

MARK 1

 1
44313-02130

AZT220,CDT220,ZZT22#

MARK 2

 1
44313-02110

AZT220,CDT220,ZZT22#

MARK 0

 1
44313-02140

AZT220,CDT220,ZZT22#

MARK 3

 1
44320 - PUMP ASSY, VANE
44310-05070

AZT220

 1
44324C - RING, O(FOR PUMP HOUSING REAR)
90080-30057

AZT220,CDT220,ZZT22#

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-02240

AZT220,CDT220,ZZT22#

MARK 3

 1
44325-02210

AZT220,CDT220,ZZT22#

MARK 0

 1
44325-02230

AZT220,CDT220,ZZT22#

MARK 2

 1
44325-02250

AZT220,CDT220,ZZT22#

MARK 4

 1
44325-02220

AZT220,CDT220,ZZT22#

MARK 1

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-05070

AZT220,CDT220

MARK A

 1
44330-05120

AZT220,CDT220

MARK F

 1
44330-05100

AZT220,CDT220

MARK D

 1
44330-05110

AZT220,CDT220

MARK E

 1
44330-05090

AZT220,CDT220

MARK C

 1
44330-05080

AZT220,CDT220

MARK B

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90080-50261

AZT220,CDT220,ZZT22#

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-05020

AZT220

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90080-30059

AZT220,CDT220,ZZT22#

 1
44338 - UNION, PRESSURE PORT
44308-05010

AZT220,CDT220,ZZT22#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90080-30056

AZT220,CDT220,ZZT22#

 1
44341 - PLATE, VANE PUMP SIDE, FRONT
44341-02011

AZT220,CDT220,ZZT22#

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90080-30055

AZT220,CDT220,ZZT22#

INNER

 1
90080-30058

AZT220,CDT220,ZZT22#

OUTER

 1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90080-30055

AZT220,CDT220,ZZT22#

INNER

 1
90080-30058

AZT220,CDT220,ZZT22#

OUTER

 1
44345B - PLATE, VANE PUMP
44345-02130

AZT220,CDT220,ZZT22#

MARK 2

 10
44345-02140

AZT220,CDT220,ZZT22#

MARK 3

 10
44345-02150

AZT220,CDT220,ZZT22#

MARK 4

 10
44345-02120

AZT220,CDT220,ZZT22#

MARK 1

 10
44345-02110

AZT220,CDT220,ZZT22#

MARK 0

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-20240

AZT220

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-20020

AZT220,CDT220,CT220,ST220,ZZT22#

 1
Common parts
90080-10154
90080-11126
91611-60614
Linked diagrams
8401
