AZT220R-ALMEHW (2000)
Toyota Avensis
Production
Jul 2000
-
Jan 2003
Engine
1AZFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0007- )1AZFSE

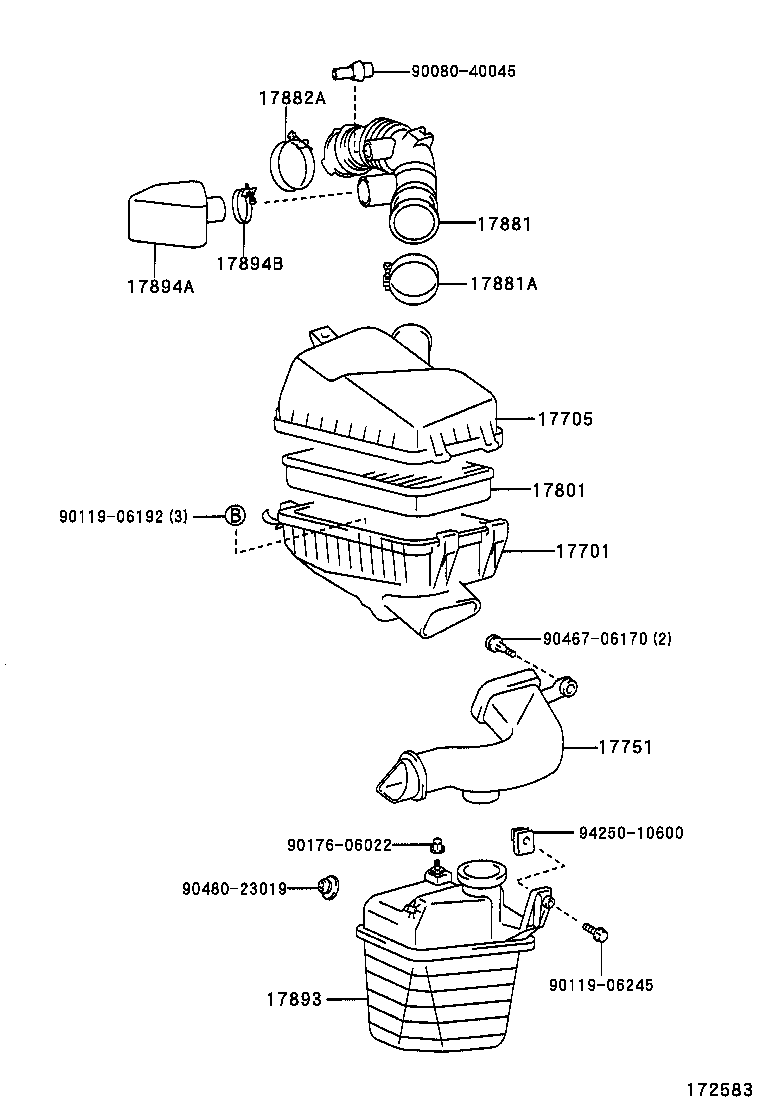

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17701 - CASE SUB-ASSY, AIR CLEANER | ||||
| 17701-02091 |
1AZFSE..AZT220 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-02100 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-02080 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-02050 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-0H010 |
1AZFSE..AZT220 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10710 |
1AZFSE..AZT220 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
1AZFSE..AZT220 |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-02040 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-03010 |
1AZFSE..AZT220 |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10530 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 |
1 | ||
| Common parts | ||||
| 90080-40045 | ||||
| 90119-06192 | ||||
| 90119-06245 | ||||
| 90176-06022 | ||||
| 90467-06170 | ||||
| 90480-23019 | ||||
| 94250-10600 | ||||
