AZT220R-AEMNHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

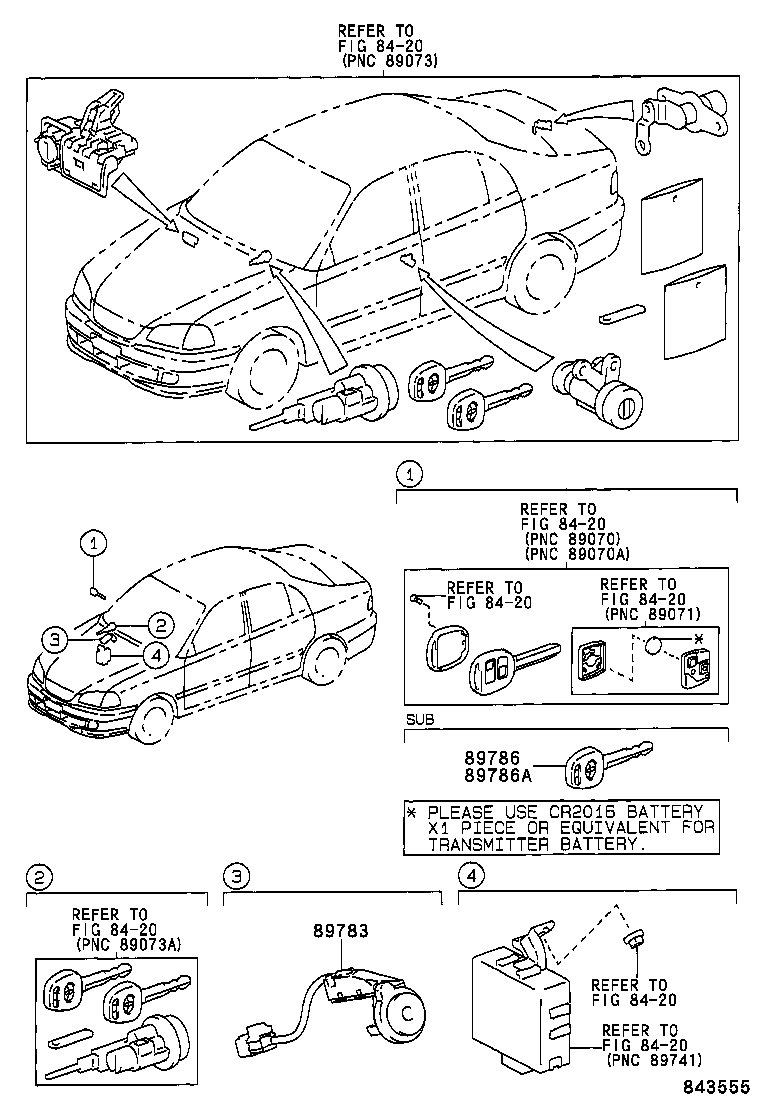

ILLUST NO. 1 OF 2(0007- )AZT220,ZZT22#

Click highlighted areas on diagram

IMMOBILIZER

diagram 8420 8420 8420 8420 8420 8420 8420 89783 89786 89786A
Part # Description Qty Price
89783 - AMPLIFIER, TRANSPONDER KEY
89783-02010

AZT220,ZZT22#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-05020

AZT220,ZZT22#

 1
89786A - TRANSMITTER, TRANSPONDER CUT KEY SUB
89786-05030

AZT220,ZZT22#

 1
Linked diagrams
8420
