AZT220R-AEMNHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )AZT220..RHD

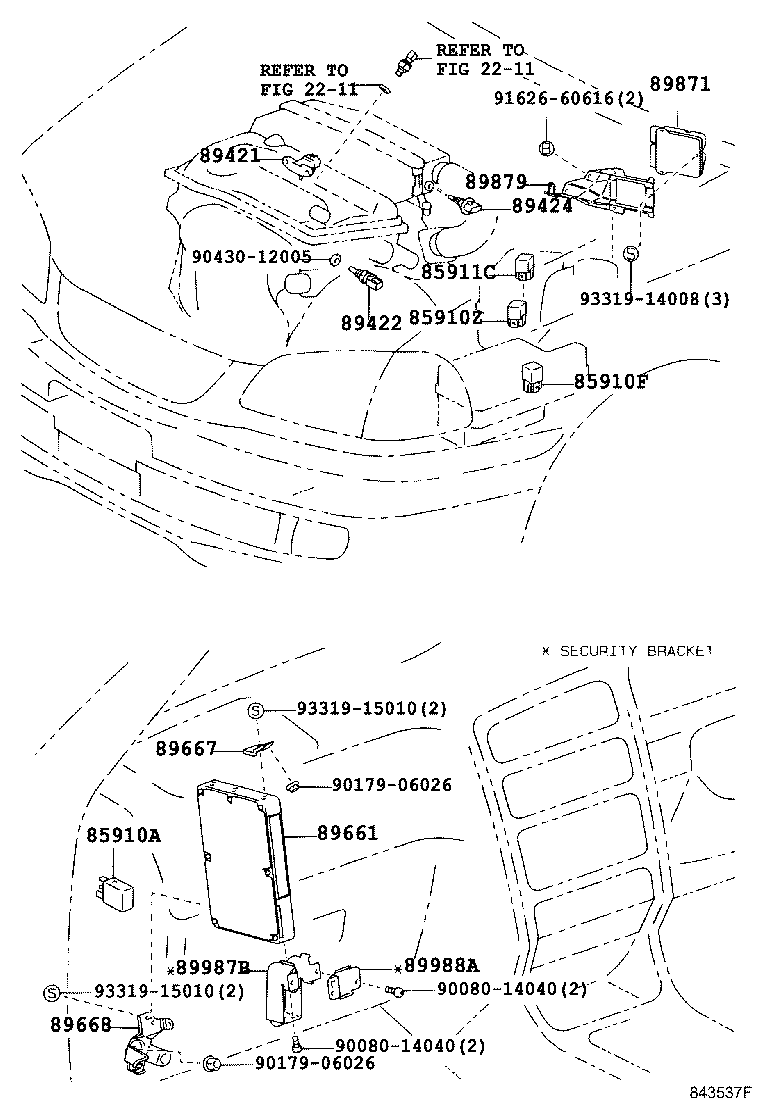

Click highlighted areas on diagram

diagram 2211 2211 85910A 85910F 85910Z 85911C 89421 89422 89424 89661 89667 89668 89871 89879 89987B 89988A 9008014040 9008014040 9017906026 9017906026 9043012005 9162660616 9331914008 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
90080-87013

AT22#,AZT220,ST220,ZZT22#

 1
85910F - RELAY, COMPUTER (FOR EFI)
90080-87013

AT22#,AZT220,ST220,ZZT22#

 1
85910Z - RELAY, INJECTION (FOR EFI)
90080-87013

AZT220

 1
85911C - RELAY, EFI 2
90080-87013

AZT220

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89421-20190

AZT220

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-35010

AT220..RHD;AT221,AZT220,ST220,ZZT22#

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

AT22#,AZT220,ST220

 1
89661 - COMPUTER, ENGINE CONTROL
89661-05530

AZT220..MTM

PART NUMBER LABEL=89661-05530

 1
89661-05511

AZT220..MTM

PART NUMBER LABEL=89661-05511

 1
89661-05431

AZT220

PART NUMBER LABEL=89661-05431

 1
89661-05510

AZT220

PART NUMBER LABEL=89661-05510

 1
89661-05432

AZT220..MTM

PART NUMBER LABEL=89661-05432

 1
89661-05550

AZT220..MTM

PART NUMBER LABEL=89661-05550

 1
89661-05531

AZT220..MTM

PART NUMBER LABEL=89661-05531

 1
89661-05551

AZT220..MTM

PART NUMBER LABEL=89661-05551

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-05040

AZT220

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-05060

AZT220..RHD

 1
89871 - DRIVER, INJECTOR
89871-20040

AZT220

 1
89879 - BRACKET, INJECTOR DRIVER
89879-20060

AZT220..RHD

 1
89987B - BRACKET, COMPUTER, NO.1
89987-05020

AZT220..RHD

 1
89988A - BRACKET, COMPUTER, NO.2
89988-05010

AZT220,ZZT22#..RHD

 1
Common parts
90080-14040
90179-06026
90430-12005
91626-60616
93319-14008
93319-15010
Linked diagrams
2211
