AZT220R-AEMNHW (2000)
Toyota Avensis

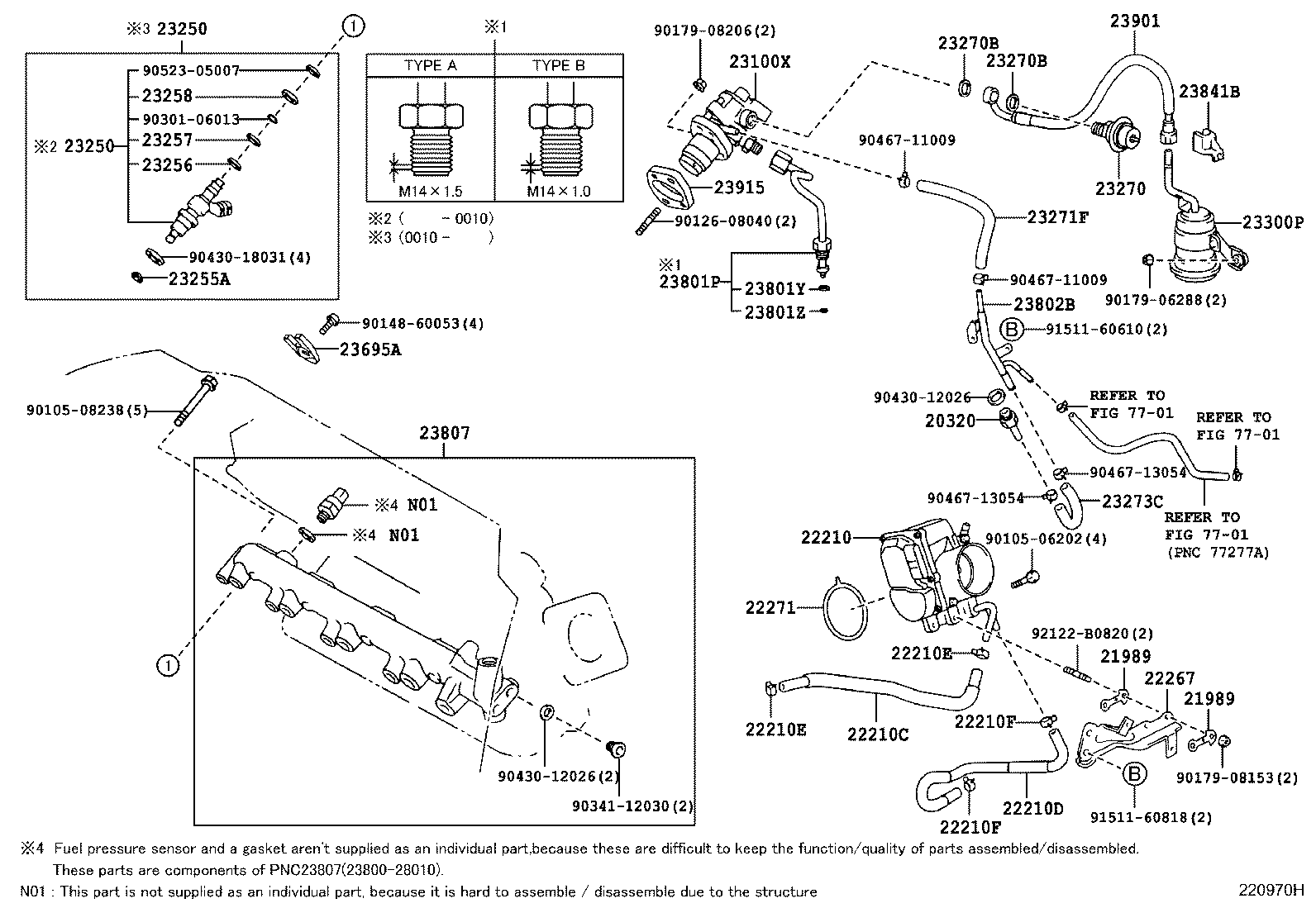

ILLUST NO. 1 OF 2(0007-0205)1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 20320 - VALVE ASSY, FUEL RELIEF | ||||
| 20320-28010 |
1AZFSE..AZT220 |
1 | ||
| 21989 - INSULATOR, PLATE | ||||
| 21989-28010 |
1AZFSE..AZT220 |
2 | ||
| 21989 - INSULATOR, PLATE | ||||
| 21989-28010 |
1AZFSE..AZT220 |
2 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-28020 |
1AZFSE..AZT220 |
1 | ||
| 22030-28010 |
1AZFSE..AZT220 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28030 |
1AZFSE..AZT220 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28030 |
1AZFSE..AZT220 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-28021 |
1AZFSE..AZT220 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28030 |
1AZFSE..AZT220 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-28030 |
1AZFSE..AZT220 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29025 |
1AZFSE..AZT220 |
4 | ||
| 23209-28030 |
1AZFSE..AZT220 |
4 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29025 |
1AZFSE..AZT220 |
4 | ||
| 23209-28030 |
1AZFSE..AZT220 |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-28010 |
1AZFSE..AZT220 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1AZFSE..AZT220 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1AZFSE..AZT220 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23258-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23258-28010 |
1AZFSE..AZT220 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28040 |
1AZFSE..AZT220 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..AZT220 |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..AZT220 |
2 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-28050 |
1AZFSE..AZT220 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-28010 |
1AZFSE..AZT220 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-28020 |
1AZFSE..AZT220..RHD |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-28010 |
1AZFSE..AZT220 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-28040 |
1AZFSE..AZT220 TYPE A:REFER ILLUST. |
1 | ||
| 23801-28043 |
1AZFSE..AZT220 |
1 | ||
| 23801-28041 |
1AZFSE..AZT220 TYPE B:REFER ILLUST. |
1 | ||
| 23801Y - GASKET | ||||
| 90430-07006 |
1AZFSE..AZT220 |
1 | ||
| 23801Z - RING, SNAP(FOR FUEL PIPE) | ||||
| 90520-05003 |
1AZFSE..AZT220 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-28020 |
1AZFSE..AZT220 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-28031 |
1AZFSE..AZT220 PNC 23801P=TYPE B |
1 | ||
| 23807-28030 |
1AZFSE..AZT220 PNC 23801P=TYPE A |
1 | ||
| 23807-28033 |
1AZFSE..AZT220 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21020 |
1AZFSE..AZT220 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-28060 |
1AZFSE..AZT220..RHD |
1 | ||
| 23915 - INSULATOR, FUEL PUMP | ||||
| 23915-46010 |
1AZFSE..AZT220 |
1 | ||
| 23915-46011 |
1AZFSE..AZT220 |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-08238 | ||||
| 90126-08040 | ||||
| 90148-60053 | ||||
| 90179-06288 | ||||
| 90179-08153 | ||||
| 90179-08206 | ||||
| 90301-06013 | ||||
| 90341-12030 | ||||
| 90430-12026 | ||||
| 90430-18031 | ||||
| 90467-11009 | ||||
| 90467-13054 | ||||
| 90523-05007 | ||||
| 91511-60610 | ||||
| 91511-60818 | ||||
| 92122-B0820 | ||||
| Linked diagrams | ||||
| 7701 | ||||

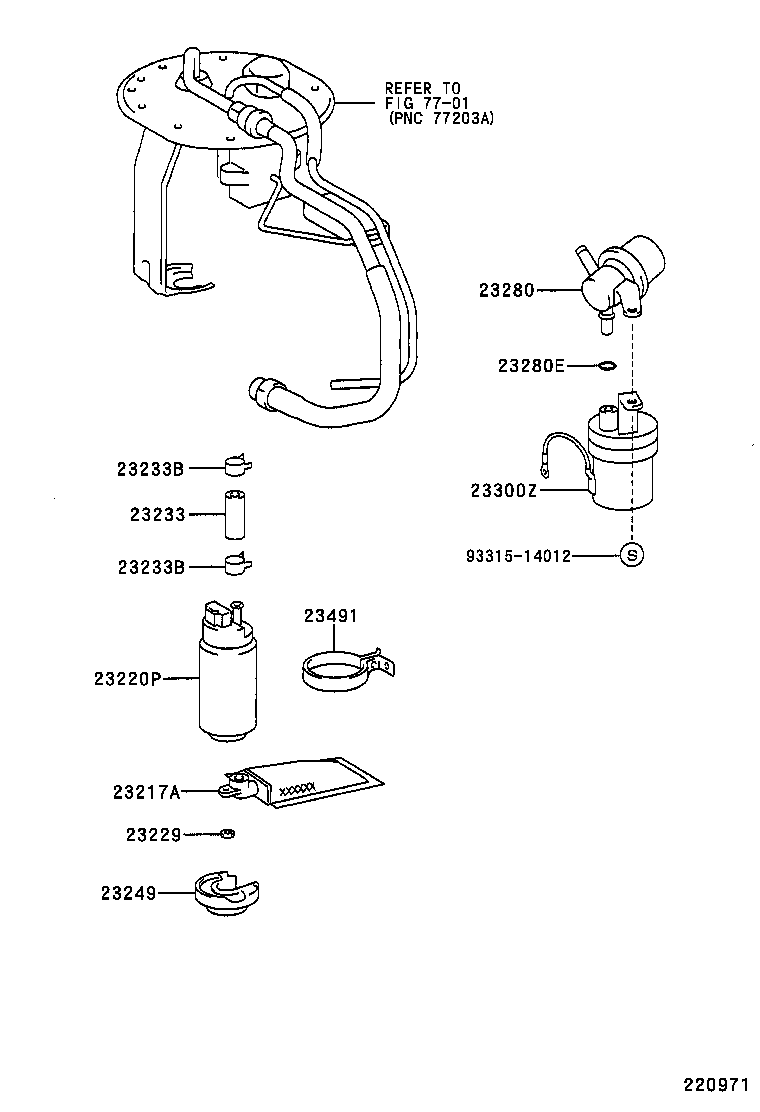

ILLUST NO. 2 OF 2(0007- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-74021 |
1AZFSE..AZT220;4AFE..AT220..LHD..SED..TERRA |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-28040 |
1AZFSE..AZT220 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
1AZFSE..AZT220;4AFE..AT220..LHD..SED..TERRA |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-28030 |
1AZFSE..AZT220 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-06011 |
1AZFSE..AZT220 |
1 | ||
| 23300Z - FILTER, FUEL(FOR FUEL TANK) | ||||
| 23300-20050 |
1AZFSE..AZT220 |
1 | ||
| 23491 - CLAMP, FUEL FILTER EARTH | ||||
| 23491-74010 |
1AZFSE..AZT220 |
1 | ||
| Common parts | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 1 OF 2(0205- )1AZFSE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 20320 - VALVE ASSY, FUEL RELIEF | ||||
| 20320-28010 |
1AZFSE..AZT220 |
1 | ||
| 21989 - INSULATOR, PLATE | ||||
| 21989-28010 |
1AZFSE..AZT220 |
2 | ||
| 21989 - INSULATOR, PLATE | ||||
| 21989-28010 |
1AZFSE..AZT220 |
2 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22030-28020 |
1AZFSE..AZT220 |
1 | ||
| 22030-28010 |
1AZFSE..AZT220 |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16261-28030 |
1AZFSE..AZT220 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-28030 |
1AZFSE..AZT220 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 96135-41300 |
1AZFSE..AZT220 |
2 | ||
| 22267 - BRACKET, THROTTLE BODY | ||||
| 22267-28021 |
1AZFSE..AZT220 |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-28030 |
1AZFSE..AZT220 |
1 | ||
| 23100X - PUMP ASSY, FUEL (ENGINE ROOM SIDE) | ||||
| 23100-28030 |
1AZFSE..AZT220 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-29025 |
1AZFSE..AZT220 |
4 | ||
| 23209-28030 |
1AZFSE..AZT220 |
4 | ||
| 23255A - SEAL, FUEL INJECTOR | ||||
| 23255-28010 |
1AZFSE..AZT220 |
4 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1AZFSE..AZT220 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23256 - RING, FUEL INJECTOR BACK-UP, NO.1 | ||||
| 23256-74010 |
1AZFSE..AZT220 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23256-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1AZFSE..AZT220 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23257 - RING, FUEL INJECTOR BACK-UP, NO.2 | ||||
| 23257-74010 |
1AZFSE..AZT220 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23257-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23258-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23258-28010 |
1AZFSE..AZT220 |
4 | ||
| 23258 - RING, FUEL INJECTOR BACK-UP, NO.3 | ||||
| 23258-28010 |
1AZFSE..AZT220 NO.1 |
4 | ||
| 23258-74010 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 23258-28010 |
1AZFSE..AZT220 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23270-28040 |
1AZFSE..AZT220 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..AZT220 |
2 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23279-74010 |
1AZFSE..AZT220 |
2 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-28050 |
1AZFSE..AZT220 |
1 | ||
| 23273C - HOSE, FUEL, NO.2 | ||||
| 23273-28010 |
1AZFSE..AZT220 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-28020 |
1AZFSE..AZT220..RHD |
1 | ||
| 23695A - CLAMP, NOZZLE HOLDER | ||||
| 23695-28010 |
1AZFSE..AZT220 |
4 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-28040 |
1AZFSE..AZT220 TYPE A:REFER ILLUST. |
1 | ||
| 23801-28043 |
1AZFSE..AZT220 |
1 | ||
| 23801-28041 |
1AZFSE..AZT220 TYPE B:REFER ILLUST. |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-28020 |
1AZFSE..AZT220 |
1 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-28031 |
1AZFSE..AZT220 PNC 23801P=TYPE B |
1 | ||
| 23807-28030 |
1AZFSE..AZT220 PNC 23801P=TYPE A |
1 | ||
| 23807-28033 |
1AZFSE..AZT220 |
1 | ||
| 23841B - CLAMP, FUEL PIPE, NO.1(FOR EFI) | ||||
| 23841-21020 |
1AZFSE..AZT220 |
1 | ||
| 23901 - TUBE SUB-ASSY, FUEL | ||||
| 23901-28060 |
1AZFSE..AZT220..RHD |
1 | ||
| 23915 - INSULATOR, FUEL PUMP | ||||
| 23915-46010 |
1AZFSE..AZT220 |
1 | ||
| 23915-46011 |
1AZFSE..AZT220 |
1 | ||
| Common parts | ||||
| 90105-06202 | ||||
| 90105-08238 | ||||
| 90126-08040 | ||||
| 90148-60053 | ||||
| 90179-06288 | ||||
| 90179-08153 | ||||
| 90179-08206 | ||||
| 90301-06013 | ||||
| 90341-12030 | ||||
| 90430-12026 | ||||
| 90430-18031 | ||||
| 90467-11009 | ||||
| 90467-13054 | ||||
| 90523-05007 | ||||
| 91511-60610 | ||||
| 91511-60818 | ||||
| 91621-J0614 | ||||
| 92122-B0820 | ||||
| Linked diagrams | ||||
| 7701 | ||||
