AZT220R-AEMEHW (2000)
Toyota Avensis
Production
Jul 2000
-
Jan 2003
Engine
1AZFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0007- )1AZFSE

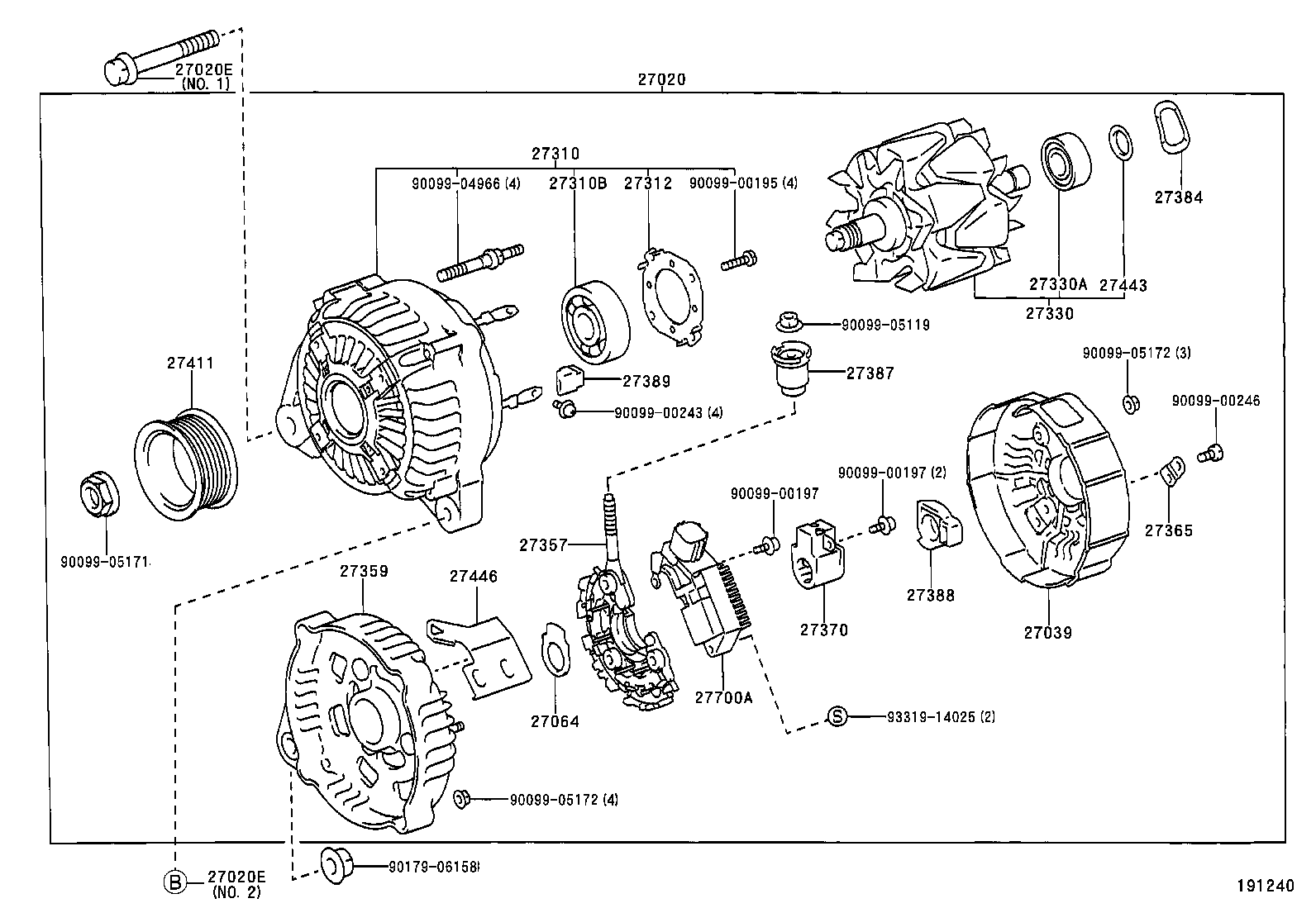

Click highlighted areas on diagram
12V 100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-28060 |
1AZFSE..AZT220 12V 100A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 91511-60840 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| 91512-81085 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 91511-60840 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-20060 |
1AZFSE..AZT220 |
1 | ||
| 27039-20160 |
1AZFSE..AZT220 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-28050 |
1AZFSE..AZT220 |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10219 |
1AZFSE..AZT220 |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-28050 |
1AZFSE..AZT220 |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-70450 |
1AZFSE..AZT220 |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-28060 |
1AZFSE..AZT220 |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-42010 |
1AZFSE..AZT220 |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-28060 |
1AZFSE..AZT220 |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-28110 |
1AZFSE..AZT220 |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-46060 |
1AZFSE..AZT220 |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
