AZT220R-AEMEHW (2000)
Toyota Avensis
Production
Jul 2000
-
Jan 2003
Engine
1AZFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0007- )1AZFSE

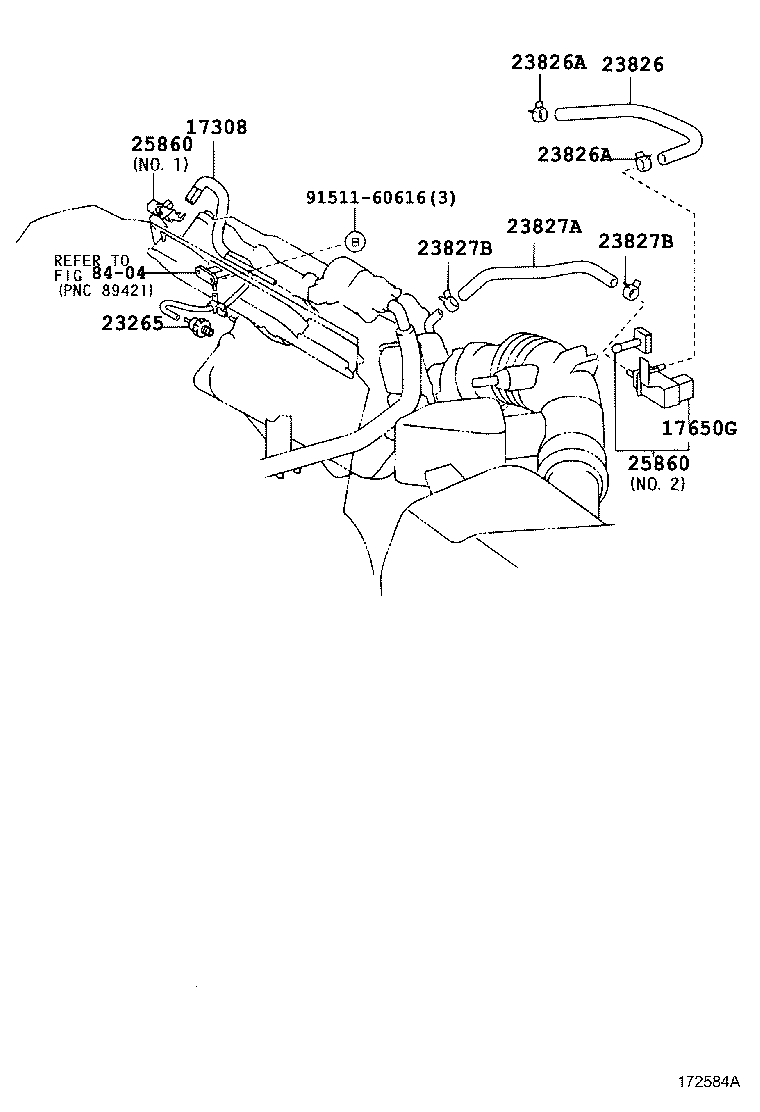

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-28010 |
1AZFSE..AZT220 |
1 | ||
| 17650G - VALVE, DUTY VACUUM SWITCHING | ||||
| 90910-12234 |
1AZFSE..AZT220 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11037 |
4AFE..AT220..RHD;1AZFSE,7AFE..AT221,AZT220 |
1 | ||
| 23826 - HOSE, FUEL VAPOR FEED, NO.1 | ||||
| 23826-28010 |
1AZFSE..AZT220 |
1 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1AZFSE..AZT220 |
2 | ||
| 23826A - CLIP(FOR FUEL VAPOR FEED HOSE, NO.1) | ||||
| 96132-41300 |
1AZFSE..AZT220 |
2 | ||
| 23827A - HOSE, FUEL VAPOR FEED, NO.2 | ||||
| 23827-28030 |
1AZFSE..AZT220 |
1 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1AZFSE..AZT220 |
2 | ||
| 23827B - CLIP(FOR FUEL VAPOR FEED HOSE, NO.2) | ||||
| 96132-41300 |
1AZFSE..AZT220 |
2 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-28020 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 25860-28070 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 25860-0H030 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 25860-74280 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-28020 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 25860-28070 |
1AZFSE..AZT220 NO.1 |
1 | ||
| 25860-0H030 |
1AZFSE..AZT220 NO.2 |
1 | ||
| 25860-74280 |
1AZFSE..AZT220 NO.2 |
1 | ||
| Common parts | ||||
| 91511-60616 | ||||
| Linked diagrams | ||||
| 8404 | ||||
