AZT220L-AWPEHW (2000)

Toyota Avensis

Production Oct 2000 - Jan 2003
Engine 1AZFSE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

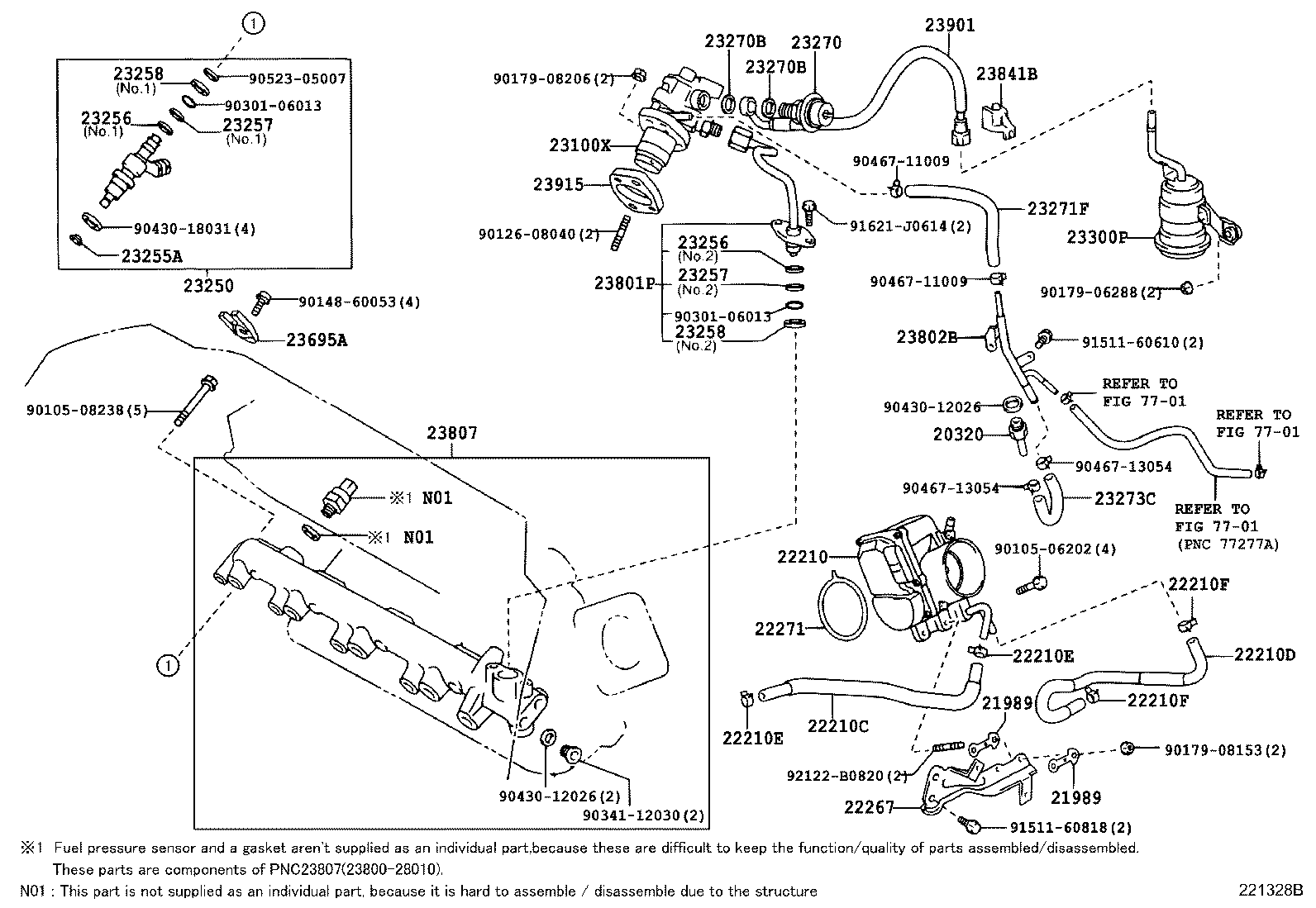

ILLUST NO. 1 OF 2(0205- )1AZFSE

Click highlighted areas on diagram

diagram 20320 21989 21989 22210 22210C 22210D 22210E 22210E 22210F 22210F 22267 22271 23100X 23250 23255A 23256 23256 23257 23257 23258 23258 23270 23270B 23270B 23271F 23273C 23300P 23695A 23801P 23802B 23807 23841B 23901 23915 7701 7701 7701 9010506202 9010508238 9012608040 9014860053 9017906288 9017908153 9017908206 9030106013 9030106013 9034112030 9043012026 9043012026 9043018031 9046711009 9046711009 9046713054 9046713054 9052305007 9151160610 9151160818 91621J0614 92122B0820
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22030-28020

1AZFSE..AZT220

 1
23250 - INJECTOR ASSY, FUEL
23209-29025

1AZFSE..AZT220

 4
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-74010

1AZFSE..AZT220

NO.1

 4
23256-74010

1AZFSE..AZT220

NO.2

 1
23256 - RING, FUEL INJECTOR BACK-UP, NO.1
23256-74010

1AZFSE..AZT220

NO.1

 4
23256-74010

1AZFSE..AZT220

NO.2

 1
23257 - RING, FUEL INJECTOR BACK-UP, NO.2
23257-74010

1AZFSE..AZT220

NO.1

 4
23257-74010

1AZFSE..AZT220

NO.2

 1
23257 - RING, FUEL INJECTOR BACK-UP, NO.2
23257-74010

1AZFSE..AZT220

NO.1

 4
23257-74010

1AZFSE..AZT220

NO.2

 1
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-28010

1AZFSE..AZT220

NO.1

 4
23258-74010

1AZFSE..AZT220

NO.2

 1
23258 - RING, FUEL INJECTOR BACK-UP, NO.3
23258-28010

1AZFSE..AZT220

NO.1

 4
23258-74010

1AZFSE..AZT220

NO.2

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-28043

1AZFSE..AZT220

 1
23801-28041

1AZFSE..AZT220

TYPE B:REFER ILLUST.

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-28031

1AZFSE..AZT220

PNC 23801P=TYPE B

 1
23807-28033

1AZFSE..AZT220

 1
Common parts
90105-06202
90105-08238
90126-08040
90148-60053
90179-06288
90179-08153
90179-08206
90301-06013
90341-12030
90430-12026
90430-18031
90467-11009
90467-13054
90523-05007
91511-60610
91511-60818
91621-J0614
92122-B0820
Linked diagrams
7701
