AZT220L-ALMNHW (2000)
Toyota Avensis
Production
Jul 2000
-
Jan 2003
Engine
1AZFSE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(0007- )1AZFSE

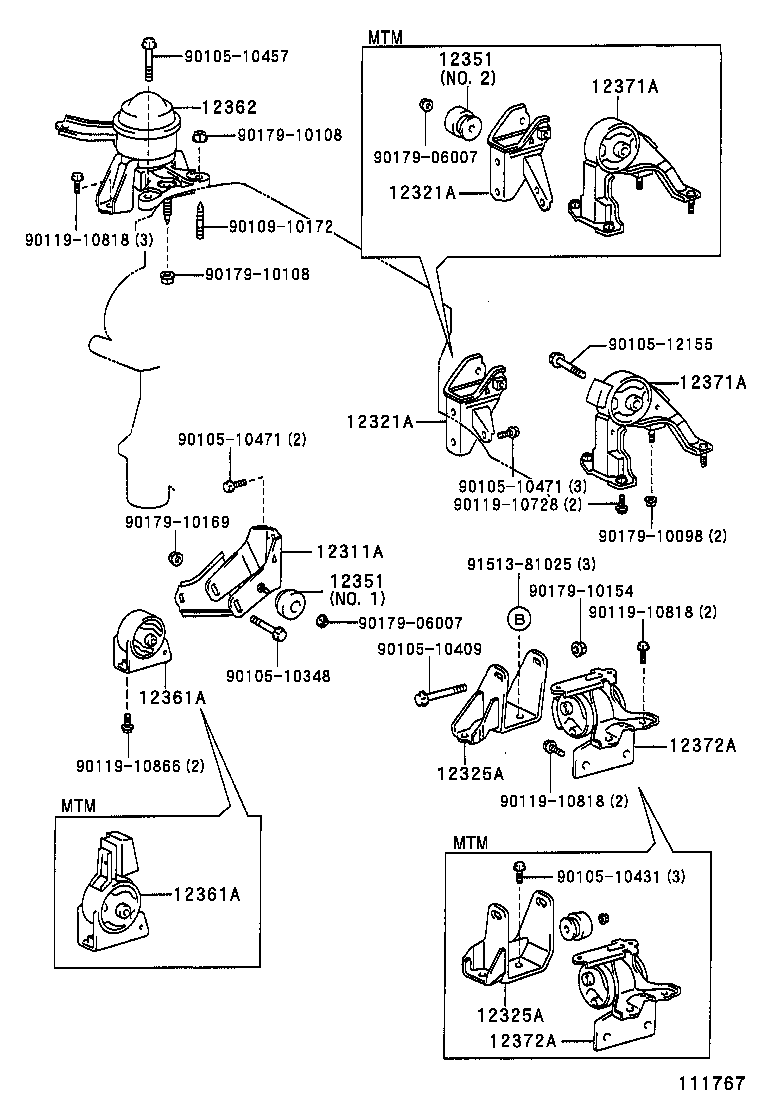

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE) | ||||
| 12311-0H010 |
1AZFSE..AZT220 |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0H010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE) | ||||
| 12321-0H010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12325A - BRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12325-28010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02030 |
1AZFSE,4AFE,7AFE..AT22#,AZT220..MTM NO.2 |
1 | ||
| 12351-02020 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 NO.1 |
1 | ||
| 12351 - DAMPER, ENGINE MOUNTING | ||||
| 12351-02030 |
1AZFSE,4AFE,7AFE..AT22#,AZT220..MTM NO.2 |
1 | ||
| 12351-02020 |
1AZFSE,4AFE,7AFE..AT22#,AZT220 NO.1 |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0B011 |
1AZFSE..AZT220..MTM |
1 | ||
| 12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE | ||||
| 12361-0B011 |
1AZFSE..AZT220..MTM |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12305-28050 |
1AZFSE..AZT220 |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0H010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12371A - INSULATOR, ENGINE MOUNTING, REAR | ||||
| 12371-0H010 |
1AZFSE..AZT220..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-02140 |
4AFE,7AFE..AT22#;1AZFSE..AZT220..MTM |
1 | ||
| 12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE) | ||||
| 12372-02140 |
4AFE,7AFE..AT22#;1AZFSE..AZT220..MTM |
1 | ||
| Common parts | ||||
| 90105-10348 | ||||
| 90105-10409 | ||||
| 90105-10431 | ||||
| 90105-10457 | ||||
| 90105-10471 | ||||
| 90105-12155 | ||||
| 90109-10172 | ||||
| 90119-10728 | ||||
| 90119-10818 | ||||
| 90119-10866 | ||||
| 90179-06007 | ||||
| 90179-10098 | ||||
| 90179-10108 | ||||
| 90179-10154 | ||||
| 90179-10169 | ||||
| 91513-81025 | ||||
