AZT220L-AEMNHW (2000)

Toyota Avensis

Production Jul 2000 - Jan 2003
Engine 1AZFSE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0007- )AZT220..MTM

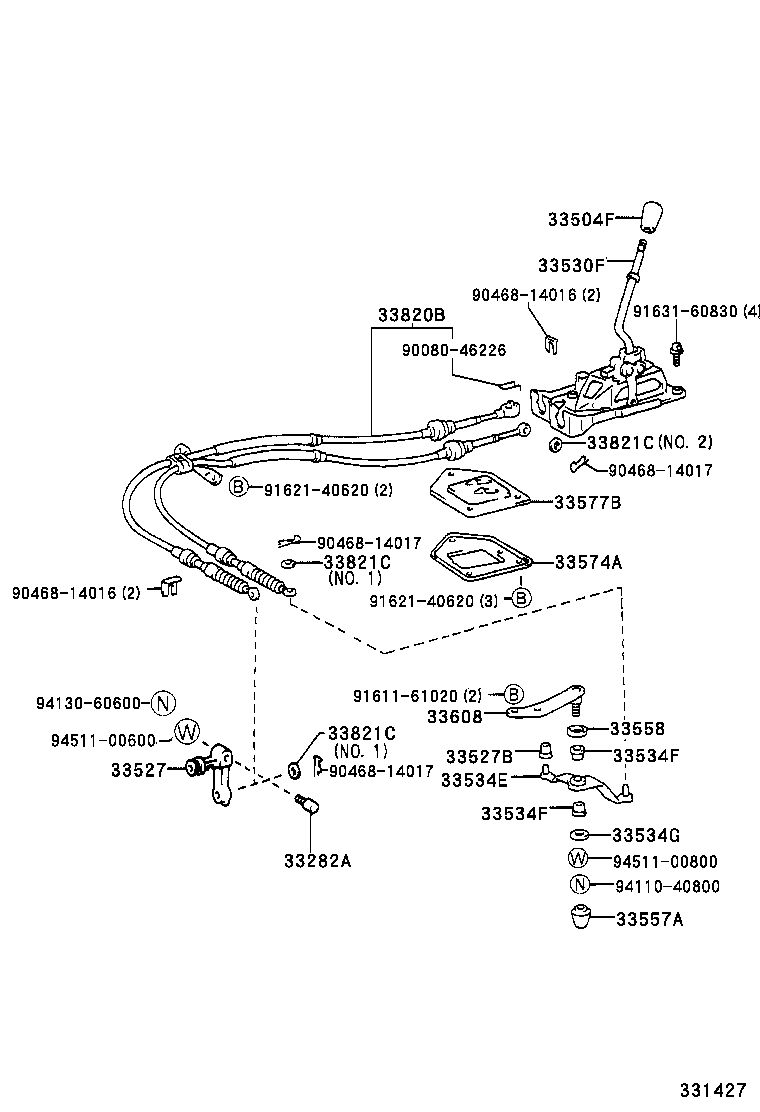

Click highlighted areas on diagram

diagram 33282A 33504F 33527 33527B 33530F 33534E 33534F 33534F 33534G 33557A 33558 33574A 33577B 33608 33820B 33821C 33821C 33821C 9008046226 9046814016 9046814016 9046814017 9046814017 9046814017 9161161020 9162140620 9162140620 9163160830 9411040800 9413060600 9451100600 9451100800
Part # Description Qty Price
33282A - PIN, LEVER LOCK (FOR CONTROL SHIFT LEVER)
33282-35010

AZT220,CT220,ST220..MTM

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-05010C0

ST220..SED..MTM;AZT220,CDT220,ZZT22#..MTM..TERRA

BLACK,TRIM1#,6#

 1
33504-20160C0

AZT220,CDT220,ZZT22#..MTM..TERRA

CHROME PLATED,BLACK,TRIM1#

 1
33527 - LEVER, CONTROL SHIFT (FOR FLOOR SHIFT)
33527-32010

AZT220,CT220,ST220..MTM

 1
33527B - BUSH (FOR CONTROL SHIFT LEVER)
33557-33010

AZT220,CDT220,CT220,ST220..MTM

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-05040

AZT220,ST220..LHD..MTM

 1
33534E - CRANK, SELECTING BELL, NO.2
33534-33010

AZT220,CT220,ST220..MTM

 1
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT22#,AZT220,CDT220,CT220,ST220..MTM

 2
33534F - BUSH (FOR SELECTING BELLCRANK NO.2)
90386-12022

AT22#,AZT220,CDT220,CT220,ST220..MTM

 2
33534G - WASHER, PLATE (FOR SELECTING BELLCRANK NO.2)
90201-08028

AT22#,AZT220,CDT220,CT220,ST220..MTM

 1
33557A - COVER, SELECTING BELLCRANK DUST, NO.1
33557-32010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
33558 - COVER, SELECTING BELLCRANK DUST, NO.2
33558-32010

AZT220,CT220,ST220..MTM

 1
33574A - RETAINER, SHIFT CABLE GROMMET, NO.1
33574-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
33577B - COVER, CONTROL SHAFT HOLE
33577-05030

AZT220,ZZT22#..MTM

 1
33577-05010

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

 1
33608 - SUPPORT SUB-ASSY, SELECTING BELLCRANK
33608-33010

AZT220,CT220,ST220..MTM

 1
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-05190

AZT220..MTM

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

OD=30,NO.1

 2
90201-10042

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

NO.2

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

OD=30,NO.1

 2
90201-10042

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

NO.2

 1
33821C - WASHER, PLATE (FOR TRANSMISSION CONTROL CABLE)
90201-08077

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

OD=30,NO.1

 2
90201-10042

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..MTM

NO.2

 1
Common parts
90080-46226
90468-14016
90468-14017
91611-61020
91621-40620
91631-60830
94110-40800
94130-60600
94511-00600
94511-00800
