AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9710-0007)

Click highlighted areas on diagram

CONTROL

diagram 55905A 55905A 55905A 55905B 55909A 55910 81942A 8401 9356715016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-05040

AT22#,CDT220,CT220,ST220..RHD

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-05040

AT22#,CDT220,CT220,ST220..RHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-05040

AT22#,CDT220,CT220,ST220..RHD

 1
Common parts
93567-15016
Linked diagrams
8401

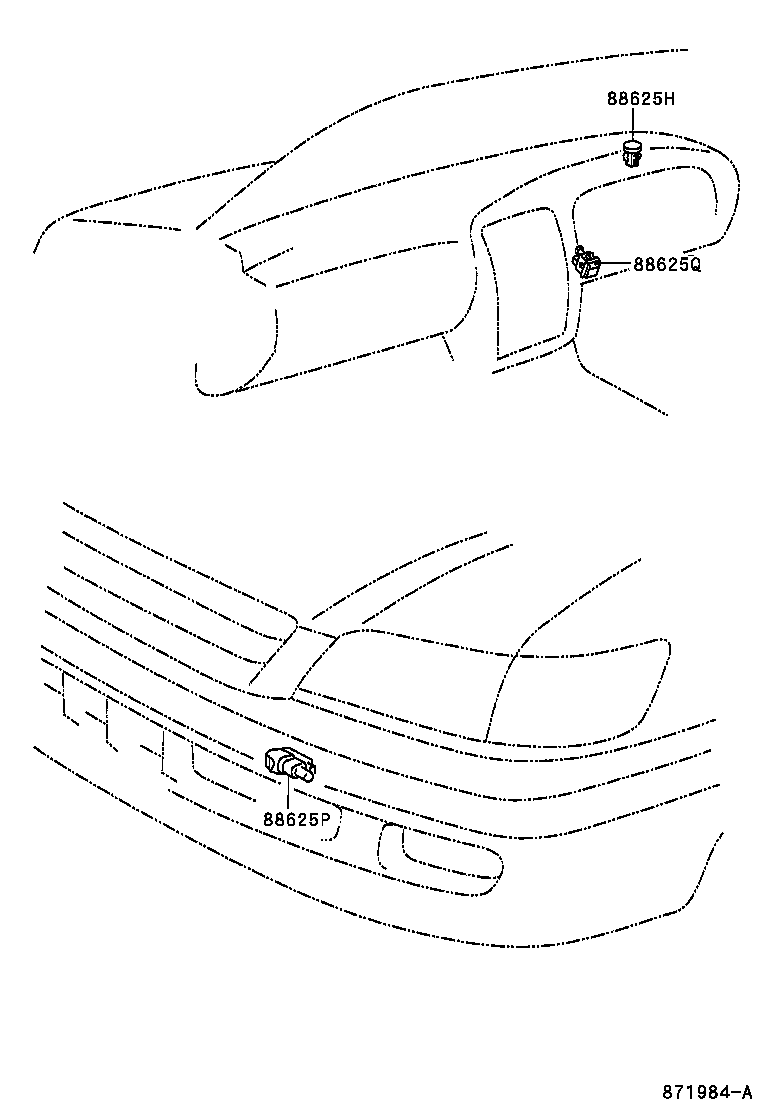

ILLUST NO. 3 OF 3(9710- )

Click highlighted areas on diagram

SENSOR

diagram 88625H 88625P 88625Q
Part # Description Qty Price

ILLUST NO. 1 OF 3(9710-0007)

Click highlighted areas on diagram

CONTROL--AUTO AIR CONDITIONER

diagram 55900B 55900B 55900B 55905A 55905A 55905A 55905B 55910 81942A 9356715016
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905A - KNOB, HEATER CONTROL
55905-05050

AT22#,CDT220,CT220,ST220

 3
55905B - KNOB, HEATER CONTROL, NO.2
55905-05060

AT22#,CDT220,CT220,ST220

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-05040

AT22#,CDT220,CT220,ST220..RHD

 1
81942A - SHEET, HEATER CONTROL NAME, NO.1
81942-05040

AT22#,CDT220,CT220,ST220..RHD

 1
Common parts
93567-15016

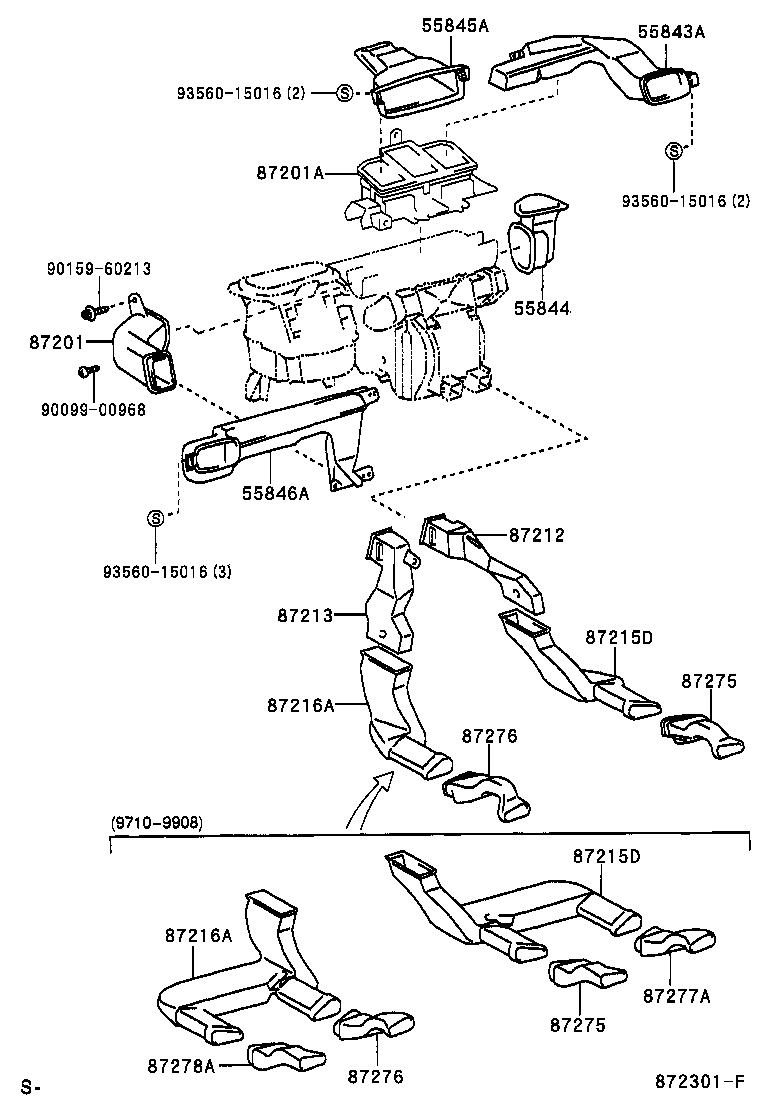

ILLUST NO. 2 OF 3(9710- )

Click highlighted areas on diagram

DUCT

diagram 55843A 55844 55845A 55846A 87201 87201A 87212 87213 87215D 87215D 87216A 87216A 87275 87275 87276 87276 87277A 87278A 9009900968 9015960213 9356015016 9356015016 9356015016
Part # Description Qty Price
55843A - DUCT, HEATER TO REGISTER, NO.1
55843-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
55844 - DUCT, HEATER TO REGISTER, NO.2
55844-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
55845A - DUCT, HEATER TO REGISTER, NO.3
55845-05040

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
55846A - DUCT, HEATER TO REGISTER, NO.4
55846-05060

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
87212 - DUCT, AIR, REAR NO.1
87212-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
87213 - DUCT, AIR, REAR NO.2
87213-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD

 1
87215D - DUCT, AIR, REAR NO.4
87215-05020

AT22#,CT220,ST220

 1
87215-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87215D - DUCT, AIR, REAR NO.4
87215-05020

AT22#,CT220,ST220

 1
87215-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87216A - DUCT, AIR, REAR NO.5
87216-05020

AT22#,CT220,ST220

 1
87216-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87216A - DUCT, AIR, REAR NO.5
87216-05020

AT22#,CT220,ST220

 1
87216-05030

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-05010

AT22#,CT220,ST220

 1
87275-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87275 - DUCT, FLOOR HEATER AIR, NO.1 RH
87275-05010

AT22#,CT220,ST220

 1
87275-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-05010

AT22#,CT220,ST220

 1
87276-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87276 - DUCT, FLOOR HEATER AIR, NO.1 LH
87276-05010

AT22#,CT220,ST220

 1
87276-05020

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#

 1
87277A - DUCT, FLOOR HEATER AIR, NO.2 RH
87277-05010

AT22#,CT220,ST220

 1
87278A - DUCT, FLOOR HEATER AIR, NO.2 LH
87278-05010

AT22#,CT220,ST220

 1
Common parts
90099-00968
90159-60213
93560-15016
