AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9710-0007)

Click highlighted areas on diagram

diagram 86120 86170 86174 86211 86212 9015350010 9015350010 9356755016 9356755016
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-05040

AT22#,CDT220,CT220,ST220

PHILIPS

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-05010

AT22#,CDT220,CT220,ST220

 1
86174 - CASE, SWITCH & VOLUME
86174-05010

AT22#,CDT220,CT220,ST220

 1
86211 - BRACKET, RADIO, NO.1
86211-05050

AT22#,CDT220,CT220,ST220

 1
86212 - BRACKET, RADIO, NO.2
86212-05050

AT22#,CDT220,CT220,ST220

 1
Common parts
90153-50010
93567-55016

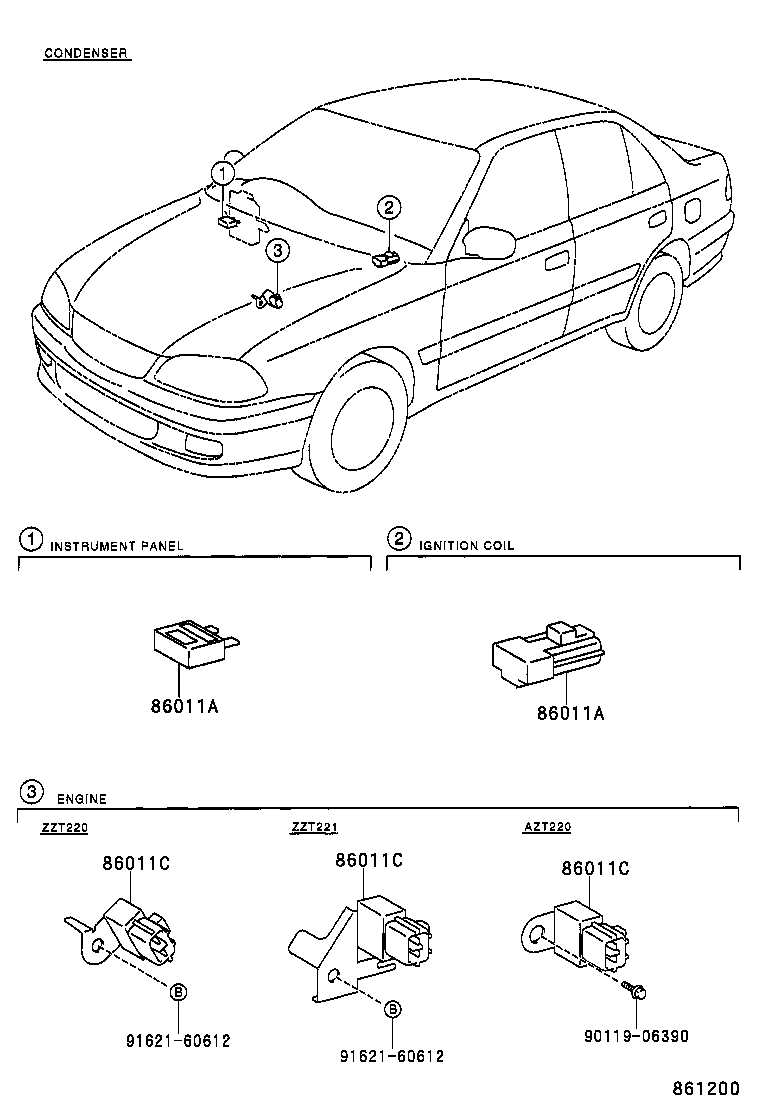

ILLUST NO. 2 OF 2(9710- )

Click highlighted areas on diagram

CONDENSER

diagram 86011A 86011A 86011C 86011C 86011C 9011906390 9162160612 9162160612
Part # Description Qty Price
86011A - CONDENSER, RADIO SETTING
90980-04066

AT220..TERRA;AT221,CT220,ST220

INSTRUMENT PANEL

 1
90980-04083

AT221,ST220;AT220..TERRA

IGNITION COIL

 1
90980-04066

AT220..RHD;AT220..LHD..SED..TERRA;AT221,AZT220,CDT220,CT220,ST220,ZZT22#

INSTRUMENT PANEL

 1
90980-04083

AT220..RHD;AT221,ST220;AT220..LHD..SED..TERRA

IGNITION COIL

 1
86011A - CONDENSER, RADIO SETTING
90980-04066

AT220..TERRA;AT221,CT220,ST220

INSTRUMENT PANEL

 1
90980-04083

AT221,ST220;AT220..TERRA

IGNITION COIL

 1
90980-04066

AT220..RHD;AT220..LHD..SED..TERRA;AT221,AZT220,CDT220,CT220,ST220,ZZT22#

INSTRUMENT PANEL

 1
90980-04083

AT220..RHD;AT221,ST220;AT220..LHD..SED..TERRA

IGNITION COIL

 1
Common parts
90119-06390
91621-60612
