AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710- )DCR,EFI,TDEFI ; (0007- )AZT220..TERRA

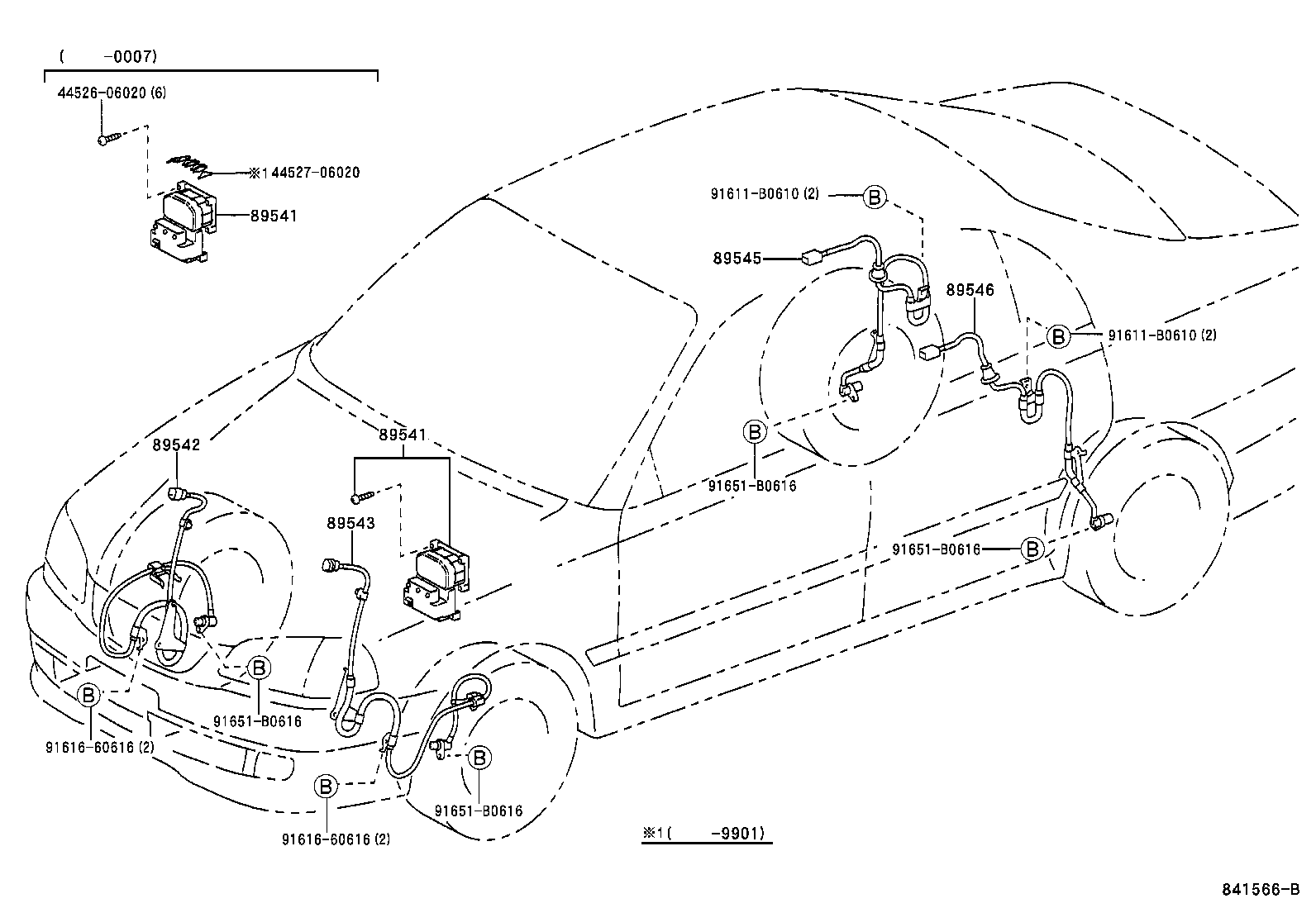

Click highlighted areas on diagram

diagram 4452606020 4452706020 89541 89541 89542 89543 89545 89546 91611B0610 91611B0610 9161660616 9161660616 91651B0616 91651B0616 91651B0616 91651B0616
Part # Description Qty Price
89541 - COMPUTER, SKID CONTROL
89541-05050

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89541 - COMPUTER, SKID CONTROL
89541-05050

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

 1
89542 - SENSOR, SPEED, FRONT RH
89542-20160

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

DENSO

 1
89542-05030

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

BOSCH

 1
89542-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
89543 - SENSOR, SPEED, FRONT LH
89543-20160

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

DENSO

 1
89543-05030

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

BOSCH

 1
89543-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
89545 - SENSOR, SPEED, REAR RH
89545-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
89545-20130

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

AISIN

 1
89545-05030

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

BOSCH

 1
89546 - SENSOR, SPEED, REAR LH
89546-05030

AT22#,CT220,ST220..EFI,TDEFI

 1
89546-20130

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

AISIN

 1
89546-05030

AT22#,CDT220,CT220,ST220..DCR,EFI,TDEFI

BOSCH

 1
Common parts
44526-06020
44527-06020
91611-B0610
91616-60616
91651-B0616
