Toyota Avensis AT221 WIRING & CLAMP

AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000

Engine 7AFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

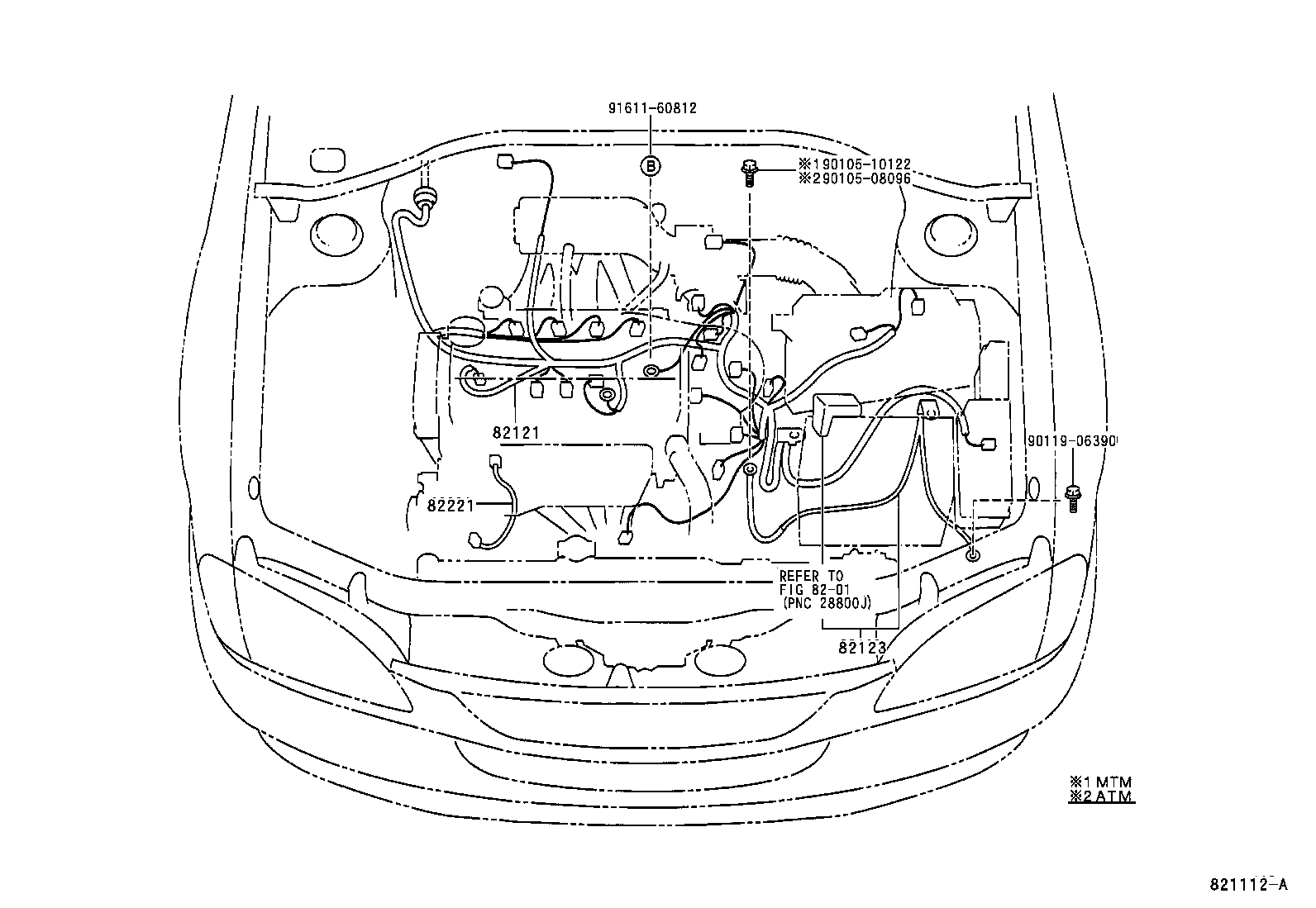

ILLUST NO. 2 OF 7(9710-0007)AT22#

Click highlighted areas on diagram

ENGINE

Part #	Description	Period	Qty
82121 - WIRE, ENGINE
82121-05350	AT22#..RHD..MTM	10/1997 - 07/2000	1
82123 - WIRE, ENGINE, NO.3
82123-05040	AT22#	10/1997 - 07/2000	1
82221 - WIRE, OIL PRESSURE SWITCH
82221-05010	AT22#	10/1997 - 07/2000	1
Common parts
90105-08096
90105-10122
90119-06390
91611-60812
Linked diagrams
8201

ILLUST NO. 1 OF 7(9710- )

Click highlighted areas on diagram

ENGINE ROOM

Part #	Description	Period	Qty
82111 - WIRE, ENGINE ROOM MAIN
82111-05780	AT221..RHD..SOL;AT22#..RHD..(LB,WG)..TERRA	10/1997 - 07/2000	1
82131 - WIRE, COWL
82131-05030	AT22#..RHD..MTM	10/1997 - 07/2000	1
82210C - FUSIBLE LINK
90982-08284	AT22#,CDT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 07/2000	1
90982-08202	AT22#,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08285	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
90982-08286	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 140A,TERMINAL:MALE	10/1997 - 12/2999	1
90982-08283	AT22#,CDT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 07/2000	1
90982-08246	AT22#,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
82210C - FUSIBLE LINK
90982-08284	AT22#,CDT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 07/2000	1
90982-08202	AT22#,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08285	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
90982-08286	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 140A,TERMINAL:MALE	10/1997 - 12/2999	1
90982-08283	AT22#,CDT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 07/2000	1
90982-08246	AT22#,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
82817 - PROTECTOR, WIRING HARNESS, NO.1
82817-2D090	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD	10/1997 - 12/2999	1
82823T - CAP, ALTERNATOR TERMINAL
82823-20070	AT22#,ST220	10/1997 - 07/2000	1
Common parts
90119-06390
91621-60612
Linked diagrams
8401

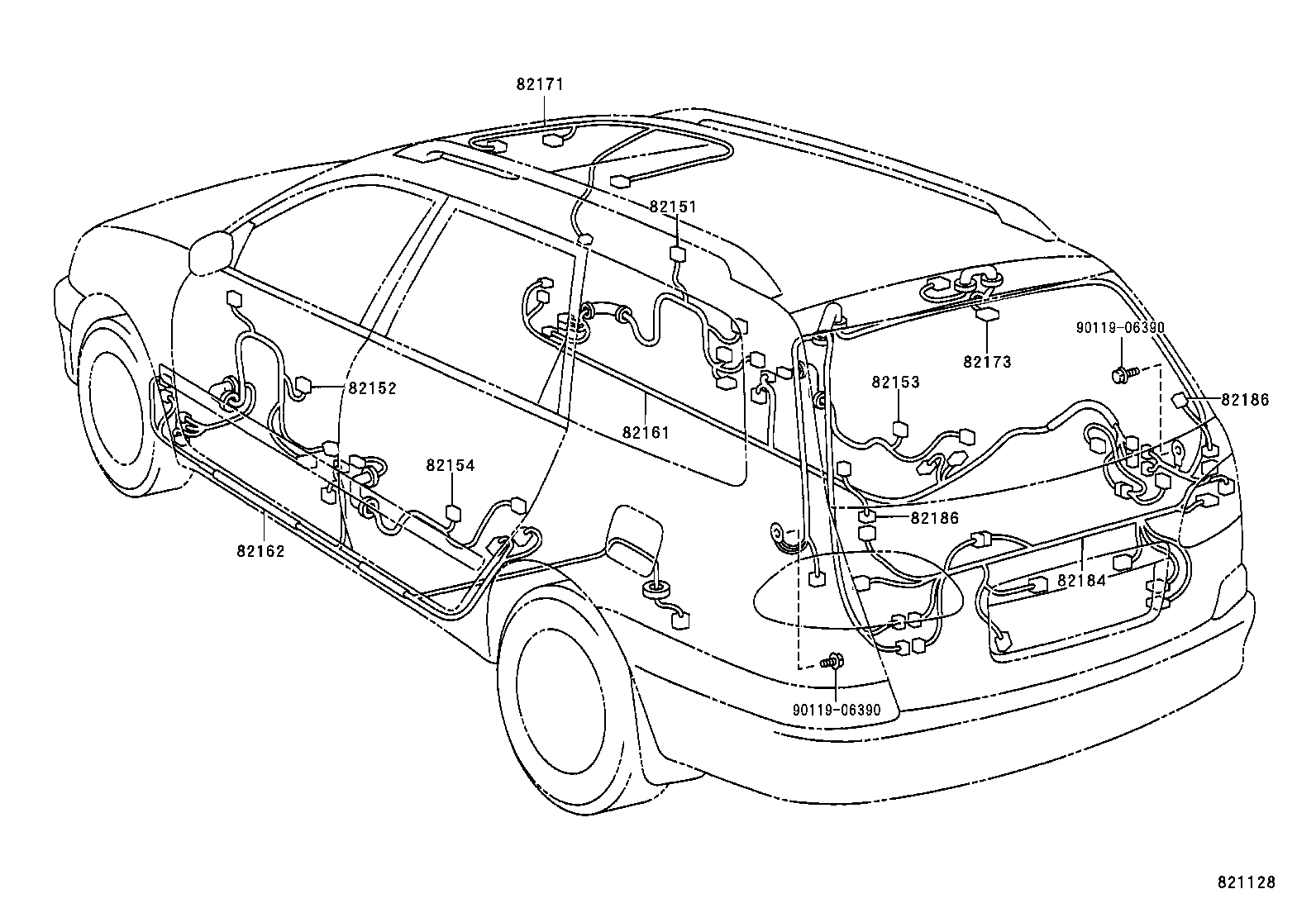

ILLUST NO. 5 OF 7(9710- )RHD..WG

Click highlighted areas on diagram

DOOR,FLOOR,ROOF

Part #	Description	Period	Qty
82151 - WIRE, FRONT DOOR, RH
82151-05300	AT22#,CDT220,CT220..RHD..TERRA	10/1997 - 07/2000	1
82151-05310	AT22#,CDT220,CT220,ST220..RHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	10/1997 - 07/2000	1
82152 - WIRE, FRONT DOOR, LH
82152-05340	AT22#,CDT220,CT220..RHD..TERRA	10/1997 - 07/2000	1
82152-05330	AT22#,CDT220,CT220,ST220..RHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER)	10/1997 - 07/2000	1
82153 - WIRE, REAR DOOR, NO.1
82153-05070	AT22#,CT220..TERRA	10/1997 - 01/1999	1
82153-05070	ST220..RHD;AT22#,CT220..TERRA	01/1999 - 04/1999	1
82153-05100	AT22#,CDT220,CT220,ST220 W(POWER WINDOW & SPEAKER)	10/1997 - 07/2000	1
82153-05090	AT22#,CDT220,CT220,ST220 W(POWER WINDOW)	10/1997 - 07/2000	1
82153-05080	ST220..RHD;AT22#,CT220..TERRA W(SPEAKER)	01/1999 - 04/1999	1
82153-05080	AT22#,CT220..TERRA W(SPEAKER)	10/1997 - 01/1999	1
82153-05080	ST220;AT22#,CDT220,CT220..TERRA W(SPEAKER)	04/1999 - 07/2000	1
82153-05070	ST220;AT22#,CDT220,CT220..TERRA	04/1999 - 07/2000	1
82154 - WIRE, REAR DOOR, NO.2
82154-05070	AT22#,CT220..TERRA	10/1997 - 01/1999	1
82154-05070	ST220..RHD;AT22#,CT220..TERRA	01/1999 - 04/1999	1
82154-05080	ST220..RHD;AT22#,CT220..TERRA W(SPEAKER)	01/1999 - 04/1999	1
82154-05100	AT22#,CDT220,CT220,ST220 W(POWER WINDOW & SPEAKER)	10/1997 - 07/2000	1
82154-05080	ST220;AT22#,CDT220,CT220..TERRA W(SPEAKER)	04/1999 - 07/2000	1
82154-05080	AT22#,CT220..TERRA W(SPEAKER)	10/1997 - 01/1999	1
82154-05090	AT22#,CDT220,CT220,ST220 W(POWER WINDOW)	10/1997 - 07/2000	1
82154-05070	ST220;AT22#,CDT220,CT220..TERRA	04/1999 - 07/2000	1
82161 - WIRE, FLOOR
82161-05450	AT22#,CT220..RHD..WG	10/1997 - 01/1999	1
82161-05460	AT22#,CDT220,CT220,ST220..RHD..WG W(POWER WINDOW---FRONT & REAR)	10/1997 - 07/2000	1
82161-05450	AT22#,CDT220,CT220,ST220..RHD..WG W(POWER WINDOW---FRONT ONLY)	01/1999 - 07/2000	1
82162 - WIRE, FLOOR, NO.2
82162-05210	AT22#,CT220..RHD..TERRA	10/1997 - 01/1999	1
82162-05210	AT221..RHD..TERRA;AT220,CDT220,CT220,ST220..RHD W(*80,DRIVER SIDE & PASSENGER SIDE)	01/1999 - 07/2000	1
82162-05220	AT22#,CDT220,CT220,ST220..RHD W(*80, SIDE)	10/1997 - 07/2000	1
82171 - WIRE, ROOF, NO.1
82171-05180	AT22#,CT220,ST220..RHD..WG W(MOON ROOF)	10/1997 - 05/1999	1
82171-05141	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD	05/1999 - 12/2999	1
82171-05140	AT22#,CT220,ST220..RHD	10/1997 - 05/1999	1
82171-05181	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..RHD..WG W(MOON ROOF)	05/1999 - 12/2999	1
82173 - WIRE, ROOF, NO.3
82173-05010	AT22#,CDT220,CT220,ST220..RHD..WG	10/1997 - 07/2000	1
82184 - WIRE, BACK DOOR, NO.1
82184-05050	AT22#,CDT220,CT220,ST220..WG	10/1997 - 07/2000	1
82186 - WIRE, REAR WINDOW, NO.1
82186-05070	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG	10/1997 - 12/2999	2
82186 - WIRE, REAR WINDOW, NO.1
82186-05070	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG	10/1997 - 12/2999	2
Common parts
90119-06390

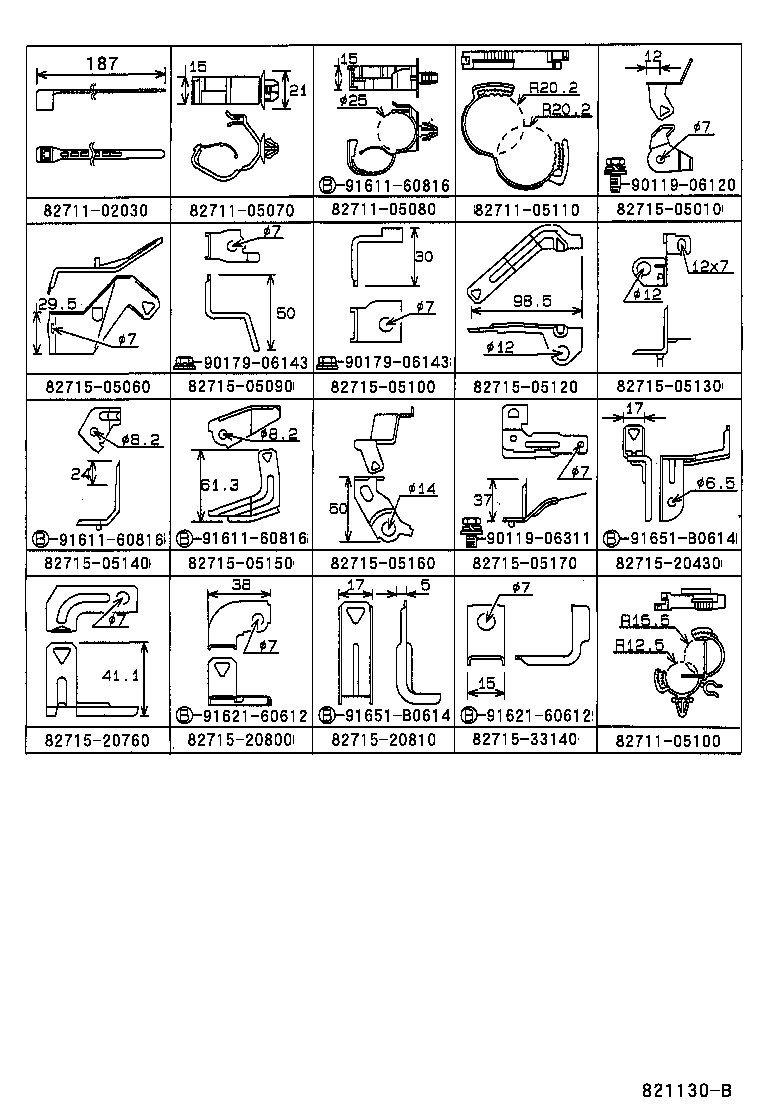

ILLUST NO. 6 OF 7(9710- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-02030
82711-05070
82711-05080
82711-05100
82711-05110
82715-05010
82715-05060
82715-05090
82715-05100
82715-05120
82715-05130
82715-05140
82715-05150
82715-05160
82715-05170
82715-20430
82715-20760
82715-20800
82715-20810
82715-33140
90119-06120
90119-06311
90179-06143
91611-60816
91621-60612
91651-B0614

ILLUST NO. 6 OF 7(9710- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-05050
82711-05060
82711-05090
82711-05120
82715-05020
82715-05030
82715-05050
82715-05070
82715-05080
82715-05180
82715-20760
90464-00763

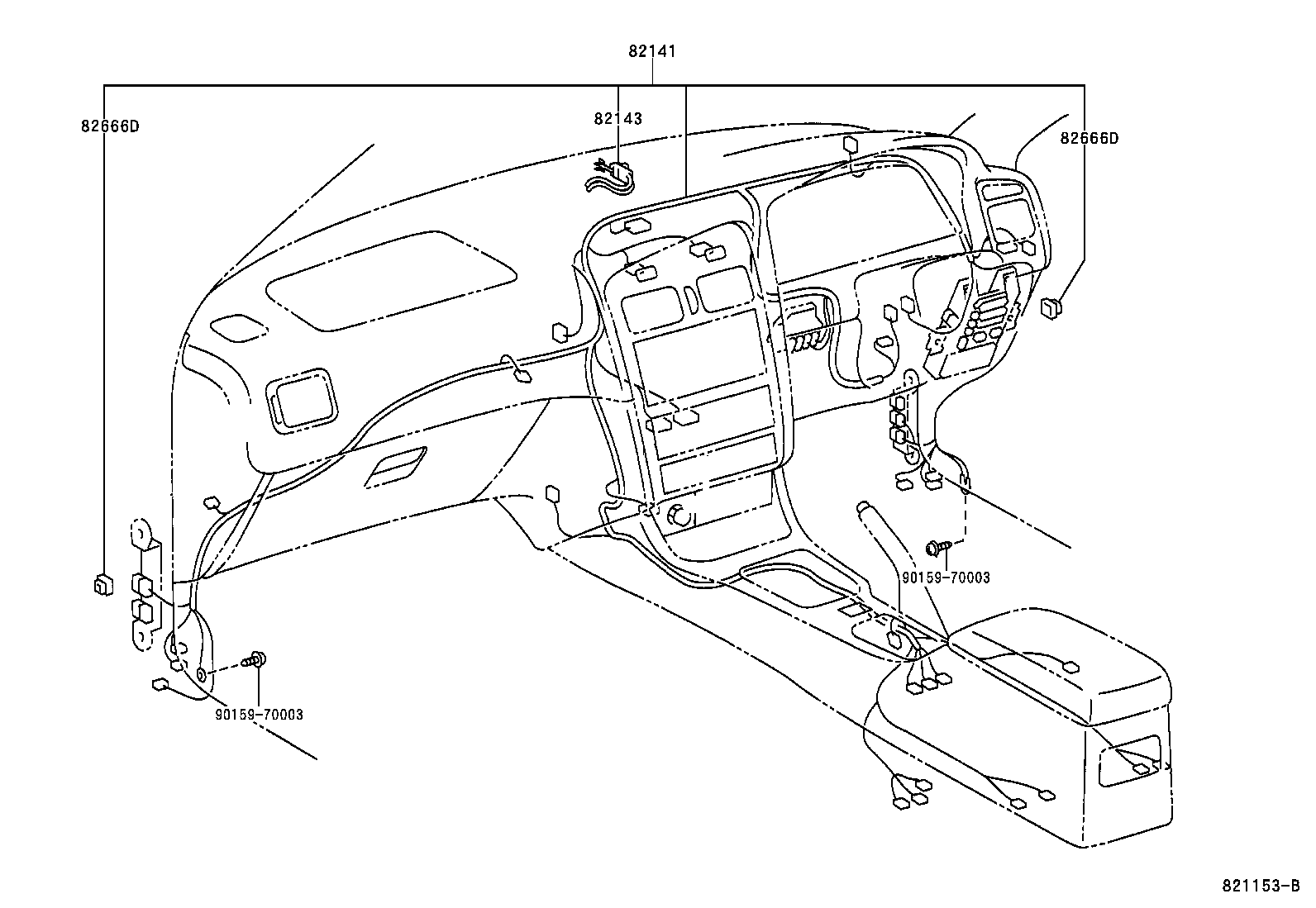

ILLUST NO. 4 OF 7(9710- )RHD

Click highlighted areas on diagram

INSTRUMENT PANEL

Part #	Description	Period	Qty
82141 - WIRE, INSTRUMENT PANEL
82141-05680	AT22#,CT220,ST220..RHD	10/1997 - 01/1999	1
82141-05681	AT22#,CDT220,CT220,ST220..RHD	01/1999 - 07/2000	1
82143 - WIRE, INSTRUMENT PANEL, NO.3
82143-05020	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	1
82666D - HOLDER, CONNECTOR NO.5
82666-05040	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	2
82666D - HOLDER, CONNECTOR NO.5
82666-05040	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	2
Common parts
90159-70003

ILLUST NO. 3 OF 7(9710- )RHD

Click highlighted areas on diagram

COWL

Part #	Description	Period	Qty
82131 - WIRE, COWL
82131-05030	AT22#..RHD..MTM	10/1997 - 07/2000	1
82210C - FUSIBLE LINK
90982-08284	AT22#,CDT220,CT220,ST220 40A,TERM.:FEMALE,GRN	10/1997 - 07/2000	1
90982-08202	AT22#,CT220,ST220 60A,TERM.:MALE,YEL	10/1997 - 07/2000	1
90982-08285	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 50A,TERM.:FEMALE,RED	10/1997 - 12/2999	1
90982-08286	AT22#,AZT220,CDT220,CT220,ST220,ZZT22# 140A,TERMINAL:MALE	10/1997 - 12/2999	1
90982-08283	AT22#,CDT220,CT220,ST220 30A,TERM.:FEMALE,PNK	10/1997 - 07/2000	1
90982-08246	AT22#,CT220,ST220 100A,TERM.:MALE,BLUE	10/1997 - 07/2000	1
82345 - DIODE
82345-20040	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	1
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	2
82666A - HOLDER, CONNECTOR NO.2
82666-05010	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	2
82666B - HOLDER, CONNECTOR NO.3
82666-05050	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	1
82666B - HOLDER, CONNECTOR NO.3
82666-05050	AT22#,AZT220,CDT220,CT220,ST220,ZZT22#	10/1997 - 12/2999	1
Common parts
90159-70003
90159-70004
90179-06026
Linked diagrams
8401

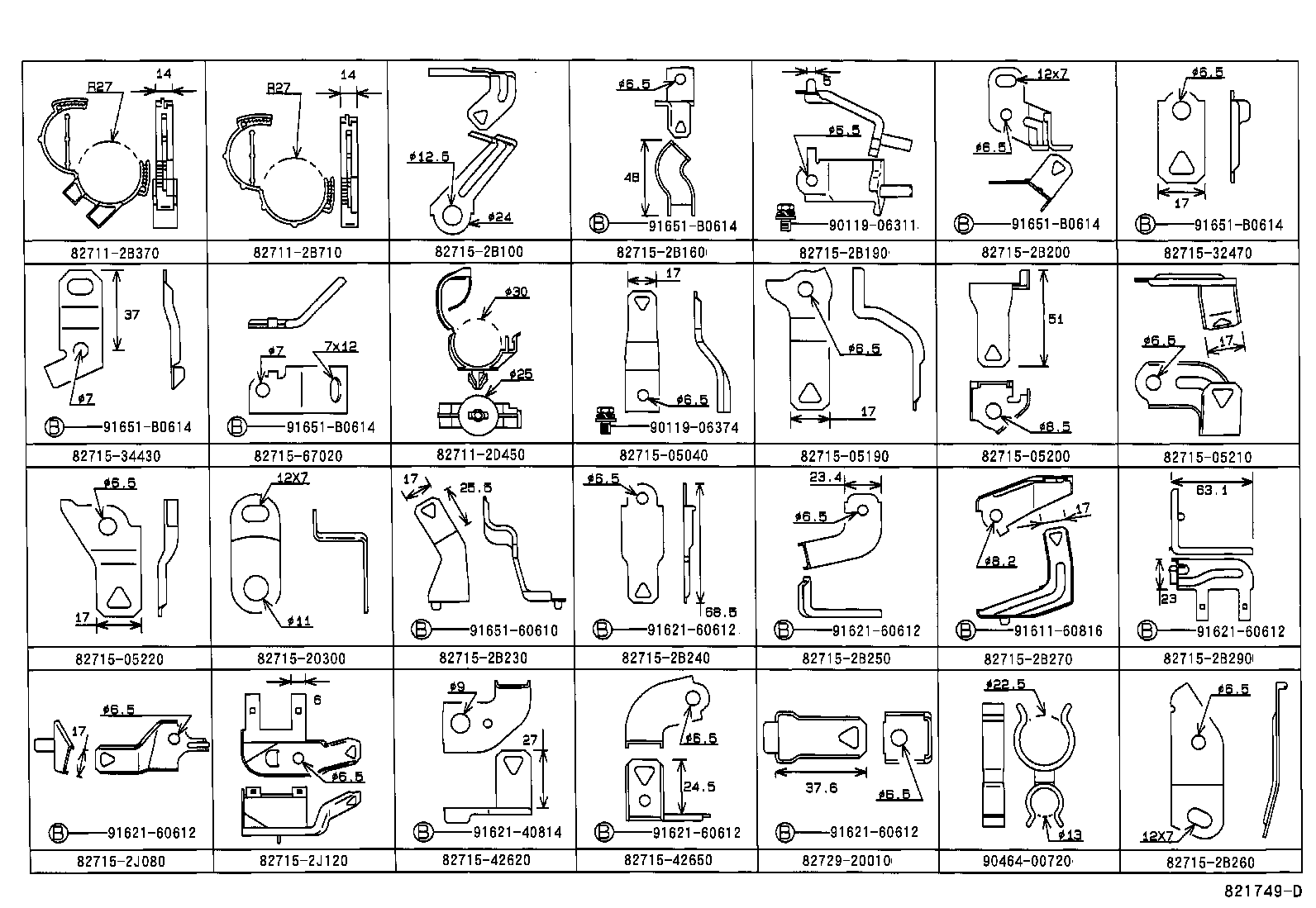

ILLUST NO. 6 OF 7(9710- )

Click highlighted areas on diagram

CLAMP & BRACKET

Part #	Description	Period	Qty	Price
Common parts
82711-2B370
82711-2B710
82711-2D450
82715-05040
82715-05190
82715-05200
82715-05210
82715-05220
82715-20300
82715-2B100
82715-2B160
82715-2B190
82715-2B200
82715-2B230
82715-2B240
82715-2B250
82715-2B260
82715-2B270
82715-2B290
82715-2J080
82715-2J120
82715-32470
82715-34430
82715-42620
82715-42650
82715-67020
82729-20010
90119-06311
90119-06374
90464-00720
91611-60816
91621-40814
91621-60612
91651-60610
91651-B0614

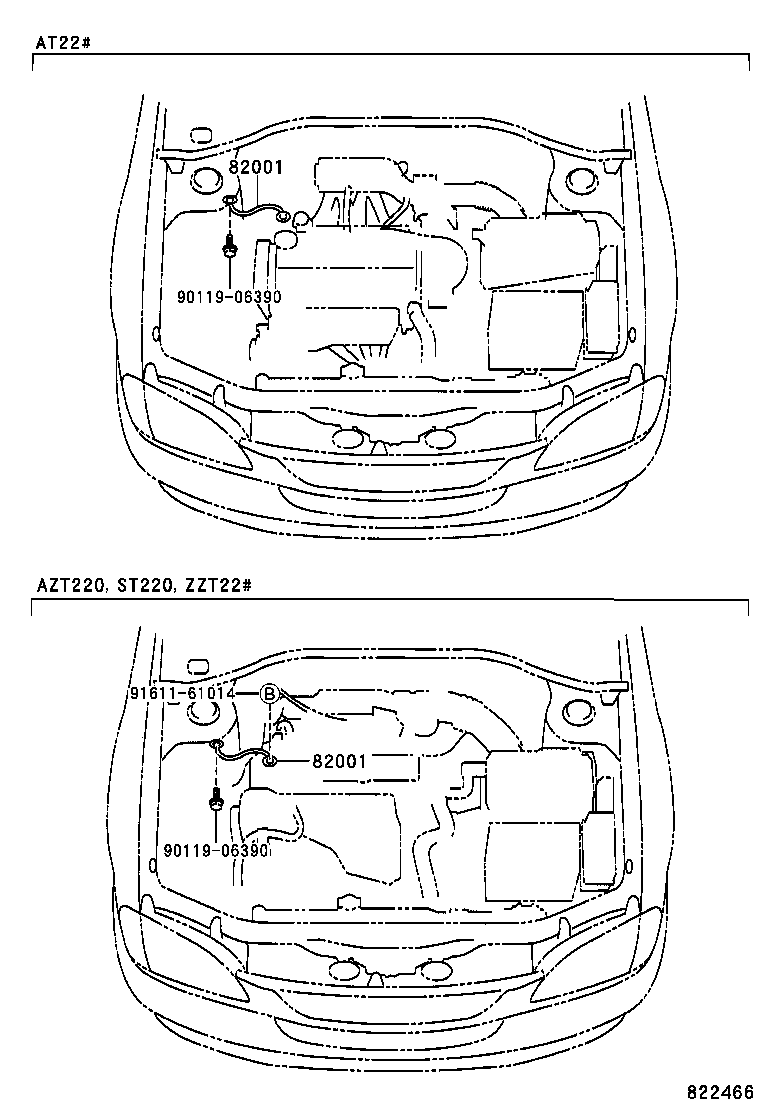

ILLUST NO. 7 OF 7(9710-0007)AT22#,ST220 ; (0007- )AZT220,ST220,ZZT22#

Click highlighted areas on diagram

CABLE BOND

Part #	Description	Period	Qty
82001 - CABLE, BOND, NO.1
90980-07341	AT22#	10/1997 - 07/2000	1
82001 - CABLE, BOND, NO.1
90980-07341	AT22#	10/1997 - 07/2000	1
Common parts
90119-06390
91611-61014
