AT221R-AWMNKW (1997)

Toyota Avensis

Production Oct 1997 - Jul 2000
Engine 7AFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9710-0007)WG

Click highlighted areas on diagram

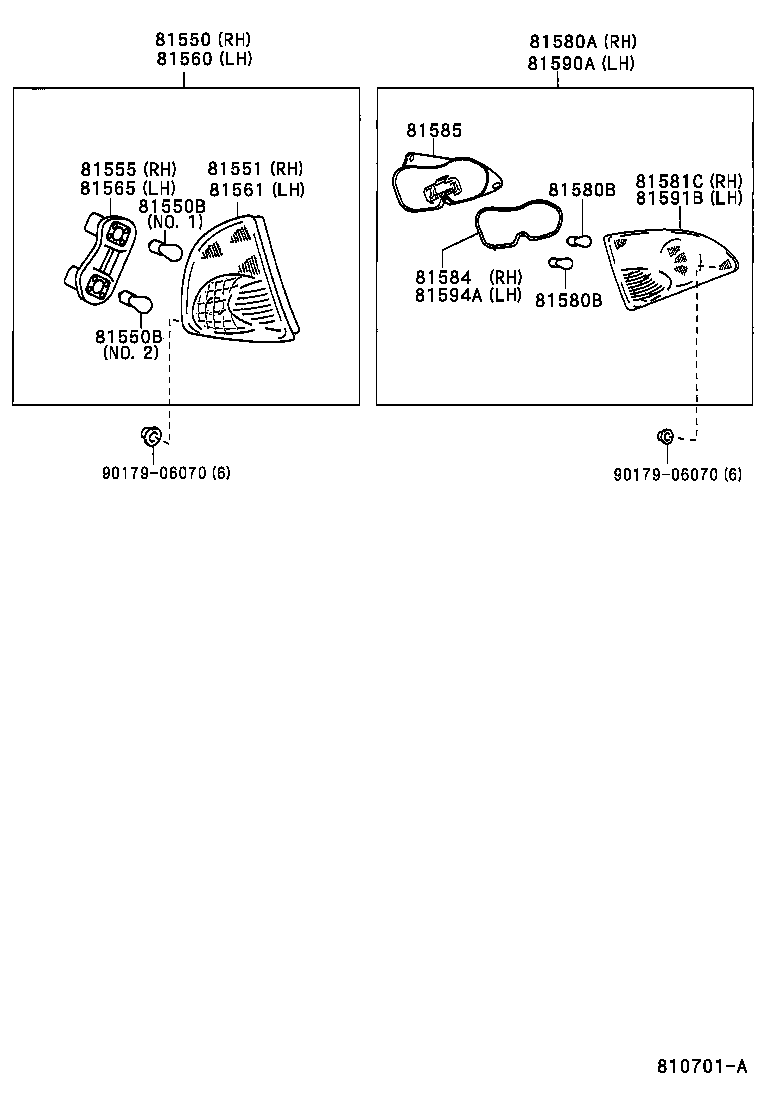

diagram 81550 81550B 81550B 81551 81555 81560 81561 81565 81580A 81580B 81580B 81581C 81584 81585 81590A 81591B 81594A 9017906070 9017906070
Part # Description Qty Price
81550 - LAMP ASSY, REAR COMBINATION, RH
81550-05080

AT22#,CDT220,CT220,ST220..WG

 1
81550B - BULB(FOR REAR COMBINATION LAMP)
90080-81034

AT22#,CDT220,CT220,ST220..WG

12V 21/5W,NO.1

 2
90080-81035

AT22#,CDT220,CT220,ST220..WG

12V 21W,NO.2

 2
81550B - BULB(FOR REAR COMBINATION LAMP)
90080-81034

AT22#,CDT220,CT220,ST220..WG

12V 21/5W,NO.1

 2
90080-81035

AT22#,CDT220,CT220,ST220..WG

12V 21W,NO.2

 2
81551 - LENS, REAR COMBINATION LAMP, RH
81551-05080

AT22#,CDT220,CT220,ST220..WG

 1
81555 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81555-05080

AT22#,CDT220,CT220,ST220..WG

 1
81560 - LAMP ASSY, REAR COMBINATION, LH
81560-05080

AT22#,CDT220,CT220,ST220..WG

 1
81561 - LENS, REAR COMBINATION LAMP, LH
81561-05080

AT22#,CDT220,CT220,ST220..WG

 1
81565 - SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
81565-05080

AT22#,CDT220,CT220,ST220..WG

 1
81580A - LAMP ASSY, REAR
81580-05070

AT22#,CDT220,CT220,ST220..WG

 1
81580B - BULB (FOR REAR LAMP)
90080-81035

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

12V 21W

 4
81580B - BULB (FOR REAR LAMP)
90080-81035

AT22#,AZT220,CDT220,CT220,ST220,ZZT22#..WG

12V 21W

 4
81581C - LENS AND BODY, REAR LAMP, RH
81581-05070

AT22#,CDT220,CT220,ST220..WG

 1
81584 - PACKING, REAR LAMP RH
81584-05070

AT22#,CDT220,CT220,ST220..WG

 1
81585 - SOCKET & WIRE, REAR LAMP
81585-05070

AT22#,CDT220,CT220,ST220..WG

 2
81590A - LAMP ASSY, REAR, LH
81590-05070

AT22#,CDT220,CT220,ST220..WG

 1
81591B - LENS AND BODY, REAR LAMP, LH
81591-05070

AT22#,CDT220,CT220,ST220..WG

 1
81594A - GASKET, REAR LAMP LH
81584-05070

AT22#,CDT220,CT220,ST220..WG

 1
Common parts
90179-06070
